Компания Shanghai Demiks Power Technology поставила высоковольтное испытательное оборудование и предоставила выездное послепродажное обслуживание для лаборатории Zhuhai Kangjin.
Shanghai Demiks Power Technology Co., Ltd. recently completed on-site after-sales service and equipment commissioning for Zhuhai Kangjin’s high-voltage electrical testing laboratory. The delivered high voltage power test equipment includes 30KVA Intelligent Power Frequency Withstand Voltage Test System, Partial Discharge Detection System, and High-Voltage Switch Dynamic Characteristic Tester. Our service engineers carried out on-site installation, wiring debugging, function verification and operation training to help Zhuhai Kangjin build a complete high-voltage type test laboratory for power apparatus.
The photos show the actual test laboratory setup: the 30KVA intelligent power frequency withstand voltage console, high voltage test transformer, lightning impulse test setup, частичный разряд detection assembly and high voltage switch dynamic characteristic tester. The whole test station is configured for full performance verification of medium & high voltage electrical products.
Product Introduction & Application Purpose

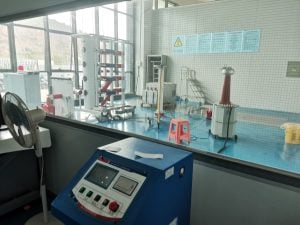

1. 30кВА Intelligent Power Frequency Withstand Voltage Test System
This AC power frequency хипот-тест system consists of intelligent control console and oil-immersed high voltage test transformer. It is widely used for power frequency withstand voltage test of high voltage switchgear, insulator, transformer, bushing, cable and other power equipment. It verifies the insulation strength of electrical components under rated power frequency high voltage, detects insulation defects, air gaps and hidden dielectric breakdown risks. Основное приложение: Factory routine test, type test for medium-high voltage electrical apparatus, insulation strength verification.

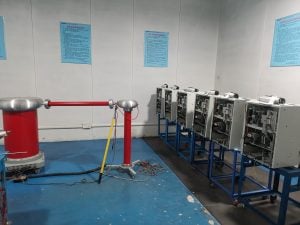

2. Partial Discharge Detection System
partial discharge (PD) test system is deployed inside the high voltage shielding test area. It detects tiny partial discharge signals inside high-voltage equipment such as switch cabinets, transformers and mutual inductors. Partial discharge is a key indicator of insulation aging and internal defects. The system captures ultra-high frequency PD signals, locates discharge source and evaluates long-term insulation reliability of power equipment. Основное приложение: Partial discharge type test for high voltage switchgear, GIS, transformers, insulation material research and third-party certification testing.

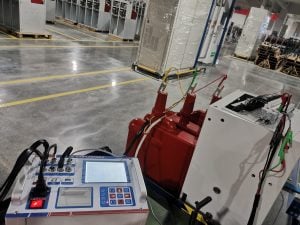

3. High-Voltage Switch Dynamic Characteristic Tester
The high voltage switch dynamic characteristic tester is portable precision measuring instrument for vacuum circuit breakers, load switches and disconnectors. It records switching time, closing & opening speed, stroke, contact bounce time and coil current curve. It evaluates the mechanical operating performance of high-voltage circuit breakers, identifies mechanical jamming, spring fatigue and contact asynchronous problems.
Основное приложение: Circuit breaker factory test, incoming inspection, maintenance test of high voltage switch-gear, mechanical characteristic type test.
Ключевые характеристики продукта
✅ 30KVA Power Frequency Withstand Voltage Test System
- Fully automatic touch screen control, automatic boost, voltage holding, step-down and over-voltage / over-current / flash-over protection
- Steady high voltage output, low waveform distortion, meet IEC & GB power frequency withstand voltage standards
- Compact control cabinet design, simple operation, built-in test data storage and report printing function
✅ Partial Discharge Detection System
- High sensitivity UHF partial discharge sensor, strong anti-interference performance, adapted for high voltage shielding laboratory
- Real-time PD waveform display, discharge spectrum analysis and PD source localization
- Compatible with high voltage switch-gear, transformer, bushing and other power apparatus испытание на частичный разряд
✅ High-Voltage Switch Dynamic Characteristic Tester
- Large touch screen display, synchronous multi-channel signal acquisition
- Measures opening/closing time, contact bounce, travel, speed and coil current automatically
- Built-in data storage, USB export of test curves and PDF reports, easy for quality archiving
- Lightweight portable design, suitable for both lab type test and on-site substation maintenance
-
Применимые отрасли
Высоковольтное распределительное устройство manufacturers, transformer factories, cable factories, electrical R&D institutes, third-party electrical certification laboratories, power grid maintenance departments, insulator and bushing manufacturers.
FAQ Section (Google People Also Ask)
Q1: What is power frequency withstand voltage test used for? A: Power frequency withstand voltage test is to apply rated AC high voltage to power equipment, check the insulation capacity and find insulation defects such as crack, air gap and contamination of insulators, cables and switchgears.
Q2: Why do we need тест на частичный разряд for high voltage switchgear? A: Partial discharge will gradually erode insulation and cause equipment failure. PD testing detects tiny internal discharge signals before breakdown, to assess the long-term insulation reliability of high voltage equipment.
Q3: What parameters can the high voltage switch dynamic tester measure? A: It tests opening time, closing time, contact bounce time, contact travel, opening/closing speed and operating coil current curve for vacuum circuit breakers and high voltage switches.
Q4: Does Shanghai Demiks provide on-site after-sales commissioning service? A: Yes. Shanghai Demiks Power Technology provides full lifecycle service including on-site installation, commissioning, technical training, maintenance and calibration for высоковольтное испытательное оборудование for customers across China and overseas.
Заключение
This Zhuhai Kangjin project is a typical case of Shanghai Demiks’ high voltage test laboratory turn-key solution. We not only supply complete high voltage test instruments including power frequency hipot system, PD detection system and circuit breaker characteristic tester, but also provide professional on-site after-sales commissioning and technical training. Shanghai Demiks Power Technology is a professional manufacturer of high voltage power testing equipment, supporting customized test system solutions for power equipment factories and third-party testing labs worldwide.
