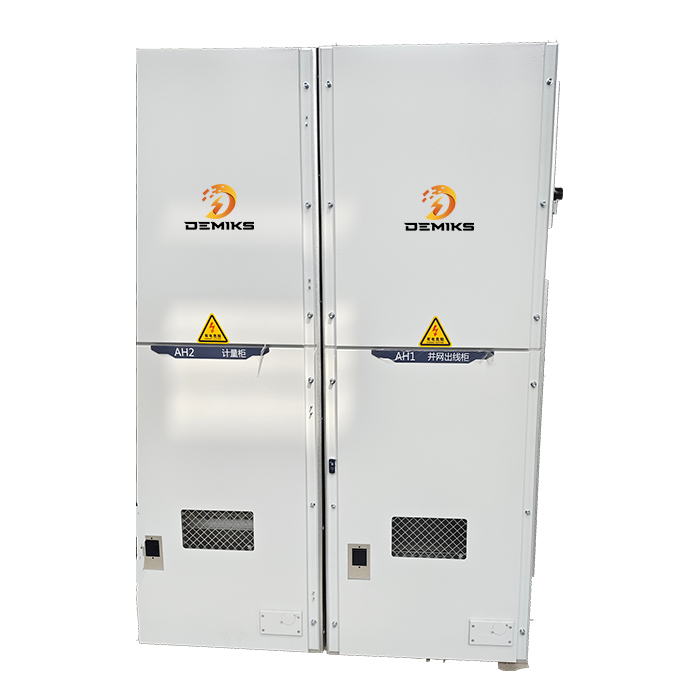

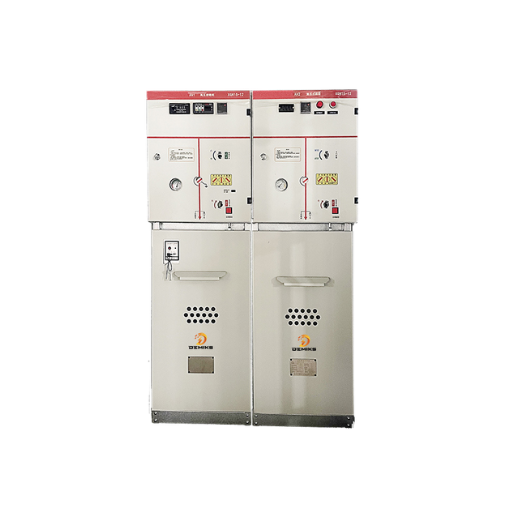

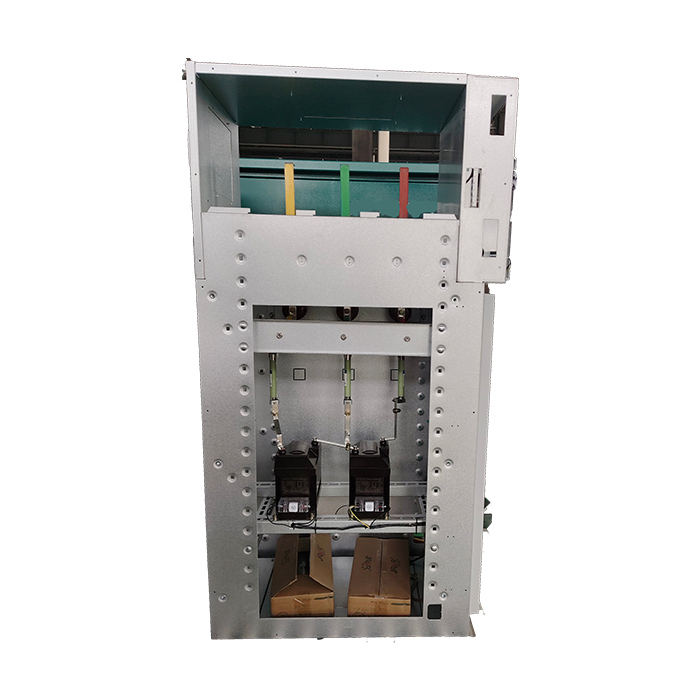

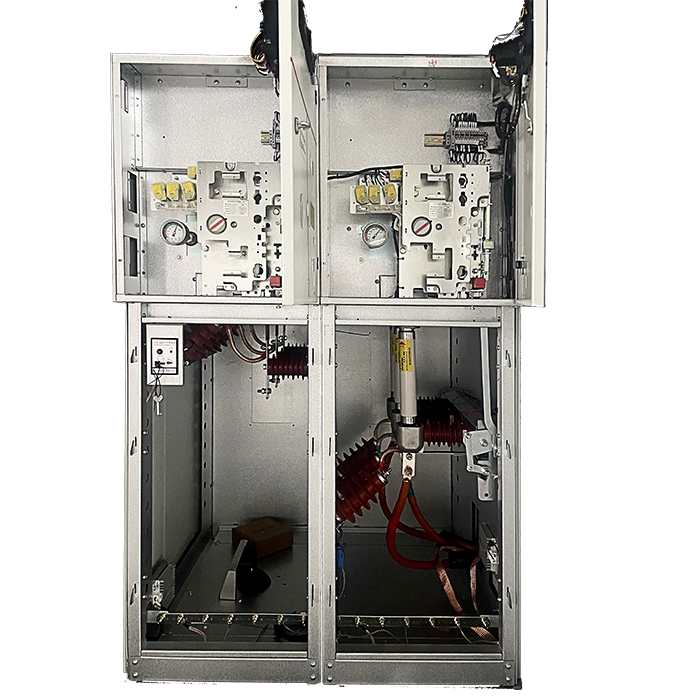

DEMIKS is an AC metal-enclosed ring network switchgear manufacturer in China, recognized for its persistence in quality and innovation. We take pride in achieving and satisfying the needs of the industry by providing reliable performance of our products, ensuring the security of your electrical systems.
| Project | Unit | Parameter |
|---|---|---|
| Rated voltage | kV | 12 |
| Rated frequency | Hz | 50 |
| Main bus rated current/fuse maximum rated current | A | 630,125 |
| Main circuit,ground loop rated short-time withstand current | kA/S | 20,3 |
| Main circuit,ground loop rated peak withstand current | kA | 50 |
| Main circuit,ground circuit rated short circuit closing current | kA | 50 |
| Load switch full capacity breaking number | times | 100 |
| Fuse breaking current | kA | 31.5,40 |
| Rated closed-loop breaking current | A | 630 |
| Rated transfer current | A | 1600 |
| Mechanical life | times | 2000 |
| 1min | kV | 42,48 |
| power frequency withstand voltage(peak)relative,ground/isolation fracture | ||
| Lightning impulse withstand voltage(peak)phase to ground,ground/isolation fracture | kV | 75,85 |
| Secondary circuit 1min power frequency withstand voltage | kV | 2 |
| Protection level | IP3X |
