Ultra-low Frequency High Voltage Generator

Ultra-low Frequency High Voltage Generator of DEMIKS is unmatched in quality. As a leading supplier and manufacturer based in China, we offer durable and dependable Ultra-low Frequency High Voltage Generators. Provided DEMIKS generators are applicable in diverse fields including, but not limited to, scientific research and industrial processes.

DVLF-301.1 Ultra-low Frequency High Voltage Generator

Accurate Data: True and correct measurements are captured through high voltage side sampling.
Comprehensive Protection: Responds to overvoltage and dual overcurrent conditions in less than 20ms.
Integrated Resistor: Removes the need for external components with the unmatched built-in high voltage protective resistor.
Stable Output: Closed-loop negative feedback systems guarantee unwavering performance.

DVLF-301.1 Ultra-low Frequency High Voltage Generator-1

DVLF-301.1 Ultra-low Frequency High Voltage Generator-2

DVLF-301.1 Ultra-low Frequency High Voltage Generator-3

DVLF-301.1 Ultra-low Frequency High Voltage Generator-4

DVLF-301.1 Ultra-low Frequency High Voltage Generator-5

DVLF-301.1 Ultra-low Frequency High Voltage Generator-6

Model No.	Rated Voltage/Current	On-Load Capacity	Power Fuse Tube	Product Structure and Weight
30/1.1	30kV (Peak Value)	0.1Hz,≤1.1µF	5A	Controller: 4kg, Booster: 25kg
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
40/1.1	40kV (Peak Value)	0.1Hz,≤1.1µF	6A	Controller: 5kg, Booster: 50kg
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
50/1.1	50kV (Peak Value)	0.1Hz,≤1.1µF	8A	Controller: 5kg, Booster: 60kg
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
60/1.1	60kV (Peak Value)	0.1Hz,≤1.1µF	10A	Controller: 8kg, Booster: 75kg
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
80/1.1	80kV (Peak Value)	0.1Hz,≤0.5µF	20A	Controller: 10kg, Booster: 85kg
		0.05Hz,≤1.0µF
		0.02Hz,≤2.5µF
90/1.1	90kV (Peak Value)	0.1Hz,≤0.5µF	20A	Controller: 10kg, Booster: 110kg
		0.05Hz,≤1.0µF
		0.02Hz,≤2.5µF

DVLF-50-1.1 Ultra-low Frequency High Voltage Generator

Accurate Data: High-voltage sampling delivers error-free current, voltage, and waveform measurements.
Overvoltage Protection: Triggers within 20 ms for system shutdown if output surpasses thresholds.
Dual Overcurrent Protection: Cutoff activates for high and low voltage within 20 ms.
Integrated Resistor: Preset high-voltage protective resistor is available, making additional external resistors unnecessary.

DVLF-50-1.1 Ultra-low Frequency High Voltage Generator-1

DVLF-50-1.1 Ultra-low Frequency High Voltage Generator-2

DVLF-50-1.1 Ultra-low Frequency High Voltage Generator-3

DVLF-50-1.1 Ultra-low Frequency High Voltage Generator-4

DVLF-50-1.1 Ultra-low Frequency High Voltage Generator-5

DVLF-50-1.1 Ultra-low Frequency High Voltage Generator-6

DVLF-80-1.1 Ultra-low Frequency High Voltage Generator

Accurate Data: High-voltage side sampling techniques provide an exact reading.
Advanced Protection: Overvoltage and dual overcurrent protective measures within 20ms of activation.
Integrated Resistor: Integrated high-voltage protective resistors remove the need for external ones.
Stable Output: Closed loop feedback guarantees constant dependability and unwavering/unstable performance.

DVLF-80-1.1 Ultra-low Frequency High Voltage Generator -1

DVLF-80-1.1 Ultra-low Frequency High Voltage Generator -2

DVLF-80-1.1 Ultra-low Frequency High Voltage Generator -3

DVLF-80-1.1 Ultra-low Frequency High Voltage Generator -4

DVLF-80-1.1 Ultra-low Frequency High Voltage Generator -5

DVLF-80-1.1 Ultra-low Frequency High Voltage Generator -6

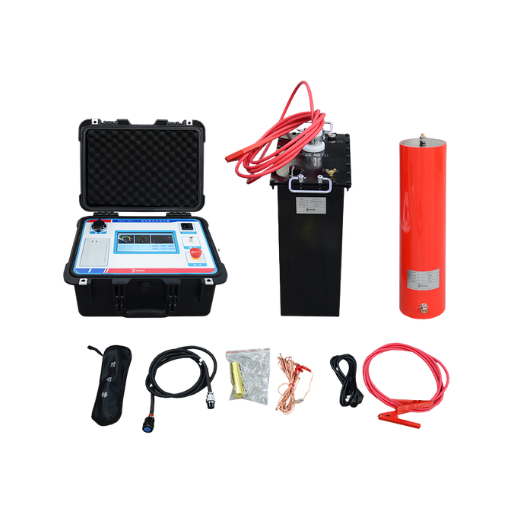

DVLF-90-1.1 Ultra-low Frequency High Voltage Generator

Over-voltage Protection: Automatic shutoff functions within 20 ms upon exceeding output limits.
Dual Overcurrent Protection: High/low voltage cut-off in under 20 ms.
Ease of Use: Small, Light, Liquid Crystal Display Printer Output.

DVLF-90-1.1 Ultra-low Frequency High Voltage Generator-1

DVLF-90-1.1 Ultra-low Frequency High Voltage Generator-2

DVLF-90-1.1 Ultra-low Frequency High Voltage Generator-3

DVLF-90-1.1 Ultra-low Frequency High Voltage Generator-4

DVLF-90-1.1 Ultra-low Frequency High Voltage Generator-5

DVLF-90-1.1 Ultra-low Frequency High Voltage Generator-6
