If you need a reputable Insulation Oil Dielectric Strength Tester, contact the China-based manufacturer DEMIKS. As one of the industry leaders, you can count on us for accuracy since our products adhere to procedure requirements. Our technical savvy and precision workmanship guarantee that all your insulation testing needs will be thoroughly met. Do not hesitate to get in touch to learn more about us and our products.

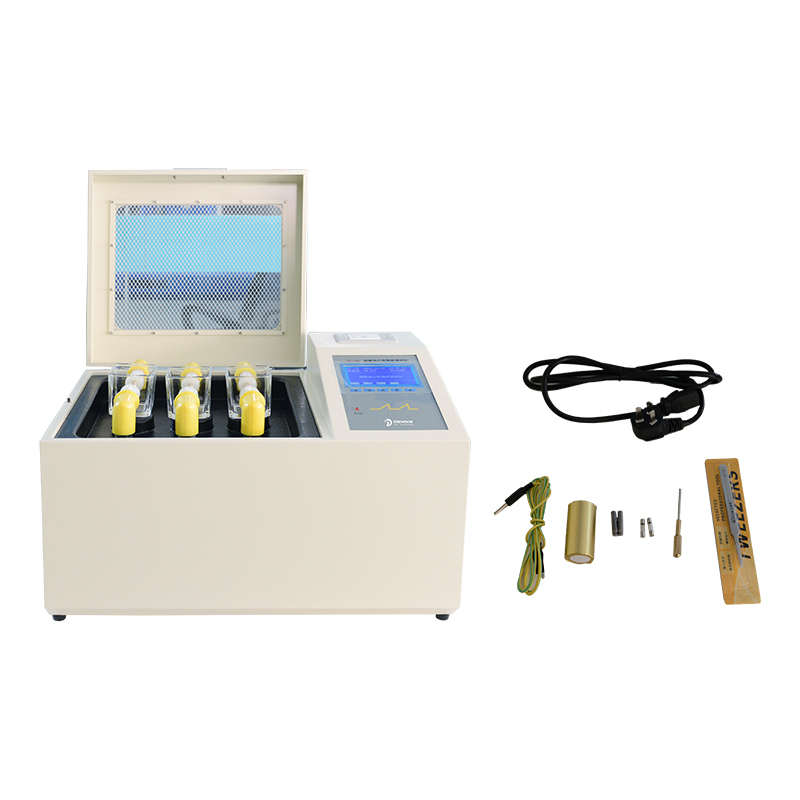

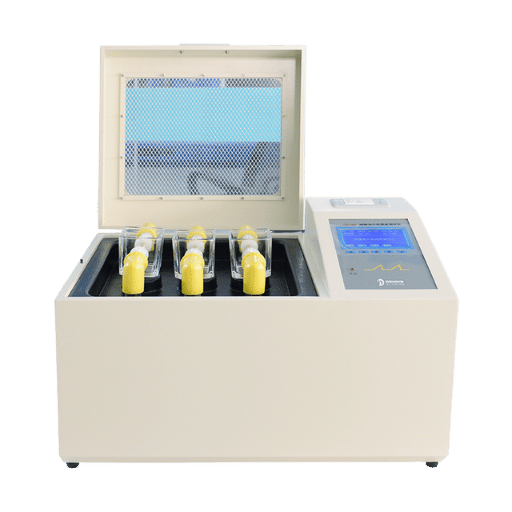

| Parameter | Specification |
|---|---|
| Transformer Capacity | 1.5 kVA |
| Voltage Rise Rate Selectable: | 2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s,Error: ±0.2 kV/s |
| Output Voltage | 0–80 kV (optional) |
| Voltage Accuracy | ±(2% of reading + 2 digits) |
| THD | <1% |
| Electrode Gap | Standard: 2.5 mm |
| Test Cycles | 6 cycles (selectable 1–6) |
| Rest Time | 5 min (adjustable 1–9 min) |
| Dimensions | 670mm × 420mm × 410mm |
| Weight | 42 kg |
| Ambient Temperature | 0–40℃ |
| Relative Humidity | ≤85% |
| Power Supply | AC 220V (±10%) |
| Power Frequency | 50 Hz (±10%) |
| Power Consumption | <200 W |

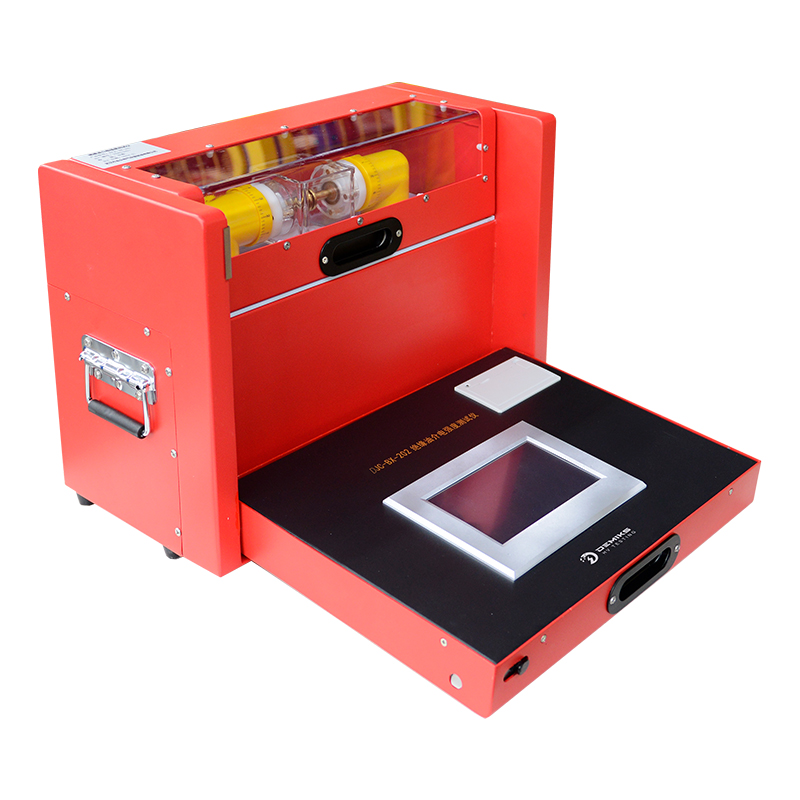

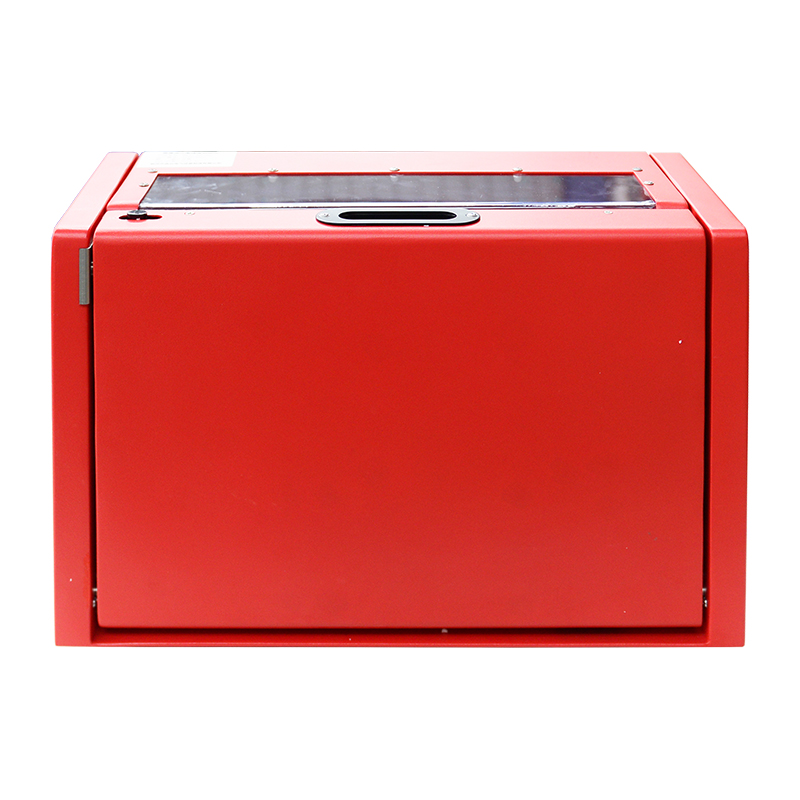

| Parameter | Specification |
|---|---|
| Booster Capacity | 1.5 kVA |
| Booster Speed | 0.5-5.0 kV/s (0.5 kV/s increments, 10 selectable ranges) |
| Output Voltage | 0-80 kV |
| Voltage Accuracy | ±(2% of reading + 2 digits) |
| THD | <1% |
| Electrode Gap | Standard 2.5 mm |
| Test Cycles 6 | (1-10 selectable) |
| Standing Time | 900 s (0-5900 s adjustable) |
| Interval Time | 300 s (0-5900 s adjustable) |
| Stirring Time | 15 s (0-250 s adjustable) |
| Display | Large-screen LCD (English interface) |
| Communication Standard | RS-232 interface |
| Dimensions | 430 × 350 × 370 mm |
| Weight | 36 kg4.1 Temperature 0-40°C |
| Humidity | ≤85% RH |
| Power Supply | AC 220V ±20% |
| Power Frequency | 50/60 Hz ±5 Hz |
| Power Consumption | <200 W |
Dielectric breakdown testers evaluate materials’ insulating properties for electrical safety in high-voltage industries. Compliance with safety regulations ensures operational efficiency and reliability and safeguards equipment within the operational threshold.
