Understanding High-Voltage Substations: The Backbone of the Power Grid

High-voltage substations are pivotal in the safe, efficient, and secure transmission of electricity over long distances. These substations are essential system components of a power grid whose core functionalities integrate the required multi-level transformation, control, and dispatching operations of electrical energy for industry and residential consumers. But why are substations so important to the functioning of a grid? This piece explains high voltage substations by analyzing their key parts, technologies, and processes while showing how they help sustain power equilibrium and address the ever-increasing needs of modern energy systems. Energy professionals as well as individuals intrigued by the infrastructure behind their electricity will find the power grid’s fundamental building block insightful.

What is a High-Voltage Substation?

The importance of a high-voltage substation begins with its role in the power grid. Electricity is transformed between surplus and deficit boundaries as it flows through the grid, ensuring smooth and efficient transfer and allocation of power. These substations act as hubs that step voltage up for long-distance sending and step it down for local distribution to homes, offices, and factories. The substations also contain major elements, for instance, transformers, circuit breakers, and protective devices which allow them to help in preserving system dependability, restoring order in system power control, and shielding the grid from faults or overriding problems. These high-voltage substations are also positioned purposely in order to sharpen the flow of electrical energy and maintain the balance of the entire electrical network.

Definition of a High-Voltage Substation

A high-voltage substation is a sharp electrical power system infrastructure that helps in transmitting and distributing electric energy over long distances. It either boosts the voltage at the generation station for long-distance transmission or reduces it at the distribution side to match the local demand. Modern substations are equipped with smart grid technologies. A substation is equipped with advanced electric and power apparatus like the modern voltage transformers, circuit breakers, busbars, class protective relays and smarter electric grid hardware capable of real time monitoring with automated control and data analytics. Relays in a substation perform the task of monitoring and controlling the entire processes while overseeing the operations and providing safety to eliminate surges, faults, or overloads during seamless grid switching. It is now possible to automated electromechanical devices like transducers with modern smart grid technologies with real time monitoring. With such monitoring, efficiency, dependability, and dynamic response to energy demands improves. This automation not only facilitates the increasing utilization of energy from renewable sources but also assists in meeting future demands.

How Does a High-Voltage Substation Work?

High voltage substations are among the most important nodes in the energy power transmission and distribution network. They enable the transformation of voltages for the optimum transmission of energy to the end-users. The process begins with high-voltage power received through transmission lines into the substation. Step-down transformers reduce this to the appropriately lower levels for local distribution. Safety and reliability during operation is ensured by switchgear equipment including circuit breakers and isolators that control, protect, and isolate electrical circuits during normal and fault situations.

Also modern high voltage substations have full supervisory control and data acquisition (SCADA) systems for monitoring and controlling the systems remotely done in real time. These technologies aid in two-way information flow enhancing the overall decision making through analytics on power flow, equipment status, and fault detection. Also the integration of different renewable energies like wind and solar into the substation adds variability in power flow. To maintain grid balance and meet strict operational requirements, reactive power compensators and voltage regulators are used to reinforce grid reactive and active power technologies for enhancement of grid compensation.

Components of a High-Voltage Substation

A high-voltage substation consists of multiple components that efficiently and reliably operate the facility. Below, I will describe each component in detail.

1. Power Transformers

Power transformer operates at high technical voltages, often exceeding 245kV in transmission substations. It is very important at voltage regulation, thus enabling stepping up or stepping down of voltages to match the distribution or transmission needs. It ensures efficient voltage handoff and interlevel transitions.

2. Circuit Breakers

They serve for system protection and fault isolation to control the epic challenges high-voltage power system presents. They have the ability to interrupt large current segments utilizing one out of three methods – oil, SF6 gas or vacuum insulation. SF6 Circuit Breaker type is probably the most utilized throughout the world due to its dielectric strength and arc quenching capabilities.

3. Disconnect Switches

Disconnect switches is done without load current interruption. In emergency cases or during maintenance procedures switch can isolate the component of the substation to ensure safe access. Parts of substations can be maintained during operation, provided that some parts are de-energized which ensures safety.

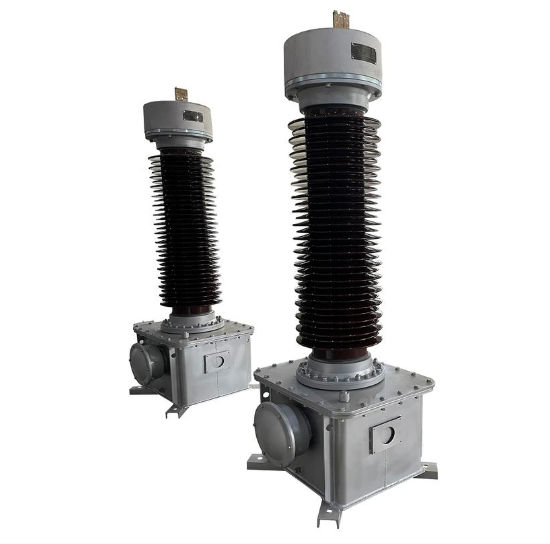

4. Instrument Transformers

These consists of voltage transformers (VTs) as well as current transformers (CTs). Current transformers (CTs) mitigate high current amounts to be metered and protected. In contrast to CTs, VTs step high-voltage circuits down to low enough levels to control them as well as function properly with the relays and measurement tools. Example of a CT includes with transformation ratio of 1000:1 making it feasible for current found in transmissions.

5. Busbars

Within a substation, busbars act as a terminus for multiple circuits to converge. They are set to high current loads and their construction materials are copper or aluminum to reduce resistive losses.

6. Surge Arresters

Surge arresters or surge protectors are widely used to prevent overvoltage at the some parts of equipment. They protect equipment inside a substation from overvoltages from lightning and surges zine oxide is used due to it’s almost a nonlinear voltage current ratio.

7. Capacitor Banks and Reactors

To improve the power factor and voltage stability a capacitor bank is utilized for reactive power compensation. Meanwhile, reactors are used to limit fault currents or control voltage fluctuation in the system.

8. Control and Relay Panels

Protective relays, supervisary control and data aquisition systems, and communitions tools needed for the automation of a substation are kept and configured in these panels. More sophisticated automations include real time telemetry microprocessor based relays that analyze dynamic measurements and determine the fault.

9. Grounding System

Personnel and equipment safety is achieved through the grounding system that diverts fault currents to the ground. High-voltage substations require a strong ground grid with low resistance (< 1 ohm).

10. Battery Systems

Control and protection systems hold imediate portable power from other devices. To keep power flowing, batteries are put into housing, utilizing either lithium or lead acid configurations with geared capacitives hold significant power for extending periods of time.

11. Communication Systems

Higher-voltage substations employ fiber optics, Ethernet networks, and SCADA systems to facilitate real-time data tracking and operational oversight of their advanced communication systems.

12. HVAC Systems

Heating, ventilation, and air conditioning (HVAC) systems actively controls the temperature, humidity, ventilation, and air-conditioning systems within an enclosure to preserve sensitive devices for optimal HVAC systems performance.

These devices are crucial for the proper functioning of the substation as they guarantee optimal and effective functioning while powering and transferring energy through the grid.

Types of Substations and Their Functions

1. Step-Up Transmission Substations

These substations are usually sited close to the power generation plants as their function is to step up power received from the generation plant to increase its efficiency for long distance transmission.

2. Step-Down Transmission Substations

They facilitate the boundary between transmission and distribution networks. As their name suggests, they reduce the high-voltage transmission level to a distribution level suitable for consumers’ use.

3. Distribution Substations

The distribution subsystem does the last step of the power delivery chain. It reduces the voltage extracted from the transmission subsystem to the level needed by household, commercial, or industrial users.

4. Switching Substations

Switching substations do not change the voltage level of power, however, they maintain flexibility and reliability within the network by cross connecting different transmission lines.

5. Converter Substations

These facilities convert DC to AC or vice versa, facilitating power transfer in specialized systems like high-voltage direct current transmission (HVDC).

Comparison of Transmission and Distribution Substations

Key Point	Transmission Substations	Distribution Substations
Voltage Level	High (69 kV to 765 kV or higher)	Low (4 kV to 35 kV)
Primary Function	Step up or step down high voltage	Step-down voltage for end-users
Location	Near power generation sites or on main grid	Closer to consumers and urban areas
Equipment Used	Transformers, breakers, reactors	Transformers, regulators, switches
Power Flow Direction	Bidirectional in some setups	Typically unidirectional
Network Connectivity	Interconnects transmission lines	Links transmission and distribution
System Complexity	High (handles large power loads)	Moderate (smaller power loads)
Maintenance Requirements	Intensive due to high power handling	Moderate due to smaller systems
Control Systems	Advanced automation and remote management	Basic to moderate control systems
Typical End Users	Power networks, industrial facilities	Residential, commercial facilities

Role of Step-down Substations in Power Distribution

Step-down substations are essential in the effective electrical energy transmission and distribution within power systems. They lower down voltage levels from high to safer levels for residential, commercial, and industrial use. High-voltage electricity meant for long-distance transmission is stepped down using step-down transformers that reduce voltage and power loss efficiently.

Advanced technologies monitored in real time and automated systems have improved operational efficiency and reliability of modern step-down substations. Digital substations with intelligent electronic devices (IEDs) can precisely control voltage levels and detect faults, thus responding to changes quickly and reducing downtime. This is critical for urban and suburban power networks where there is electric power demand.

Also, step-down substations are critical for integrating renewable energy sources into the grid. They aid in the efficient connection of distributed energy systems such as solar and wind farms by controlling and counteracting the voltages, as well as matching the power outputs. Their contributions toward maintaining balance in the grid dynamic system as well as stability make possible the safe and reliable delivery of electricity to users enhances the need for energy solutions.

How Do Transformers Work in High-Voltage Substations?

The operation of transformers in high-voltage substations involves alteration of voltage levels to improve power transmission and distribution. For efficient long-distance energy transmission, they reduce energy loss by stepping up the voltage, and for consumer delivery, they step down the voltage using electromagnetic induction. A transformer has primary and secondary windings on a core. The secondary winding’s current is induced from the primary winding’s high voltage flowing current which generates a magnetic field in the core. The amount of induced voltage, determines the ratio of the number of turns of coil to the primary coil, and whether the voltage is stepped up or down. This process ensures optimal energy transfer and grid reliability.

Understanding Power Transformers

Every power transformer has key elements that work together to ensure efficient functioning. One of the components is the transformer core, which contains the magnetic core and is made from steel sheets to minimize eddy current losses. Transformers also use windings made from conductive copper or aluminum which is insulated to manage flow of electric current.

Transformers employ insulating oil or solid oil systems to prevent electrical leakage and enhance safety. They also feature natural or forced air, oil circulation, or other cooling systems that avoid overheating by dissipating heat. Additionally, advanced temperature sensors and gas analyzers enable real-time condition evaluation and predictive maintenance. These innovations bolster modern power grids and strengthen fault avoidance by providing advanced operational reliability.

How Transformers Affect Power Supply Stability

Transformers are crucial to the management of energy transmission since they reduce energy losses when the voltage is both minimized and maximized during the transfer of energy. Their ability to reduce energy losses is particularly evident when voltage levels are increased for long-distance transmission and decreased for end-user consumption; this sharp reduction in resistive losses contributes towards an improved effective system. The real-time responsiveness of modern transformers to demand fluctuations thanks to on-load tap changers (OLTC) and automated voltage regulators is an added advantage. Through the integration of smart grid technologies, transformers can now communicate with grid systems, enabling them to balance load sharing, provide support for the incorporation of renewable energy sources, and make additional contributions towards stabilizing the power supply. All the above emphasize the critical role that transformers play in enabling the modern grid.

What Is the Role of Circuit Breakers in Substations?

The substational Circuit Breakers are of great importance in the protection and reliability of the electrical apparatus. Their major role is to break the current circuit when there is flow of electricity during faults like short circuit or overload, in order to avoid damage to apparatus and system equilibrium. Because they enable the disconnection of damaged parts of the grid, the circuit breakers assist in reducing the number of outages and also eliminate the chances of cascading failures. Furthermore, they make it possible to safely carry out maintenance and repairs by de-energizing designated portions of the substation, enabling targeted maintenance without disrupting the entire network. It is for these reasons that circuit breakers are modern operation substations irreplaceable elements.

Function of Circuit Breakers in High-Voltage Substations

Air circuit breakers, oil circuit breakers, and vacuum circuit breakers (VCBs) are examples of modern circuit breakers. These differ from each other based on how the circuit is opened and how the arc is quenched. SF6 (sulfur hexafluoride) circuit breakers have become the go to choice for high voltage substations due to their exceptional insulation, arc-interruption capabilities, and safety features. SF6 gas has superior dielectric strength and is thermally stable, enabling rapid fault current interruption under even very severe conditions.

The grid reliability is maintained with the performance metrics of breakers, including their breaking capacity, acting time, and mechanical life. Additionally, modern high-voltage circuit breakers are able to monitor greatly exceeding a voltage of 245 kV, interrupting fault currents in the range of several tens of kiloamperes. State-of-the-art systems now feature maintenance agnostics which can help manage failures by analyzing parameters such as contact wear and gas pressure during real-time monitoring.

Integration of digital control systems and intelligent electronic devices (IEDs) have allowed the modern circuit breakers to evolve from mere components to advanced nodes in the automation system of the grid. This development facilitates remote access for operations, diagnostics of faults, and interoperability with the SCADA systems in real time which enhances safety and operational efficiency as a whole.

Types of Circuit Breakers Used in Electrical Substations

Different types of circuit breakers for electrical substations have different functions and serve different voltage levels. The main types are defined as follows:

1. Air Circuit Breakers (ACBs)

ACBs are Air Circuit Breakers and use air as their arc-quenching medium. These breakers are robust and designed for indoor installation, in prevalent use for low to medium voltage applications. ACBs are easier to maintain, and have high short-time current ratings.

2. Vacuum Circuit Breakers (VCBs)

Ideal for medium voltage systems, VCBs employ a vacuum environment for arc extinction. These types of breakers also contain no arc-extinguishing gases, leading to increased cleanliness, durability, and minimal required maintenance.

3. SF₆ Circuit Breakers

SF₆ circuit breakers are common in extra high voltage (EHV) and ultra high voltage (UHV) systems. SF₆ gas serves the dual purpose of insulation and arc-extinguishing medium. These gas insulated breakers have very high dielectric strengths and are capable of rapid arc extinction which is critical in modern high reliability substations.

4. Oil Circuit Breakers (OCBs)

Historically, oil circuit breakers (OCB) were commonly used in mid and high voltage systems where oil served as the arc-suppressing medium. While their popularity has declined due to maintenance and environmental concerns, OCBs are still functional in older substations.

5. Hybrid Circuit Breakers

Modern technology has vacuums and SF₆ interrupters incorporated into the new hybrid circuit breakers with advanced monitoring and control systems, thus integrating both traditional and modern technologies. Their increasing reliability and safety in smart grid technologies makes them adherently advantageous.

The evolution of grid technologies often integrate sustainabilitiy and lifecycle cost analysis. However, every type of circuit breaker is still assessed on factors like, system reliability, the environmental impact, operational requirements, modern energy demands and the voltage rating.

How Circuit Breakers Enhance Safety in Power Systems

Beneficial for the structured and orderly operation of electrical power systems, circuit breakers protect other devices. They safeguard assets and guarantee the safety of personnel and infrastructures. Circuit breakers diminishing fault currents of several thousand amperes within microseconds increase protection against fires, equipment damages, power interruptions, and other critical services outages. In combination with microprocessor-based control systems, modern circuit breakers provide real-time monitoring and diagnostics, enhancing situational awareness. Overloads, short circuits, and ground faults can be detected with high precision, and the affected portions are automatically isolated, ensuring uninterrupted operation of other sections of the power grid.

Improvements such as the use of SF6 gas insulation and vacuum techniques for arc interruption have improved efficiency, reduced environmental impact, and increased efficacy. Integrating algorithms for maintenance predictive analytics assists with fault detection. This allows for component-specific maintenance which improves system redundancy as well as ensuring the full life of all components. Protecting and automating the system makes contemporary power networks safe while circuit breakers ensure their uninterrupted functionality.

How Are High-Voltage Substations Designed?

High-voltage substations are critical for the safe and reliable management of energy resources given their importance in streamlining energy transmission and distribution. Site selection is an important factor during the design phase because it directly impacts energy access and determines the ecological footprint of the facility. Key apparatus such as transformers, circuit breakers, busbars, and disconnect switches are placed with regard to appropriate clearances to minimize energy losses, enhance operational efficiency, and maximize overall system efficiency. State-of-the-art Control and protection systems are installed to oversee and manage action-based response monitoring concerning defined faults. Equipment and personnel are safeguarded through grounded barriers and physical shields to enhance safety. Modular designs are common in modern substations since they provide scalability and flexible allowance for future enhancements.

Key Considerations in Substation Design

1. Location and Site Selection

For electrical systems, they must consider placing substations closer to urban centers because it reduces transmission losses. Substations must balance being away from floods and unstable areas while maintaining efficiency, so urban centers are great. Reducing transmission losses up to 10% is very beneficial.

2. Electrical and Mechanical Layout

Accessibility, safety, and operational efficiency are crucial considerations in layout design. All parts should be positioned, from transformer to grid and busbars, to both allow easy maintenance and minimize the chance of electrical faults. A Gas Insulated Substation (GIS) is more compact (around 90% smaller) than an Air Insulated Substation (AIS), making it better suited for urban settings.

3. System Voltage and Equipment Ratings

Substations are meant to operate at set voltages like, 132 kV or 400 kV, depending on the power system. This helps to ensure integration with the upstream and downstream network and affording protection to the equipment from unnecessary voltage stress. It is advisable to overrate the system within the range of 15%-20% to future proof the system in case demand rises later.

4. Grounding System Design

Effective grounding is critical for personnel safety and protecting equipment. The grounding grid must be designed to contain step and touch voltages within controlled limits (typically under 50 V for humans). Soil resistivity is critical in this design, and values under 10 ohm-m are optimal.

5. Protection and Control Systems

In case of system faults, advanced protection systems are critical for detection and isolation to prevent cascading failures. Enhanced spatial and temporal data processing capability systems such as SCADA with high-speed tripping digital relays enable remote control and real-time monitoring. Digital protection systems are estimated to reduce response times by 60%, based on data from IEEE.

Taking into account the mentioned factors enables substation designs to improve their safety, reliability, efficiency, and their responsiveness to current and prospective power system requirements.

Importance of Electrical Equipment in Substation Design

Electrical systems are indispensable concerning a substation’s construction since they enable effective transmission and distribution of power. Their primary elements like constituents such as transformers, breakers, disconnect switches, as well as busbars add value to the effective functioning and safety of the power network. Take modern transformers as an example. They have new core materials and sophisticated cooling technologies that modernized the power sector by lowering no-load losses. In addition, circuit breakers with vacuum or SF6 gas insulation provide reliable fault interruption to maintain system stability. Moreover, high-quality disconnect switches add value by providing secure isolation during maintenance, thus reducing downtime.

The functionality of substation equipment has changed due to recent advances in materials science and digital technologies. Industry research indicates the installation of advanced composite insulators has increased the durability of substation assets in highly polluted or harsh weather environments. Also, busbar systems are more scalable for future load growth due to their modular and flexible designs. Under planned maintenance frameworks, smart sensors and IoT-enabled devices provide real-time data, leading to advanced predictive strategies and early fault detection. This reduces the risk of unplanned outages by roughly 40%. Thus, the latest electrical equipment helps ensure rigorous standards for safety, reliability, and efficiency, adapting to the evolving energy demands.

Challenges and Innovations in High Voltage Substation Technology

Integration of renewable energy sources into conventional grid systems poses one of the most significant problems in high-voltage substation technology due to the unpredictable output from renewables. Management of the grid must be done smartly and with sophisticated technology in order to maintain stability. Increasingly outdated systems and the infrastructure as a whole raises safety concerns as well as performance problems, which requires big money investments into modernization or a complete overhaul. In control and communication systems, the critical impact of cyber attack factors mandates the implementation of robust substation cybersecurity measures to protect fundamental controls and essential intrusion measures.

A variety of strategies have been developed in response to the problems above, such as the development of digital substations, which improve productivity through remote control real-time monitoring, as well as remote command capabilities, through the use of intelligent electronic devices (IEDs) and real-time data analytics. Substation productivity can also be achieved with High-voltage direct current (HVDC) systems as they strengthen energy transmission efficiency in long routes. Other advancements include advancements in substational auxiliary systems shrinking footprints through better insulation materials, as well as compact equipment designs improving reliability in space constrained urban environments. All the solutions provided lead to enhanced grid infrastructural resilience and adaptability.

Recent Innovations in Substation Technology

1. Digital Substations

The efficiency and operations of substations have been improved with the digital transformation, making them possible to operate smarter and more efficiently. Improved analytics for predictive maintenance and better overall grid reliability have decreased operations costs by up to 20%, as substations do now estimate. The use of intelligent electronic devices (IED) along with protocols such as IEC 61850 allow communication and automation within the substation, increasing automation.

2. Gas-Insulated Substations (GIS)

Most urban areas with high demand tend to prefer using them because of their compact design along with high reliability. These types of GIS systems use air-insulated substations, but rather use sulfur hexafluoride (SF6) gas, which serves as an incomplete insulating medium, reducing the space usage by almost 70%. This also reduces maintenance requirements with improved fault tolerance.

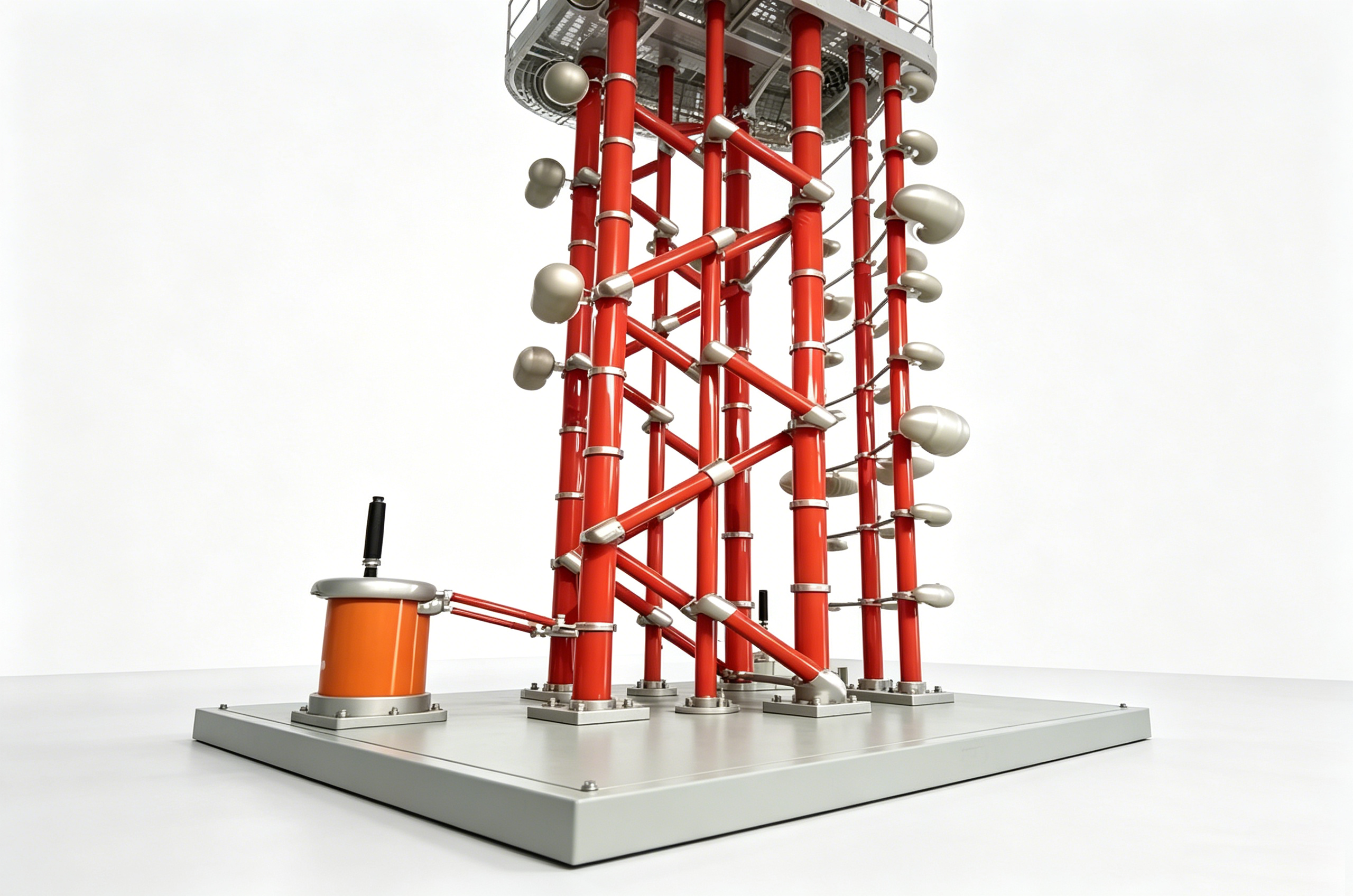

3. High-Voltage Direct Current (HVDC) Systems

When looking to upgrade a power grid’s infrastructure, engineers will understand that integrating HVDC substations yields the best results for long range transmittance; whith the added benefit of lowering energy output losses for over a 1000 km radius to 3% while surpassing competition’s 8% loss rate. This loss-effective configuration allows for renewable energy sources to be maximized from remote locations such as offshore wind farms.

4. Hybrid Substations

The key attributes of air-insulated and gas-insulated technology are encompassed in hybrid substations. Moreover, these substations are cost-effective. These substations support easy integration with renewable energy systems while minimizing environmental impact.

5. Advanced Protection and Monitoring Systems

Modern substations have incorporated advanced protection technologies enabling real-time, fault detection, asset health monitoring, and event recording. With these new integrated systems, data is being processed with AI and machine learning, providing utility companies the ability to forecast failures and optimize maintenance schedules. Utility companies have reported a 15-30% decrease in downtime because of these systems.

Smart grids have become available because of modernized technology which allows for a diverse range of power networks to be more adaptable, sustainable, and resilient to differing levels of operational stress. Transforming substation infrastructures has never been easier while achieving higher efficiency and effectiveness.

Future Trends in High-Voltage Substation Development

The continuous development of high-voltage substations is now being shaped by the latest technologies which improve efficiency, reliability, and sustainability. One of the trends is the contemporary digital substations, which use process bus systems, IEC 61850 communication standards, and digital instrument transformers. These changes reduce copper wiring and improve data transfer considerably.

The adoption of alternative insulation technologies, such as SF6 free switchgear, also stands out. With a global focus on lowering greenhouse emissions, utilities are turning to more environmentally friendly alternatives such as solid or gaseous mixtures that perform comparably but lack the negative engineering impact . Moreover, AI and big data-powered predictive maintenance is anticipated to become the new norm, allowing for condition-based equipment monitoring, thus dramatically increasing asset life.

In addition, the growing complexity of the functions of a substation due to the integration of new distributed energy resources (DERs) is changing with the addition of renewables. More advanced technologies such as dynamic load management and modular substations are now integrating with the older grids and they are able to incorporate solar, wind, and battery storage systems for more decentralized generation. More attention is also being paid to cybersecurity as enhanced threat detection systems and strong encryption keys are integrated to protect these critical cyber infrastructures.

Collectively, these developments suggest that high voltage substations will focus on adaptive capacity to shifting energy needs, evolving ecological concerns, adoption of new technologies, and the continued evolution of global power systems.

Reference Sources

1. Future electricity demand and grid connections of electric road systems for heavy transport – Discusses the role of transmission substations in transforming voltages for electrical grids.

2. Evaluating Future Challenges and Possibilities for Electrical Substations – Explores high-voltage technology and the challenges in understanding and managing electrical substations.

3. The Electric Vehicle Challenge for the Distribution Electricity Grid – Examines the impact of electric vehicles on substations and grid capacity.

4. Viability of Capacitor-Coupled Substations on Uganda’s Electricity Transmission Network – Focuses on capacitor-coupled substations and their role in improving electricity access and reducing high voltage transmission issues.

5. The analysis of the use of intelligent electric networks and Smart Grid systems – Discusses smart grid systems and their ability to maintain voltage levels and quality in substations.

Frequently Asked Questions (FAQs)

Q: What is a high-voltage substation and why is it important for the electrical grid?

A: A high-voltage substation is a facility that transforms electricity from high transmission voltages to lower voltage levels suitable for distribution. These substations are crucial for the transmission and distribution of electricity, allowing power generated by power plants to be efficiently transmitted over long distances and then distributed to local distribution networks.

Q: How do high-voltage substations interact with power plants?

A: High-voltage substations are connected to power plants and play a vital role in managing the flow of electricity. They increase the voltage of electricity generated at power plants for efficient transmission over long distances, ensuring minimal energy loss during the journey to end users.

Q: What components are typically found in a high-voltage substation?

A: A high-voltage substation typically includes substation transformers, circuit breakers, disconnect switches, and protective relays. These components work together to manage the flow of electricity, control voltage levels, and protect the electrical grid from faults.

Q: What role do substation transformers play in high-voltage substations?

A: Substation transformers are essential for decreasing the voltage of electricity from high transmission voltages to distribution voltages. This process makes it safe and manageable for local distribution networks to deliver electricity to homes and businesses.

Q: How is electricity transmitted from a high-voltage substation to end users?

A: After electricity enters a substation, it is transformed to lower voltages by substation transformers. It is then sent through distribution lines that carry the electricity at distribution voltages to consumers, ensuring its safe and effective use.

Q: What is a mobile substation and when is it used?

A: A mobile substation is a portable substation designed to provide temporary power supply or replace damaged infrastructure. It is equipped to handle high-voltage electricity and can be deployed quickly to restore power during emergencies or maintenance periods.

Q: Why is it essential to manage voltage levels in high-voltage substations?

A: Managing voltage levels in high-voltage substations is essential to ensure the safety and reliability of the electrical grid. High transmission voltages can pose hazards, so it is crucial to decrease the voltage before it enters distribution lines to protect both equipment and consumers.

Q: What are the safety measures in place at high-voltage substations?

A: Safety measures at high-voltage substations include physical barriers, warning signs, and restricted access. Additionally, personnel must follow strict safety protocols to prevent electrical hazards associated with high-voltage operations.

Q: How does a high-voltage substation affect the efficiency of the electrical grid?

A: A high-voltage substation enhances the efficiency of the electrical grid by facilitating the transmission of electricity over long distances with minimal losses. By effectively managing voltage levels, substations ensure that power is delivered reliably and efficiently to consumers.
