Mastering the Earth Ground Resistance Tester: Essential Insights and Tips

Efficient grounding systems are critical for ensuring the safety and reliability of electrical installations, making the Earth Ground Resistance Tester an indispensable tool for professionals in the field. This article is designed to serve as your comprehensive guide to mastering the use of this specialized instrument, equipping you with the knowledge and techniques necessary to achieve accurate and dependable measurements. From understanding the underlying principles of ground resistance testing to addressing common challenges encountered in various field conditions, we’ll provide actionable insights to help you optimize your testing procedures. Whether you’re a seasoned engineer or a technician looking to enhance your skills, this guide will empower you to leverage the Earth Ground Resistance Tester with confidence and precision. Read on to uncover essential strategies and expert tips that will elevate your testing practices to the next level.

What is Earth Ground Resistance and Why is it Important?

Earth ground resistance refers to the measure of how effectively the earth ground system can conduct electrical current into the earth. This is crucial for ensuring the safety and reliability of electrical systems by preventing hazardous voltages, reducing the risk of electrical shock, and protecting equipment from damage caused by surges or faults. A low ground resistance ensures that excess electrical energy, such as from lightning or fault currents, is safely dissipated into the ground, minimizing potential harm to people and infrastructure. Proper grounding is an essential component of any electrical safety system.

Understanding Ground Resistance

Factors Affecting Ground Resistance

Ground resistance is primarily influenced by soil resistivity, the depth and type of ground electrodes, and the moisture content of the soil. Soil resistivity—measured in ohm-meters—is a critical factor, varying significantly depending on soil composition, temperature, and density. Lower soil resistivity, often found in clay or loam soils, supports better grounding, while dry, sandy, or rocky soils tend to increase resistance. The length, diameter, and material of grounding electrodes also play a vital role; deeper and longer electrodes made of highly conductive materials like copper are more effective in dissipating fault currents. Additionally, a proper moisture level in the soil ensures better conductivity, thereby reducing resistance.

Measuring Ground Resistance

To evaluate ground resistance, techniques such as the fall-of-potential method, the clamp-on method, and the Wenner four-pin method are commonly employed, each suitable for specific applications. The fall-of-potential method involves driving auxiliary electrodes into the ground and measuring resistance at different points, providing a reliable and precise assessment. Clamp-on testers allow for non-intrusive measurements but may be less accurate if surrounding conditions are suboptimal. Measuring ground resistance regularly is critical for maintaining safe and effective grounding systems, especially in systems exposed to variable environmental conditions.

The Role of an Earth Ground in Electrical Systems

The earth ground serves several critical functions within electrical systems, including:

• Safety Protection: By providing a low-resistance path to the earth, the ground prevents dangerous voltages from accumulating on conductive surfaces during faults or lightning strikes, reducing the risk of electric shock.
• Equipment Protection: Proper grounding helps safeguard electrical equipment from voltage surges and short circuits, minimizing damage and ensuring longevity.
• Voltage Stabilization: The earth ground acts as a reference point for consistent voltage levels in electrical systems, ensuring stable operation and reducing fluctuations caused by external interference.
• Overvoltage Mitigation: Effective grounding systems dissipate transient overvoltages caused by lightning strikes or switching surges, protecting both infrastructure and connected devices.
• Electromagnetic Interference (EMI) Reduction: A robust grounding system reduces electromagnetic interference, preventing signal disruption in sensitive electronic equipment.
• Fault Current Path: It provides a controlled path for fault currents to return to the system neutral or earth, ensuring that protective devices such as circuit breakers and fuses operate correctly and efficiently.

Common Issues with Ground Resistance

1. High Soil Resistivity

One of the primary contributors to elevated ground resistance is high soil resistivity. Factors such as dry soil, rocky terrain, or sand can impede proper grounding. The resistivity of soil typically ranges between 1 to 1000 Ω·m, depending on composition and moisture content. For effective grounding, resistivity should ideally be below 100 Ω·m in most cases.

2. Insufficient Grounding Electrode Depth

Grounding electrodes that are not installed to adequate depths may result in poor contact with conductive soil layers. To mitigate this, electrodes should often be installed at depths greater than 8 feet (2.4 meters) where possible, depending on soil conditions, to ensure stable performance.

3. Corrosion of Grounding Components

Over time, grounding rods and connections can corrode, especially in areas with acidic or saline soil. This compromises their conductivity. The use of corrosion-resistant materials such as copper or galvanized steel and periodic inspection are essential to maintaining low resistance.

4. Improper Bonding of Grounding System Elements

A poorly bonded grounding system can lead to uneven current distribution and higher overall resistance. Bonding connections should exhibit impedance levels as low as 1 milliohm to ensure system efficiency.

5. Seasonal and Environmental Variability

Changes in soil moisture, freezing temperatures, or droughts can alter ground resistance significantly. It is advisable to measure ground resistance regularly, with a target resistance of below 5 ohms in most electrical systems to maintain compliance with industry standards such as IEEE 80.

Addressing these issues through proper design, installation, and maintenance ensures a reliable and safe grounding system for both equipment and personnel.

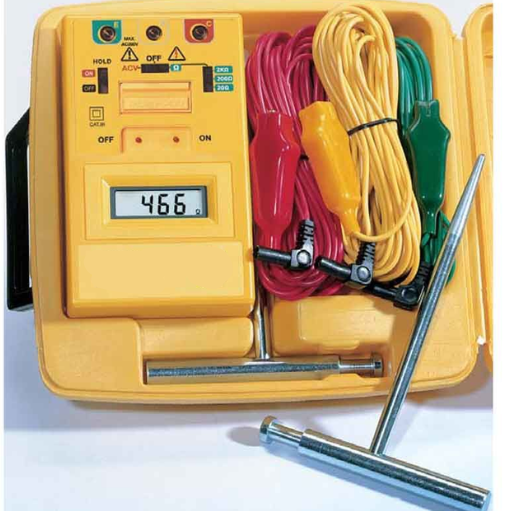

How to Measure Earth Ground Resistance Effectively

To measure earth ground resistance effectively, several proven methods can be employed, each suited to specific circumstances:

1. Fall-of-Potential Method: This is the most common and reliable method for accurately measuring ground resistance. It involves placing two auxiliary electrodes (potential and current) in the soil at specific distances from the grounding electrode. A precise resistance reading is obtained by measuring the voltage drop for a known current applied between the grounding electrode and the current electrode.
2. Clamp-On Method: This technique is suitable for systems with loop grounding where disconnecting the system is not feasible. A clamp-on meter measures resistance by inducing a current and measuring its response, providing quick results without disrupting operations.
3. Selective Measurement Method: By using a combination of current clamps and test leads on specific grounding points, this method isolates the resistance of a single ground electrode in a network without requiring disconnection.
4. 4-Pole Method: Typically utilized for soil resistivity testing, this method uses four probes inserted into the ground to measure resistance. It provides an accurate assessment of soil conditions, vital for designing grounding systems.

Each technique requires well-calibrated equipment and adherence to manufacturer guidelines to ensure accuracy. Environmental factors such as soil type, moisture, and temperature should also be considered during measurements to obtain representative results. Routine testing and documentation are critical for long-term system safety.

Using a Ground Resistance Meter

A ground resistance meter is a specialized tool that measures the resistance between a grounding system and the Earth to ensure safe and efficient system operation. To use it effectively, start by selecting the appropriate test method, such as the three-point fall-of-potential test, clamp-on testing, or selective testing, based on the system and site requirements. For the three-point test, place two auxiliary electrodes (probes) into the ground at specified distances from the grounding system, connecting the meter as instructed in the user manual. Follow the proper sequence to measure potential and current, and the meter will calculate the resistance.

Ensure the probe spacing is consistent with site conditions and any standard guidelines, such as those outlined in IEEE or NEC. Regularly inspect the ground resistance meter for calibration and functionality before use. Environmental factors, including soil moisture, temperature, and composition, directly influence readings; thus, testing under varying conditions can provide more accurate insights. Record and analyze the results to ensure the resistance values fall within specified safety thresholds for the grounding system.

Steps for Accurate Resistance Testing

1. Verify Equipment Calibration

Ensure that the ground resistance meter is properly calibrated and fully operational before initiating the test. Refer to the manufacturer’s manual for specific calibration procedures.

2. Choose an Appropriate Test Method

Select the appropriate method for ground resistance testing, such as the three-point fall-of-potential method, clamp-on testing, or selective testing, depending on the system configuration and accessibility.

3. Prepare the Test Location

Identify a suitable location for testing that avoids interference from buried conductors or nearby grounding systems. Clear the area of debris or obstacles that might influence the test’s accuracy.

4. Install Test Electrodes

Properly place the test electrodes (spikes) in the ground at the required distances specified by the testing method. Ensure that the spacing matches the guidelines to avoid errors in potential and current measurements.

5. Connect the Testing Equipment

Securely connect the test leads from the resistance meter to the ground electrode and the test spikes. Verify all connections are firm to prevent inaccuracies in the readings.

6. Conduct the Test

Power on the ground resistance meter and follow the recommended operational steps for the selected test method. Take note of any environmental factors such as soil conditions during the process.

7. Record and Repeat Measurements

Record the measured resistance values. For accuracy, repeat the test multiple times under slightly different conditions, such as repositioning spikes or testing at varying depths, to confirm consistency in results.

8. Analyze Results

Compare the recorded resistance values against industry standards and safety thresholds, such as those specified by IEEE or NEC guidelines. Investigate and address any values that fall outside acceptable limits.

9. Document Findings

Maintain thorough documentation of all test procedures, results, and observations for future reference and compliance audits. Include details on environmental conditions and any anomalies encountered during testing.

Interpreting Results from Ground Resistance Testers

When interpreting results from ground resistance testers, it is crucial to understand the parameters against which the measurements are being evaluated. Ground resistance values can vary significantly depending on soil type, moisture content, temperature, and the design of the grounding system. A typical acceptable range for ground resistance is less than 5 ohms for critical systems, as recommended by IEEE and other industry standards, although values can vary based on specific site requirements.

Values exceeding the acceptable threshold may indicate inadequate grounding, potentially due to soil resistivity, poor connections, or damaged conductors. Anomalies such as sudden spikes or inconsistencies in measurements should be investigated immediately, as they could signify environmental interference, instrument error, or deterioration in system components.

Additionally, comparing measurements over time can help identify trends in resistance values, indicating whether maintenance or upgrades are needed to ensure system safety and performance. Proper interpretation relies on both understanding the equipment manufacturer’s guidelines and referencing established safety codes to determine compliance.

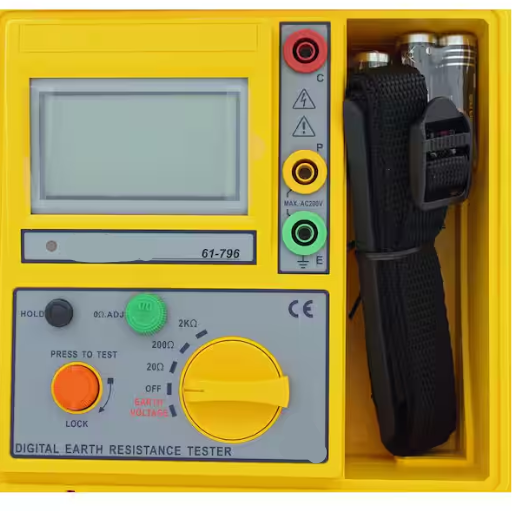

Exploring the Fluke Range of Testers

When exploring the Fluke range of testers, it is vital to identify the specific testing needs your application demands. Fluke provides an array of precision instruments designed for electrical, environmental, and industrial diagnostic applications. For resistance testing, devices such as the Fluke 1587 FC Insulation Multimeter and Fluke 1555 Insulation Tester deliver advanced measurement capabilities, including insulation resistance up to 10 kV, real-time trend analysis, and integration with software for streamlined data reporting. Their ergonomic design and adherence to industry standards ensure reliable operation in demanding environments. Selecting the right tester depends on factors such as the voltage range, application type, and required connectivity features, such as wireless data logging. Always cross-check the instrument specifications against your operational requirements and consult the product documentation for optimal usage and compliance.

An Overview of the Fluke 1625-2

The Fluke 1625-2 advanced earth ground tester is a highly specialized instrument designed for professional engineers and technicians tasked with evaluating ground resistance in electrical systems. This device enables multiple testing methods, including the traditional three- and four-pole fall-of-potential measurement and selective and stakeless testing. Its advanced capabilities are particularly well-suited for complex environments, such as utilities, industrial facilities, and electrical substations, where accuracy and efficiency are critical.

With integrated GPS capabilities and wireless connectivity for data transfer, the Fluke 1625-2 sets a new standard for modern ground testing instruments. The inclusion of real-time data logging and compatibility with Fluke Connect software simplifies data management, allowing for seamless reporting and analysis. The device also features rugged construction, ensuring durability in field applications, alongside a user-friendly interface with intuitive menus and clear display options that minimize operational error.

Features of the Fluke 1630 Ground Resistance Meter

• Clamp Design: The Fluke 1630 features a clamp design that allows for quick and safe ground resistance measurement without the need for auxiliary ground stakes.
• Selective Testing: Enables testing in multi-grounded systems without disconnection, ensuring system integrity during measurements.
• Wide Measurement Range: Offers a ground resistance measurement range from 0.025 Ω to 1500 Ω, accommodating a variety of industrial and commercial applications.
• Current Measurement Capabilities: Measures leakage current up to 30 A AC, providing additional diagnostic functionality in electrical systems.
• High Accuracy: Equipped with advanced filtering technology to minimize interference from noise in electrified systems, improving measurement precision and reliability.
• Rugged Build: Designed with a durable housing and ergonomic grip, the device is highly resilient for tough environments, making it suitable for fieldwork.
• Data Logging Functionality: Built-in memory for storing up to 99 measurement results, enabling efficient data retrieval and analysis.
• Battery Efficient: Operates on battery power with low consumption, allowing extended use between battery replacements.
• Compact and Lightweight: The portable design of the Fluke 1630 ensures easy handling and transportation across job sites.

Advantages of Using Fluke Products for Ground Testing

• Accuracy and Reliability: Fluke products are engineered to deliver precise and consistent ground testing results, ensuring compliance with safety standards and regulations.
• Ease of Use: Featuring intuitive interfaces and straightforward controls, Fluke devices simplify the testing process, reducing the learning curve for operators.
• Durability: Designed with rugged construction, Fluke products can withstand harsh operating conditions, including extreme temperatures and challenging environments.
• Versatility: Fluke ground testers support multiple testing methods, such as clamp-on testing and fall-of-potential testing, catering to diverse application needs.
• Efficient Data Management: Advanced data storage and retrieval capabilities enable technicians to streamline analysis and maintain accurate records.
• Safety Features: Fluke ensures superior safety in design, incorporating features like leakage current detection and protective shielding for operator security.
• Time-Saving Performance: High-speed measurements and reduced setup times allow users to complete ground testing tasks more efficiently.
• Global Reputation: Trusted worldwide, Fluke’s products are known for their quality, making them a go-to brand for professionals in industrial and electrical testing sectors.

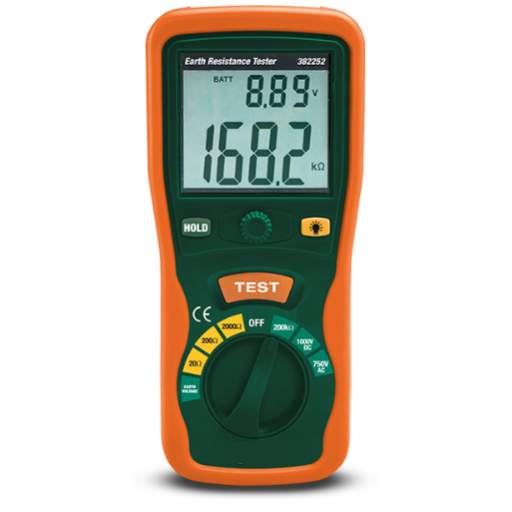

Choosing the Right Ground Resistance Meter for Your Needs

Key Factors to Consider When Choosing a Ground Resistance Meter

Selecting the optimal ground resistance meter involves evaluating several critical factors to ensure the device meets your specific testing requirements:

1. Testing Method

Determine whether your application requires a clamp-on method for non-intrusive testing or the traditional three-pole or four-pole methods for higher accuracy in varied soil conditions.

2. Environment and Application

Assess the environment in which the meter will be used. For example, harsh industrial settings may require a rugged device with high ingress protection (IP) ratings, while remote locations may necessitate portability and battery-powered operation.

3. Measurement Range and Sensitivity

Choose a meter with the appropriate measurement range to handle the expected ground resistances. Devices with higher sensitivity and resolution are ideal for detecting small variations in resistance.

4. Ease of Use

Consider features such as an intuitive interface, clear display, and automated functions that simplify setup and enhance operational efficiency.

5. Compliance and Safety Standards

Verify that the meter complies with relevant safety and industry standards, ensuring reliable and accurate readings while prioritizing operator safety.

By carefully evaluating these factors, you can select a ground resistance meter that delivers accurate, dependable results tailored to your specific testing scenarios.

The Benefits of a Clamp Meter in Ground Testing

1. Non-Invasive Testing

Clamp meters enable testing without the need to disconnect the ground system, avoiding service interruptions and reducing the risk of errors during reconnection.

2. Efficiency and Speed

The use of a clamp meter significantly reduces testing time, as measurements can be conducted directly on the ground conductor without additional setup or auxiliary electrodes.

3. Simplified Process

Clamp meters simplify ground testing procedures, especially in challenging environments or where traditional methods may require extensive site preparation.

4. High Accuracy and Reliability

Modern clamp meters offer precision in their measurements, ensuring accurate results even when dealing with complex grounding systems or parallel ground paths.

5. Minimal Environmental Impact

By eliminating the need to drive test stakes into the ground, clamp meters reduce environmental disturbance, making them suitable for urban or landscaped areas.

6. Enhanced Safety

Testing with a clamp meter reduces the risks associated with high-resistance or faulty grounding systems by allowing measurements to be taken without physical contact with live parts.

7. Versatility in Applications

Clamp meters are suitable for testing both resistance and leakage current, making them versatile tools for ground system analysis across various installations.

Comparing Different Types of Resistance Testers

Type of Resistance Tester	Key Features	Primary Applications	Accuracy Range	Portability
Clamp Meter	Non-contact measurements	Grounding systems, leakage current	Moderate	High
Megohmmeter	High voltage insulation testing	Cables, motors, transformers	High	Medium
Multimeter	General-purpose resistance testing	Household wiring, devices	Low to moderate	High
Earth Ground Tester	Measures soil resistance precisely	Grounding electrodes, lightning rods	Very high	Low to medium
Four-Probe Tester	Uses four-point method for accuracy	Material resistivity analysis	Extremely high	Low
Micro-ohmmeter	Tests very low resistance levels	Switches, conductors, busbars	High	Low to medium

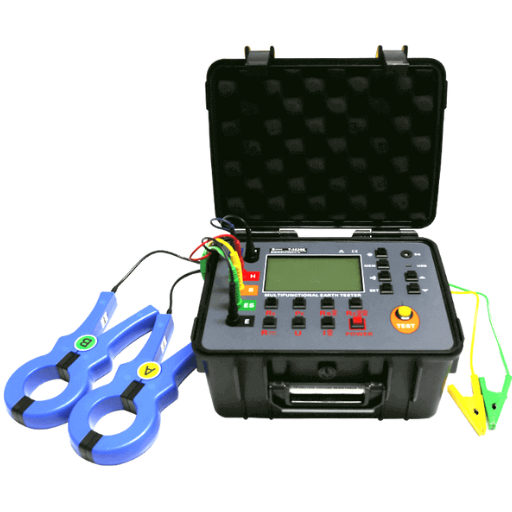

Maintaining Your Earth Ground Resistance Tester

Proper maintenance of your earth ground resistance tester is essential to ensure accurate readings and reliable performance over time. Here are key practices for maintaining your device:

1. Routine Calibration

Regularly calibrate the tester according to the manufacturer’s specifications to maintain measurement accuracy. Calibration intervals should align with the frequency of use and the critical nature of the applications.

2. Inspect and Clean Components

Frequently inspect test leads, clamps, and connections for damage or wear, as compromised components can lead to inaccurate measurements. Use a soft, dry cloth to clean the device, avoiding the use of abrasive materials or harsh chemicals.

3. Battery Maintenance

Monitor and replace the batteries as needed. Using low batteries can lead to erratic performance or device malfunction during critical tests.

4. Protect from Environmental Damage

Store the tester in a protective case to shield it from dust, moisture, and extreme temperatures. Always use the device within the operating conditions specified in the user manual.

5. Perform Regular Functional Checks

Conduct functional tests periodically to verify that the meter is operating correctly. This can include simple resistance checks with known values to ensure system integrity.

By adhering to these maintenance practices, you can extend the lifespan of your earth ground resistance tester while ensuring its ongoing reliability and operational accuracy.

Tips for Keeping Your Tester Kit in Top Condition

• Store in a Clean, Dry Environment

Ensure the tester kit is stored in a location free from dust, moisture, and extreme temperatures to prevent damage to sensitive components.

• Inspect Components Before Use

Regularly check cables, connectors, and probes for wear, fraying, or corrosion. Replace any damaged parts immediately to maintain safe and accurate testing.

• Calibrate Regularly

Perform routine calibration, as recommended by the manufacturer, to maintain measurement accuracy and compliance with operational standards.

• Avoid Overloading

Do not exceed the specified measurement ranges of the device, as this could lead to permanent damage or compromised accuracy.

• Clean After Use

Wipe down the tester with a soft, non-abrasive cloth to remove any dirt or residues. Never use harsh chemicals or solvents that could harm the device’s exterior or internal components.

• Secure During Transit

When transporting the tester kit, use a padded carrying case to protect it from impact and vibration that could affect its functionality.

• Follow Manufacturer Guidelines

Adhere strictly to the operating and maintenance guidelines provided in the user manual for optimal performance and longevity of the device.

Storing Your Earth Ground Tester Safely in a Carrying Case

When I store my Earth Ground Tester in a carrying case, I ensure it is placed in a padded, shock-absorbing compartment to protect it from external impacts. I avoid overcrowding the case with additional items to prevent accidental pressure or damage to the tester’s buttons and screen. Furthermore, I always secure the case in a stable position during transport to minimize exposure to vibrations or sudden movement, and I follow all storage advice from the manufacturer to maintain the device’s quality and functionality.

Ensuring Accuracy with Regular Resistance Testing

To ensure accuracy during resistance testing, I regularly calibrate my equipment using manufacturer-recommended procedures and certified reference materials. Before each use, I inspect the tester for any physical damage, dirt, or debris that could impact readings. I also perform control tests on known resistances to verify the device’s reliability and consistency. By adhering to these practices, I maintain precise measurements and identify any deviations in performance promptly.
