Understanding Relay Output vs Solid State Output Modules

With respect to industrial automation and control systems, the choice of an output module defines the many choices that have to be made with performance, reliability, and efficiency in mind. Picking from the range available, solid state output modules and relay output modules are some of the most common technologies used. This article discusses the differences between these technologies, their functionality, ideal use cases and key points that need to be thought of before deciding. This should allow you to make a technically and operationally informed decision, whether you are designing a new system or upgrading an existing one.

What is a Relay Output Module?

A Relay Output Module connects and controls electrical loads using electromechanical or solid state relays. It interfaces with low voltage control signals from systems like PLCs and higher powered equipment such as motors, lights, and alarms. The module accepts a control signal, and in response activates the relay which either allows or stops electricity flow to the associated device. In industrial automation, relay output modules are widely utilized to mitigate risks of devastation during floods by ensuring dependable isolation and regulation of high-voltage circuits while safeguarding delicate control instruments.

How does a Relay Output work?

Relay outputs suspend action using electromagnetic fields in relays that open and close circuits sequentially. The relay coil emits an electromagnetic field when low-power control signals are sent, energizing or de-energizing a magnetic field that pulls or pushes the device’s mechanical arm. The arm serves as the relay’s contact point, allowing it to fuse and separate from the electric circuit linked with the high-power device.

The use of relays as outputs offers electrical isolation between the control and load sides, minimizing the possibility of electrical interference or damage. The most recent relay output modules have the capability to deal with inductive loads like motors or solenoids as well as resistive ones which include heaters and lights, and even capacitive loads. In addition, most of the modern modules have built-in reliability features like overcurrent and surge protection as well as reliability feedback.

What are the common uses of a Relay Output Module?

Relay output modules are known for their effective management of electrical loads while providing isolation between control systems and operational devices. This serves to broaden its scope of use across many industries and applications. A few examples of using relay output modules include:

1. Automation Systems

As actuators for solenoids, motors, and pneumatic valves, relay output modules help automate industrial processes. These programs also facilitate accurate operation of automation equipment including conveyors, robotic systems, and assembly lines.

2. Lighting Control

These modules can be found in commercial, industrial, and residential settings for lighting. Since the relay is capable of managing the high inrush currents seen with incandescent and LED lights, it is well suited for the lighting systems scheduled for automation based on time or occupancy.

3. HVAC Systems

HVAC systems incorporate relay output modules to manage and control the operation of HVAC systems. Compressors, fans, dampers, and pumps are all managed by relay output modules, which increase efficiency and control temperature.

4. Motor Control

Relay output modules are useful for both small and large motors. Precise activation and repeated activation for motors is utilized in pump systems, conveyor belts, and elevators which require controlled motor functions.

These systems demonstrate the adaptability and dependability of relay output modules in handling intricate problems and load management in various sectors. These modules provide functionality and reliability across all use cases with proper choice of load type, voltage ratings, working environment, and reliability requirements.

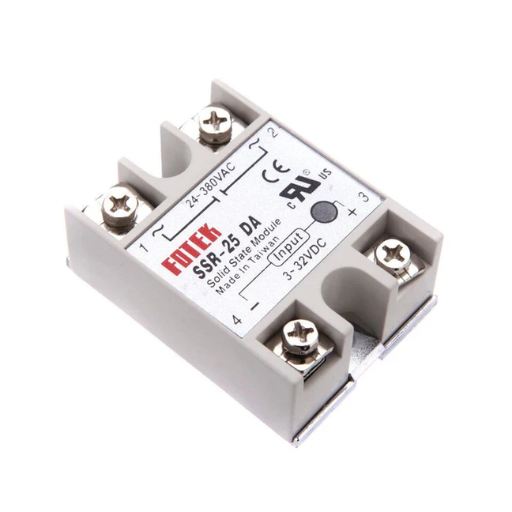

What is a Solid State Relay?

A solid state relay (SSR) is an electronic device that initiates and halts the flow of electrical current without any moving components. Traditional mechanical relays are SSRs that utilized semiconductor components, which include thyristors, triacs and transistors. This typology of SSR offers multiple advantages such as slower response times, physically silent functions, lack of mechanical noise, and greater durability. SSRs that offer high speed switching, extreme control precision, and reliability are common within industrial automation, HVAC systems, as well as lighting control. Furthermore, solid state relays protect against shock and vibration, and increase effectiveness in extreme environments.

How does a Solid State Relay function?

Applying input control signals, SSRs activate inner circuits like LED controllers to light up. The light is then received by photodetectors such as phototransistors and triacs. The LED lighting serves to electrically separate the input and output circuits. This method of separation enhances operational safety whilst also limiting audible interference.

In accordance with the SSR design, the output switching device may be triggered by a thyristor, triac, or MOSFET, all of which can be activated by the photodetector. These components provide the required precision for the relay to manage the output load current. This capability SSRs possess allows them to cater to a diverse range of applications and AC or DC loads while maintaining prompt response times and energy efficiency. Moreover, the absence of moving components decreases mechanical failures and prolongs operational life.

What are the advantages of using a Solid State Output?

Compared to electromechanical counterparts, solid-state outputs integrated with relays are more advantageous. These stem from their reliance on semiconductor technology that provides enhanced performance, effectiveness, and dependability. Below is a detailed enumeration of merits:

1. Durability and Longevity

Mechanical wear and tear is avoided with solid-state outputs since there are no moving components. With optimal conditions, electromechanical relays reach up to 10 million operations. Wash relays possess a significantly longer operational lifespan.

2. High-Speed Switching

Acceleration in response times due to the absence of mechanical parts allows extremely brisk switching. For solid-state devices, these values hover below 1 millisecond. Marked briskness makes them ideal for high-speed automation systems.

3. Noise-Free Operation

The silent operation of solid-state outputs contrasts with the audible clicks produced by electromechanical relays. This difference can be crucial in spaces where even the slightest acoustic noise might interfere with delicate activities or equipment.

4. High Reliability

The reliability of solid-state outputs is attributed to their construction from semiconductors. Such outputs are more likely to withstand damages caused by vibration, shock, dust, humidity, and other environmental factors.

5. Energy Efficiency

Solid state outputs are highly energy-efficient because of their minimal operational losses. Furthermore, their capacity to drive loads without generating considerable heat enhances system energy efficiency.

The outlined advantages reinforce the suitability of solid-state outputs for use in industrial, automotive, and consumer electronics, while also reinforcing their adaptability to contemporary multifunctional systems.

What applications are best suited for Solid State Relays?

Solid State Relays (SSRs) are essential for high-speed switching applications that need reliability and low maintenance. Their quiet operation, lack of wear and tear, and ability to endure rapid wear and frequent switching cycles make them useful in many fields. Below is an elaborate explanation of key sectors where SSRs work best:

1. Industrial Automation Systems

Due to their capability of exact and rapid switching, SSRs are widely implemented in PLCs and other industrial machines. They protect from overheating and provide reliable service in dust, vibrating, and temperature chaotic industrial zones.

2. HVAC Systems

SSRs Provide HVAC Systems With High Reliability and Silence, Allowing Smooth Control Over units such as compressors, Fans, And Heaters. This Ensures Energy Efficiency While Prolonging Equipment Life Span.

3. Lighting Control

SSRs have wide usage in lighting control systems, especially for LED and high intensity discharge (HID) lighting. Their lack of mechanical wear and ability to deal with inrush currents make them suited for use in automated and smart lighting systems.

4. Temperature Control Systems

In temperature control precision, ovens, kilns, and even industrial heaters rely on SSRs, which possess rapid and precise control and accuracy. These capabilities eliminate temperature fluctuations that might jeopardize product quality.

Through the provided benefits of silent operation, longevity, and resistance to environmental stressors, Solid State Relays fulfill the demanding requirements of diverse applications and highlight their important placement in modern technology.

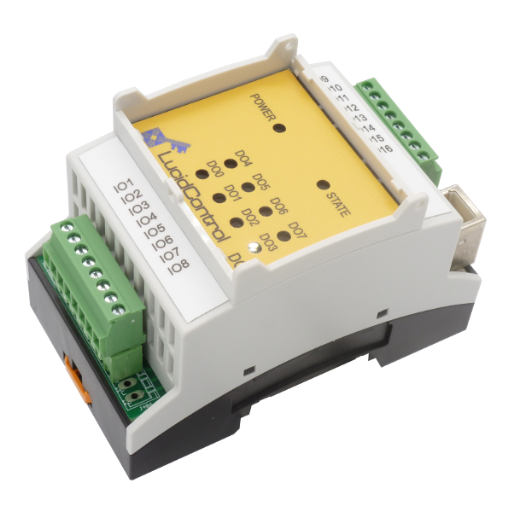

Relay Output vs Solid State Output: What are the Key Differences?

While both relay outputs and solid state outputs serve the same function of switching circuits, the relays have a distinct way of functioning that separates them from solid state mechanisms. The difference in performance, efficiency, and reliability when controlling an electrical system designates which output is optimal for a specific system. It becomes crucial for engineers, technicians, and management responsible for selecting the appropriate technology to know these features and differences thoroughly. This article explains the most important aspects of the distinction between relay outputs and solid state outputs.

What are the main differences between them?

Key Point	Relay Output	Solid State Output
Output Voltage Range	Wide range, handles higher voltages	Narrower range, optimized for specific voltages
Voltage Compatibility	AC and DC compatible	AC or DC optimized depending on type
Switching Speed	Slower due to mechanical contacts	Faster due to electronic switching
Voltage Drop Across Output	Negligible, close to zero	Small voltage drop present
Noise Immunity	Lower, susceptible to electrical noise	High, more resistant to electrical noise
Voltage Regulation Accuracy	Adequate for general applications	Higher, precise voltage control
Maximum Output Voltage	Can handle very high voltages	Limited to design specifications
Consistency Across Cycles	May vary due to wear over time	Consistent performance over lifetime

What are the maintenance requirements for Relay and Solid State modules?

Relay Modules: As a result of their electromechanical constituents, relay modules necessitate higher maintenance frequencies. Electromagnetic coils and contacts are prone to mechanical wear over time, resulting in diminished performance and potential failure. Basic maintenance procedures in this category cover verifying and removing oxidation and debris that may hamper conductivity on contacts. Checking for coil degradation and ensuring normal operation of spring mechanisms also falls within basic maintenance. Environments with high temperatures and humidity, as well as vibration, may accelerate wear and tear. This increases the likelihood of necessitating more frequent inspections and part replacements.

Solid-State Modules: In contrast, solid-state modules do not have moving parts, simplifying maintenance and greatly increasing reliability. They experience minimal wear and tear under normal operating conditions. On the other hand, maintenance on solid-state modules focuses on ensuring auxiliary systems like heat sinks or cooling systems provide proper heat dissipation to avoid overheating. Other preventative maintenance tasks include maintaining clean interfaces to reduce the possibility of electrical shock. Proactive maintenance, such as regularly inspecting the module’s thermal management systems and active power terminals, can complement sustained functionality and prolong the module’s lifespan.

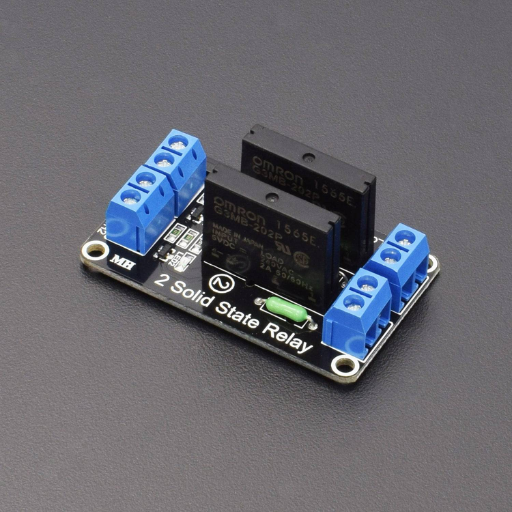

How to Choose Between Relay Output and Solid State Output?

The scope of an application influences the selection of relay output and solid state output.

1. Relay Output: Select in situations where electrical isolation is a necessity or in instances where current loads are higher, relay outputs are preferred. Relay outputs function with low switching frequencies and are able to manage AC and DC loads. They have a limited lifespan due to mechanical wear from moving parts.
2. Solid-State Output: For applications that require extended cycles solid state outputs are most suitable as they are reliable. They are also applicable in high speed switching operations. In comparison with other types of outputs these are more durable as there are no moving components, furthermore their operation is quieter. They are best suited to moderate thermal current levels and can operate at low to moderate thermal current levels.

To maximize functionality, the current load, the required switching speed, and the controlled environment within which the system is to operate work hand-in-hand when making a decision.

What factors should be considered when selecting an output module?

While choosing an output module, it is important to consider the critical aspects which would guarantee dependable performance within the selected use case. Begin by evaluating the type of load and its electrical parameters traction like inductive, resistive, or capacitive and how these would impact the choice of either relay based or solid-state modules. Furthermore, take into consideration the module’s current and voltage rating for the tuning processes and whether they meet the module’s requirements and safety margins.

In addition to these characteristics, another equally important consideration is switching speed, where high frequency response triggers or time-sensitive operations require rigorous timing, giving an edge to solid state modules having more consistent and faster switching speeds. Environmental factors including ambient temperature, humidity, and corrosive substance exposure also fall under such conditions. These factors would greatly reduce the operational lifespan and induce thermal stress. Lack of effective mechanisms such as ventilation systems or heatsinks which allow for adequate dispersal of thermal energy would result in excessive heating.

How do temperature and environment affect your choice?

Temperature impacts both environmental factors and electronics; they affect the functionality, dependability, and life span of components. Heat can cause some materials to deteriorate quickly, increase resistance, and make them less conductive, which will yield less efficient results. Brittle low temperatures can make some certain materials structurally lessen their integrity over time as well. Insufficient sealing may lead to condensation build up which introduces short-circuiting or corrosion risks. Insufficient sealing may lead to condensation build up which introduces short-circuiting or corrosion risks. Circuits that are exposed to corrosive gases or dust particulates also make maintenance difficult while requiring the use of more corrosion-resistant materials. Additional modern studies suggest devices that are built around harsh environments need to be minimally corrected and safeguarded by conformal coatings to counteract these undesired effects. All components need to be assessed together for optimal performance as devices are expected to work under set conditions.

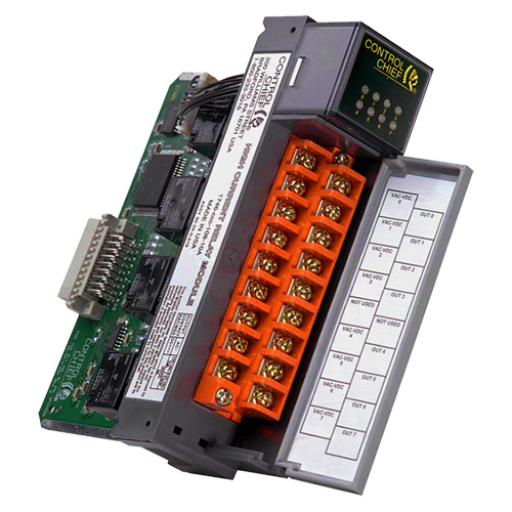

Can Solid State Output Replace Relay Output in All Applications?

Even though Solid State Output has an advantage with faster switching, greater durability, and being wear resistant, it does not mean that Relay Output will perish in all scenarios. Solid state outputs work best in high-frequency environments and places that require reliability and long-lasting parts. On the other hand, Relay outputs do well in high current handling with galvanic isolation. In this case, solid state outputs might be inefficient. The decision made on the two should base by specific electircal functions and operational requirements.

What limitations exist for Solid State Relays?

Advantages like noise resistance, durability, and high speed switching are features that come with solid state receivers. With this comes shortcomings like needing to be considered when an application is designed, which poses an issue. Voltage drops are an example that stand out the most. This is due to SSRs having a forward voltage drop across output terminals. Lastly, due to lower current handling capability compared with electromechanical relays, solid state receivers will struggle when applied to high demanding current applications.

Another restriction concerns the dissipation of heat. SSRs, like other solid-state devices, include semiconductor parts to the SSRs which cause heat to be generated while they work which makes it crucial to integrate heat sinks or other thermal control methods. More Over, SSRs do not guarantee the same level of electrical isolation as mechanical relays which can be critical in situations where a complete isolation between the control section and the load section is mandatory.

Are there any applications where Relay Output is still preferable?

Mechanical relays have their own benefits, so they can be essential in certain configurations, such as controlling variable load given relay output, which provides distinct benefits. One of the most important advantages of mechanical relays in comparison to other types of electromechanical switches is providing full galvanic separation on the control signal and the circuit. This feature is very important in industrial environments, medical devices or in safety-critical applications, where even minimal signal leakage may result in erroneous behavior or dangerous situations. Also, mechanical relays can fully offload high voltage and current loads that other solid-state devices do not support, for example, in cases where the load is inductive, motor, incandescent lamp, frequent surges or inrush currents.

Because mechanical relays operate through basic electromagnetism, they do not need additional power sources like SSRs, and thus function well in circuits without a constant control section power supply. Furthermore, for low volume or less complex systems, mechanical relays are more economical. They are advantageous in situations where high operational longevity or switching speeds are not priorities. Their strong effectiveness across diverse conditions and with different load types means that relay outputs are still crucial to numerous domains, even with the progress made in modern solid-state devices.

What Are the Common Issues With Relay and Solid State Output Modules?

1. Mechanical Wear (Relays): The traditional mechanical relays undergo a type of wear and tear known as mechanical wear due to the physical movements of their components. Repeatedly switching the relay can result in contact failures that lead to unreliable and inconsistent performance.

2. Heat Dissipation (SSRs): Solid-state relays like other electronic devices generate heat, particularly when operating at a high load. Excessive heat can cause the unit to fail.

3. Limited Switching Speed (Relays): Compared to solid-state output modules, mechanical relays are relatively slower in switching. This makes their use unfeasible in applications where fast switching is required.

4. Leakage Current (SSRs): Solid State Relays (SSRs) unlike mechanical relays are capable of exhibiting a small leakage current while in the “off” state. This is problematic because it could disrupt sensitive circuits.

5. Contact Arcing (Relays): Mechanical relays tend to show contact arcing, especially when used with inductive loads which decreases their lifespan and requires the addition of protective devices.

Selecting, using, and maintaining these output modules properly are essential to address these concerns, both in relays and SSRs.

What troubleshooting steps can be taken for a malfunctioning Relay Output Module?

1. Check Power Supply: Check if the relay module is properly supplied with the voltage and current values prescribed by the manufacturer. Improper power supply, insufficient or unstable, can result in improper relay functioning.

2. Set Wiring Connections: Worn, loose, and corroded connections may disrupt information transfer and operations throughout the device. Terminals and connectors with evidence of wearing should either be tightened, replaced or retouched as needed.

3. Diagnose Input Signals: Make sure the relay’s input signals are within acceptable voltage and current levels. Check the accuracy and stability of the signals with a multimeter or oscilloscope.

4. Verify Output Load: Ensure that the relay is actually connected to a load which is compatible with it within its rating. Connecting incompatible loads either above or below the rated capacity can lead to overheating or contact failure.

5. Measure Relay Coil Resistance: Inspect the relay coil with your multimeter and record the resistance values. Coils that are shorted/open circuit will fail requiring replacement of the relay.

6. Look for Physical Damage: Overheating and burns, wear and tear mark’s modules, which warrant scrutiny. Internal module faults must be necessitated for exposing outer damage claiming a module replacement or repair.

7. Analyze Environmental Factors: Excessive temperatures moisture and dust can lead to eroding operational productivity. As within all operations, maintain environmental conditions around the module’s requirements.

8. Systematic Testing: Operate the relay with a test signal to validate the engaging and disengaging functionality performs to expectations. This helps to narrow down internal relay failures as opposed to external faults.

Following these steps helps in correcting the malfunction and taking the necessary actions by identifying the root factors. In every case, the manufacturer recommendations must be followed so that troubleshooting can be performed accurately while ensuring safety of the system.

What are the signs of leakage current in Solid State Output?

Leakage current in solid state output devices is usually shown as abnormal operation in the connected load which is supposed to be “off”. Typical manifestations include: the indicator lights that are supposed to be off show some activation; low-power gadgets turn on unexpectedly; and signals no longer fully turn off. This is a consequence of leakage current, which in this case, solid state devices which are in “off” state do not conduct current. Also, measuring output terminals with a sensitive multimeter can show the solid state devices have “off” voltages. This phenomenon is called an incomplete short circuit. Leakage current must always be considered when designing circuits, particular with high-impedance and low-power load circuits, in order to avoid unwanted operations and some failure of higher systems. Schedulers do not need to worry too much as the problem can be alleviated by choosing components with low off-state leakage figures or adding load resistors.

Reference Sources

1. Analysis of Solid-State Relay Solutions Based on Different Semiconductor Technologies: This study analyzed the design and operation of bi-directional switches (BDS) using power semiconductor devices to replace electromechanical relays (EMRs).

2. Design and Analysis of MOSFETs as Solid-State Relays for Precise AC Load Control: This paper explored the use of MOSFET-driven solid-state relays (SSRs) for precise fan load control, highlighting their energy efficiency and potential integration with IoT platforms.

3. A Comparison of Solid-State and Relay Reactor Safety Systems: Solid-state circuits were found to offer advantages like faster response times and miniaturization compared to relay-based systems.

Frequently Asked Questions (FAQs)

Q: What is the main difference between relay output and solid-state output modules in PLCs?

A: The main difference is that relay output modules use electro-mechanical relays to switch loads, while solid-state output modules use semiconductor devices such as transistors or triacs to switch loads without moving parts. This leads to faster switching times and greater durability in solid-state outputs.

Q: Can I use a relay output to control both AC and DC loads?

A: Yes, you can use a relay output to control both AC and DC loads. However, it’s important to check the relay’s specifications to ensure it can handle the necessary voltage and current ratings for your specific application.

Q: What are the advantages of using solid-state outputs over relay outputs in a PLC?

A: Solid-state outputs have advantages such as faster switching speeds, longer lifespan due to no mechanical wear, and reduced size. They are also less susceptible to vibration and shock compared to traditional relay outputs.

Q: How do I determine the current rating for a relay output module in my PLC?

A: The current rating for a relay output module can typically be found in the module’s specifications. It indicates the maximum current the relay contacts can switch safely. Ensure that the load you intend to control does not exceed this rating.

Q: What is a transistor output in relation to PLCs?

A: A transistor output is a type of solid-state output that uses transistors to control the load. It can switch either AC or DC voltage and is often used for digital output applications where fast switching is required.

Q: When should I use an external relay with my PLC output?

A: You should use an external relay when the load exceeds the current rating of the PLC output module, or when you want to isolate the PLC from high-voltage or inductive loads. An interposing relay can provide additional protection and control flexibility.

Q: What type of output should I choose for controlling AC voltage loads in my PLC?

A: For controlling AC voltage loads, you can choose either a relay output or a solid-state relay (SSR) output. Relay outputs are suitable for lower-frequency switching, while SSR outputs are better for high-frequency applications and provide silent operation.

Q: What is the significance of polarity when using relay outputs in a PLC?

A: The polarity is significant when using relay outputs with DC loads, as reversing the polarity can damage the load or the relay itself. With AC loads, polarity is less of a concern, but it’s still important to connect the load correctly to ensure proper operation.

Q: How can I configure a PLC program to utilize relay output modules effectively?

A: To configure a PLC program for relay output modules, you need to define the output channels in the PLC software, set the desired logic conditions for energizing the relay, and ensure that the relay contacts are rated for the load you are controlling. Properly mapping the input devices to the output channels is also crucial.
