Top Miniaturized Intelligent Prefabricated Substation Manufacturers and Suppliers in China

Miniaturized Intelligent Prefabricated Substation

Searching for the leading DEMIKS China manufacturers and suppliers of miniaturized intelligent prefabricated substations with high precision? Look no further, as DEMIKS is one of the top manufacturers and suppliers. We ensure that your needs are adequately met with our efficient, cost-effective substations, which also offer ease of installation. Enjoy the cost-benefit with seamless installation by trusting DEMIKS on your next project.

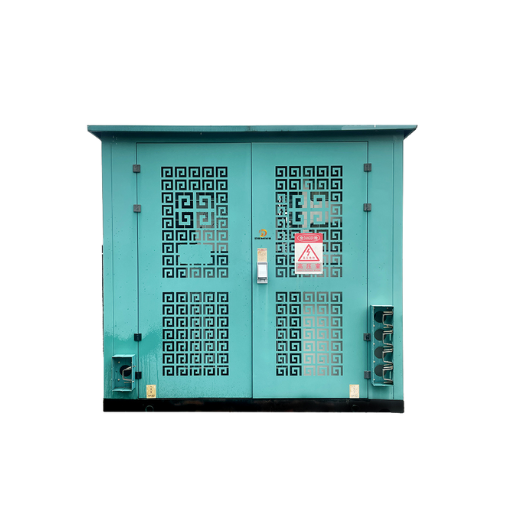

ZMXB2 Miniaturized Intelligent Prefabricated Substation

Miniaturization: The compact design reduces the area of the switch station by more than 60 percent.
Modular Design: Space-saving, streamlined architecture and straightforward advancement processes.
Safety & Reliability: Shielded from external works, completely sealed, insulated, and easy to maintain.
Automation: Control through remote, upload data, and streamlined work processes.
Customizable graphics: Design of European origin which harmonizes with the environment.
Long-lasting construction: Outer shell made of stainless or carbon steel which resists corrosion.

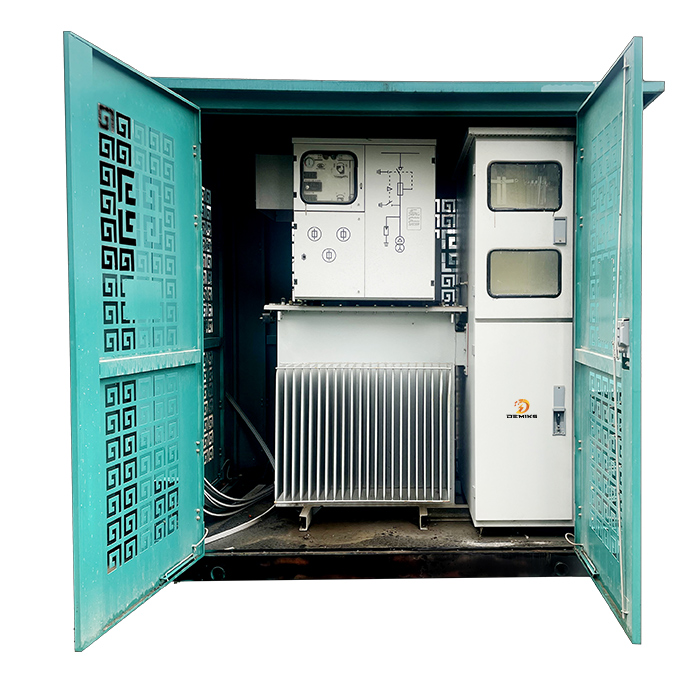

ZMXB2 Miniaturized Intelligent Prefabricated Substation-1

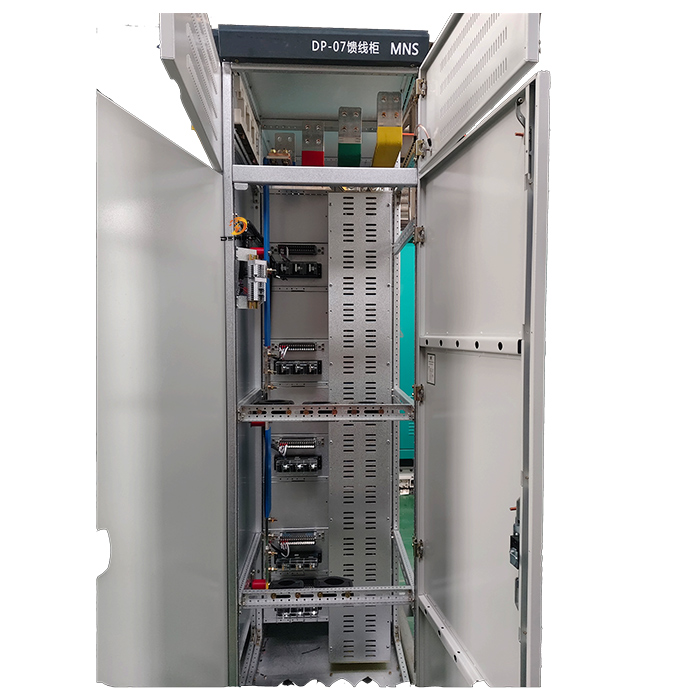

ZMXB2 Miniaturized Intelligent Prefabricated Substation-2

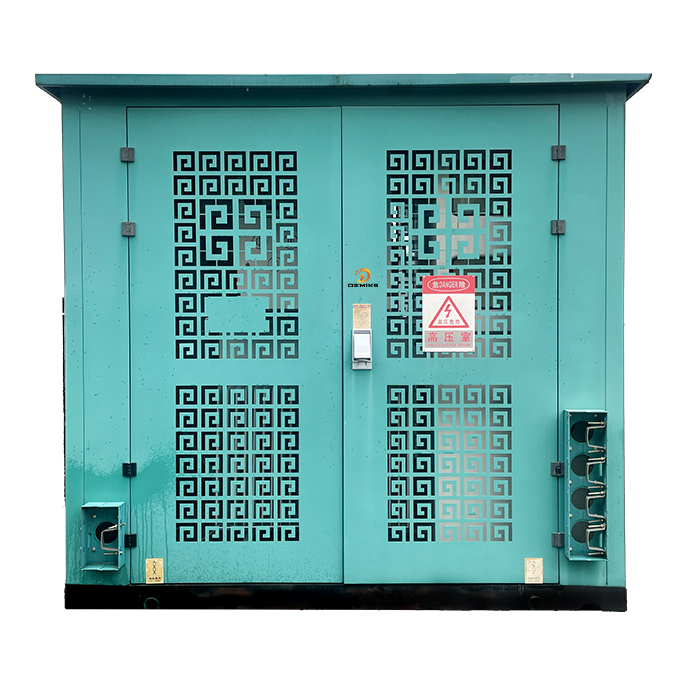

ZMXB2 Miniaturized Intelligent Prefabricated Substation-3

ZMXB2 Miniaturized Intelligent Prefabricated Substation-4

Project	Unit	Parameter
High voltage side rated voltage	kV	10 20
High voltage side highest voltage		12 24
Low voltage side rated voltage	V	400
Transformer capacity	KVA	30-630
Rated frequency	HZ	50 60
Rated peak withstand current	kA	50
1S short-time withstand current		25
Rated Insulation Level
Category	Parameter	Unit	10KV	20KV
High pressure side	Lightning impulse withstand	kV	75/85	125/45
	1min Power frequency tolerance	kV	42/48	65/79
Low pressure side	Rated voltage	V	60≤UI≤300	300≤UI≤660
	Lightning impulse withstand voltage	kV	2500	6000
	1min Power frequency withstand voltage	kV	2000	2500
Transformer
Category	Parameter	Unit	6kV	10kV	20kV
High voltage side highest voltage		kV	6	10	20
Low voltage side rated voltage		V	60	75	125
1min Power frequency withstand voltage		kV	25/20	35/28	55/50
Enclosure Protection Grade
Parameter	Unit	Grade
Enclosure protection	IP	4X

Understanding Miniature Substations: The Future of Electrical Distribution

Miniature substations are redefining energy infrastructure with their small form factor, economical pricing, and ease of deployment. These systems bolster the increasing electrical demand modern industries and communities require, all while ensuring green and optimal power distribution.
