Located in China, DEMIKS/DC is one of the foremost suppliers and manufacturers of DC high voltage testers. We provide a variety of rigorous testing solutions including handheld and benchtop testers which can always be relied on for accuracy and precision. Contact us to get the best recommendations.

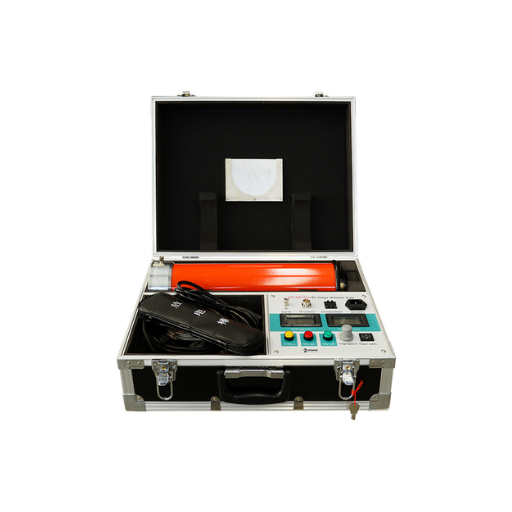

| Technical Parameters | specifications |
|---|---|
| rated voltage（kV） | 60 |
| rated current（mA） | 5 |
| rated power（W） | 300 |
| Mass of the whole machine（kg） | 9 |
| Volume of the whole machine（mm³） | 465*390*190 |
| Height of the voltage doubling cylinder（mm） | 440 |
| Accuracy of the output voltage | ± (1.0% of the reading ± 2 digits) |
| Accuracy of the output current | ± (1.0% of the reading ± 2 digits) |
| Ripple coefficient | ≤0.5% |
| Working mode | It is for intermittent use, with a rated load duration of 30 minutes. |
| Overload capacity | The no-load voltage can exceed the rated voltage by 10% and be used for 10 minutes. |
| The maximum charging current is 1.25 times the rated current. | |
| Power | AC220V±10% 50HZ |
| Working environment | Temperature: -10℃ to 40℃ |
| Relative humidity: It should not be greater than 85% (without condensation) when the room temperature is 25℃. | |
| Altitude: Below 1,500 meters |

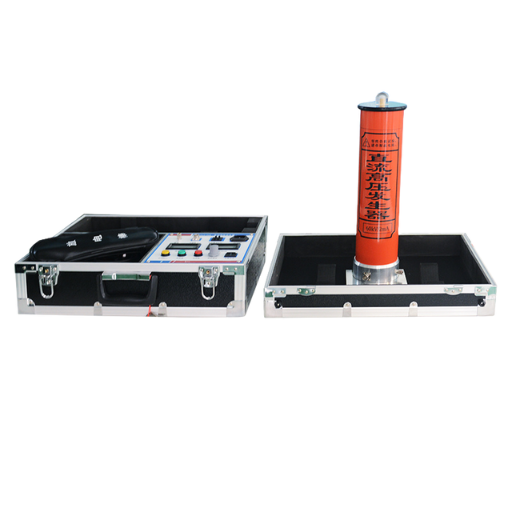

| Technical Parameters | specifications |
|---|---|
| rated voltage（kV） | 60 |
| rated current（mA） | 2 |
| rated power（W） | 120 |
| Mass of the whole machine（kg） | 9 |
| Volume of the whole machine（mm³） | 465*390*190 |
| Height of the voltage doubling cylinder（mm） | 440 |
| Accuracy of the output voltage | ± (1.0% of the reading ± 2 digits) |
| Accuracy of the output current | ± (1.0% of the reading ± 2 digits) |
| Ripple coefficient | ≤0.5% |
| Working mode | It is for intermittent use, with a rated load duration of 30 minutes. |
| Overload capacity | The no-load voltage can exceed the rated voltage by 10% and be used for 10 minutes. |
| The maximum charging current is 1.25 times the rated current. | |
| Power | AC220V±10% 50HZ |
| Working environment | Temperature: -10℃ to 40℃ |
| Relative humidity: It should not be greater than 85% (without condensation) when the room temperature is 25℃. | |
| Altitude: Below 1,500 meters |
| Technical Parameters/specifications | 120/2 |
|---|---|
| rated voltage（kV） | 120 |
| rated current（mA） | 2 |
| rated power（W） | 240 |
| Quality of the control box (kg) | 5.5 |
| Quality of the voltage doubling cylinder (kg) | 8.7 |
| Height of the voltage doubling cylinder (mm) | 970 |
| Accuracy of the output voltage | ± (1.0% of the reading + 2 digits) |
| Accuracy of the output current | ± (1.0% of the reading + 2 digits) |
| Ripple coefficient | ≤0.5% |
| Voltage stability | When power supply voltage varies ±10%, ≤1%. |
| Overload capacity | The no-load voltage can exceed the rated voltage by 10% and be used for 10 minutes. |
| The maximum charging current is 1.25 times the rated current. | |
| Power | Single-phase alternating current, 50Hz, 220V±10% |
| Working mode | Intermittent use: rated load for 30 minutes |
| Use at 1.1 times the rated voltage: 10 minutes | |
| Working environment | Temperature: -10℃ to 40℃ |
| Relative humidity: It should not be greater than 85% (without condensation) when the room temperature is 25℃. | |
| Altitude: Below 1,500 meters | |
| Load capacity with capacitor | The capacitance of the device under test is unrestricted. |
| It can be charged with 1.5 times the rated current. | |
| Structural characteristics | Electrical insulation voltage doubling cylinder |
| Air insulation, eliminating concerns about leakage. | |
| Features of the operation box | High-precision 0.75UDC1mA single-touch button (accuracy ¡Ü 1.0%) |
| Suitable for the test of zinc oxide surge arresters. | |
| The overvoltage protection adopts a digital DIP switch, which is clear at a glance. | |
| Portable chassis makes it more convenient on site. |

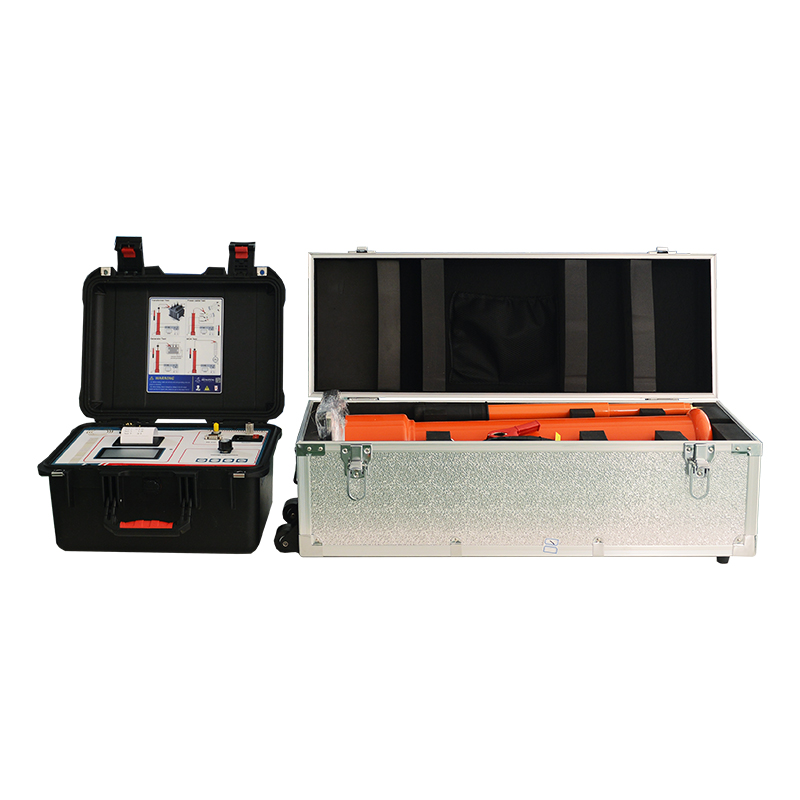

| Technical Parameters/specifications | 120/5 |
|---|---|
| rated voltage（kV） | 120 |
| rated current（mA） | 5 |
| rated power（W） | 600 |
| Quality of the control box (kg) | 5.5 |
| Quality of the voltage doubling cylinder (kg) | 8.7 |
| Height of the voltage doubling cylinder (mm) | 970 |
| Accuracy of the output voltage | ± (1.0% of the reading + 2 digits) |
| Accuracy of the output current | ± (1.0% of the reading + 2 digits) |
| Ripple coefficient | ≤0.5% |
| Voltage stability | When power supply voltage varies ±10%, ≤1%. |
| Overload capacity | The no-load voltage can exceed the rated voltage by 10% and be used for 10 minutes. |
| The maximum charging current is 1.25 times the rated current. | |
| Power | Single-phase alternating current, 50Hz, 220V±10% |
| Working mode | Intermittent use: rated load for 30 minutes |
| Use at 1.1 times the rated voltage: 10 minutes | |
| Working environment | Temperature: -10℃ to 40℃ |
| Relative humidity: It should not be greater than 85% (without condensation) when the room temperature is 25℃. | |
| Altitude: Below 1,500 meters | |
| Load capacity with capacitor | The capacitance of the device under test is unrestricted. |
| It can be charged with 1.5 times the rated current. | |
| Structural characteristics | Electrical insulation voltage doubling cylinder |
| Air insulation, eliminating concerns about leakage. | |
| Features of the operation box | High-precision 0.75UDC1mA single-touch button (accuracy ≤ 1.0%) |
| Suitable for the test of zinc oxide surge arresters. | |
| The overvoltage protection adopts a digital DIP switch, which is clear at a glance. | |
| Portable chassis makes it more convenient on site. |
| specifications | Technical Parameters |
|---|---|
| rated voltage（kV） | 200 |
| rated power（W） | 2 |
| rated current（mA） | 400 |
| Quality of the control box (kg) | 5.5 |
| Quality of the voltage doubling cylinder (kg) | 8.7 |
| Height of the voltage doubling cylinder (mm) | 970 |
| Accuracy of the output voltage | ± (1.0% of the reading + 2 digits) |
| Accuracy of the output current | ± (1.0% of the reading + 2 digits) |
| Ripple coefficient | ≤0.5% |
| Voltage stability | When power supply voltage varies ±10%, ≤1%. |
| Overload capacity | The no-load voltage can exceed the rated voltage by 10% and be used for 10 minutes. |
| The maximum charging current is 1.25 times the rated current. | |
| Power | Single-phase alternating current, 50Hz, 220V±10% |
| Working mode | Intermittent use: rated load for 30 minutes |
| Use at 1.1 times the rated voltage: 10 minutes | |
| Working environment | Temperature: -10℃ to 40℃ |
| Relative humidity: It should not be greater than 85% (without condensation) when the room temperature is 25℃. | |
| Altitude: Below 1,500 meters | |
| Load capacity with capacitor | The capacitance of the device under test is unrestricted. |
| It can be charged with 1.5 times the rated current. | |
| Structural characteristics | Electrical insulation voltage doubling cylinder |
| Air insulation, eliminating concerns about leakage. | |
| Features of the operation box | High-precision 0.75UDC1mA single-touch button (accuracy ¡Ü 1.0%) |
| Suitable for the test of zinc oxide surge arresters. | |
| The overvoltage protection adopts a digital DIP switch, which is clear at a glance. | |
| Portable chassis makes it more convenient on site. |
