Transformer Field Calibrator

Do you need a reliable Transformer Field Calibrator for your business? Check out DEMIKS/Transformer Field Calibrator. They are one of the best suppliers and manufacturers in China. We guarantee the calibrators are immensely precise in achieving optimal results during field calibration. Put your trust in the calibrating experts at DEMIKS to equip you with the appropriate tools you require for your calibration processes. Call us now and get more information on the products and services offered at DEMIKS.

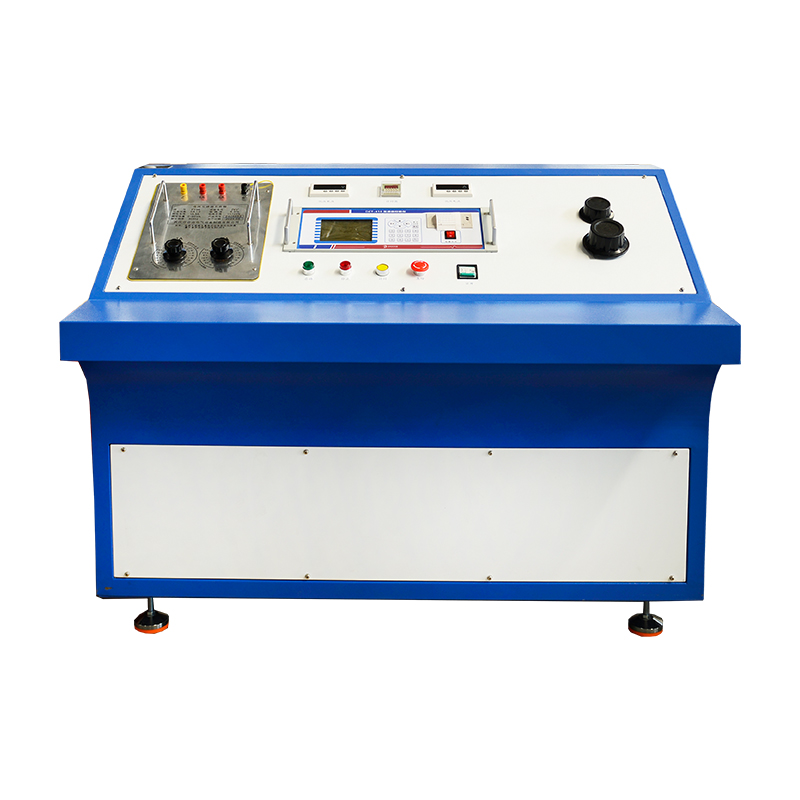

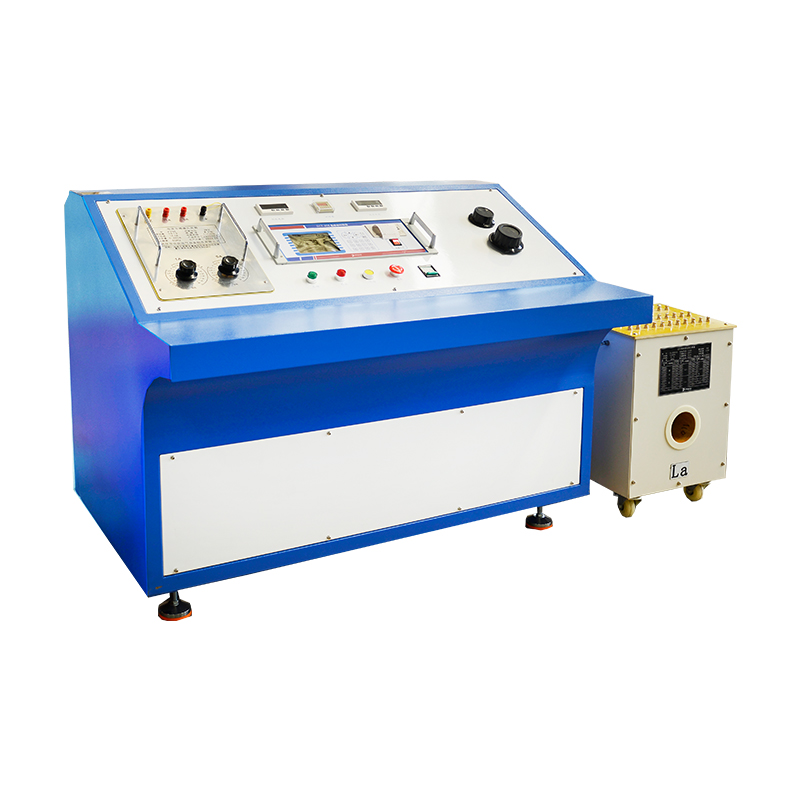

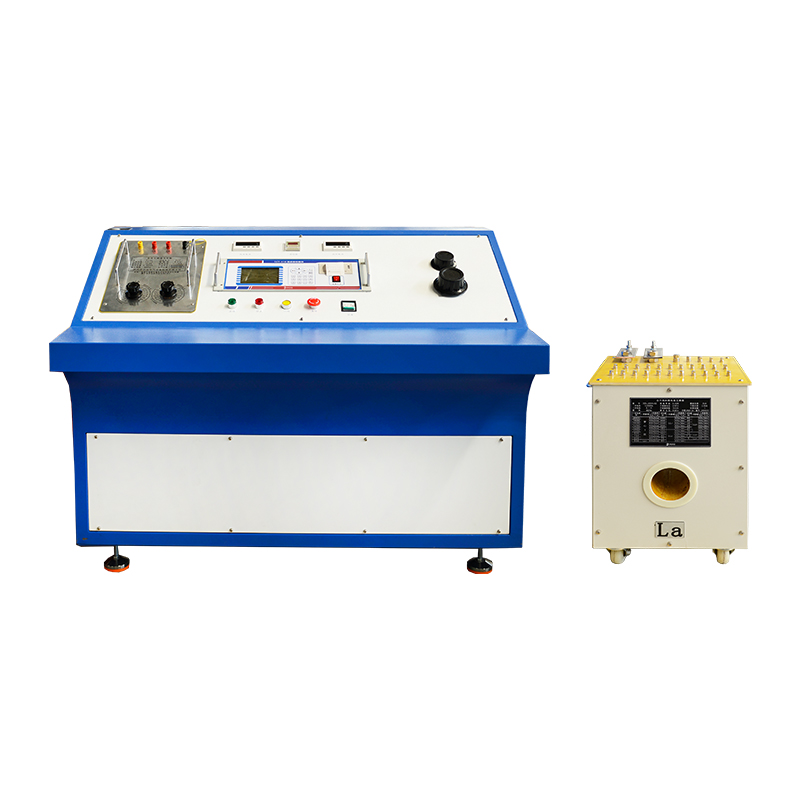

CYTC-410A

Precision Technology: The CYTC-410A uses DSP based heterodyne measurement for high accuracy with minimal temperature and frequency disturbances. It supports parameters from 0.01 to 10 in the class of accuracy.
Flexibility & Widely used: CTs (1A/5A) and PTs (up to 220V) are tested; the device is compatible with Class S transformers, measures impedance/admittance, and acts as an AC potentiometer for micro signal measurements.
Easy to use & Safe Design: Also includes Large LCD interfacing, Automatic polarity recognition, Fault indicator alarms, RS232 PC interfacing, easy to carry, and differential current isolation for safety protection.

Category	Parameter	Value/Range
Working Conditions	Temperature	5℃ - 40℃
	Relative Humidity	<80% (at 25℃)
	Altitude	<2500m
	Power Frequency	50Hz ± 0.5Hz
	Power Voltage	220V ± 5V
Measuring Range	In-phase Component (%)	0.0001 - 200.0 (Resolution: 0.0001)
	Orthogonal Component (min)	0.001 - 700.0 (Resolution: 0.001)
	Impedance (Ω)	0.0001 - 20.0 (Resolution: 0.0001)
	Admittance (ms)	0.0001 - 20.0 (Resolution: 0.0001)
Basic Error	In-phase Component	ΔX = ±(X×2% + Y×2%) ± Dx (Class 1 spare)
	Orthogonal Component	ΔY = ±(X×2% + Y×2%) ± Dy (Class 1 spare)
	Quantified Error	Dx = 2, Dy = 5
	Percentage	Class 2 (Class 1 spare)
Working Range	Current	(1% - 149%) In (In = 5A)
		(5% - 149%) In (In = 1A)
	Voltage	(5% - 149%) Un (Un = 100V, 150V, 100V/)
		(5% - 200%) Un (Un = 100V/3)
Work Load	Current	TO to TX < 0.12Ω (cosΦ = 1.0)
	Voltage	a to x < 0.25VA (100V)

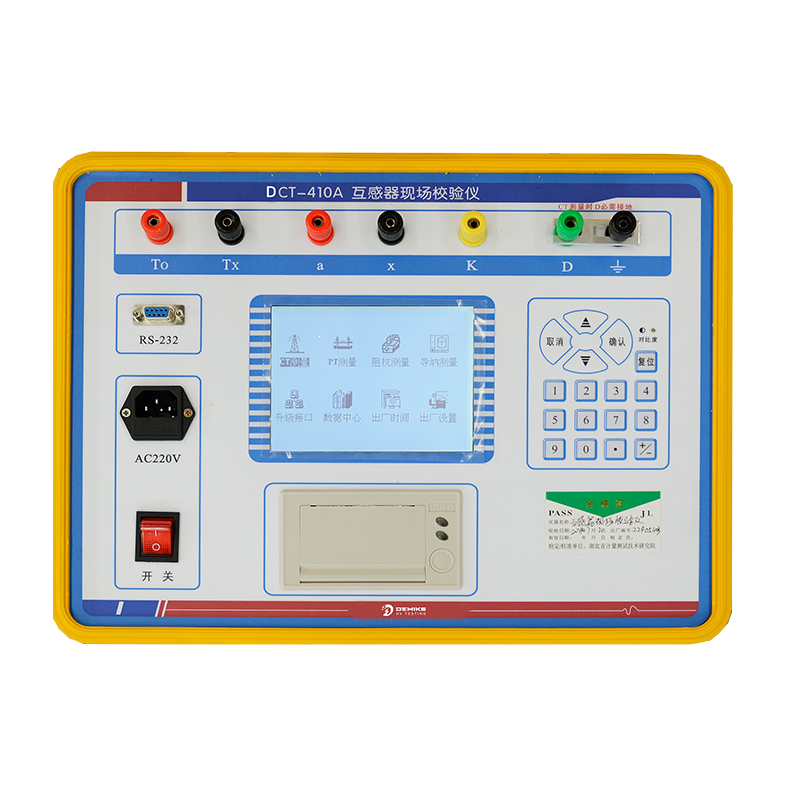

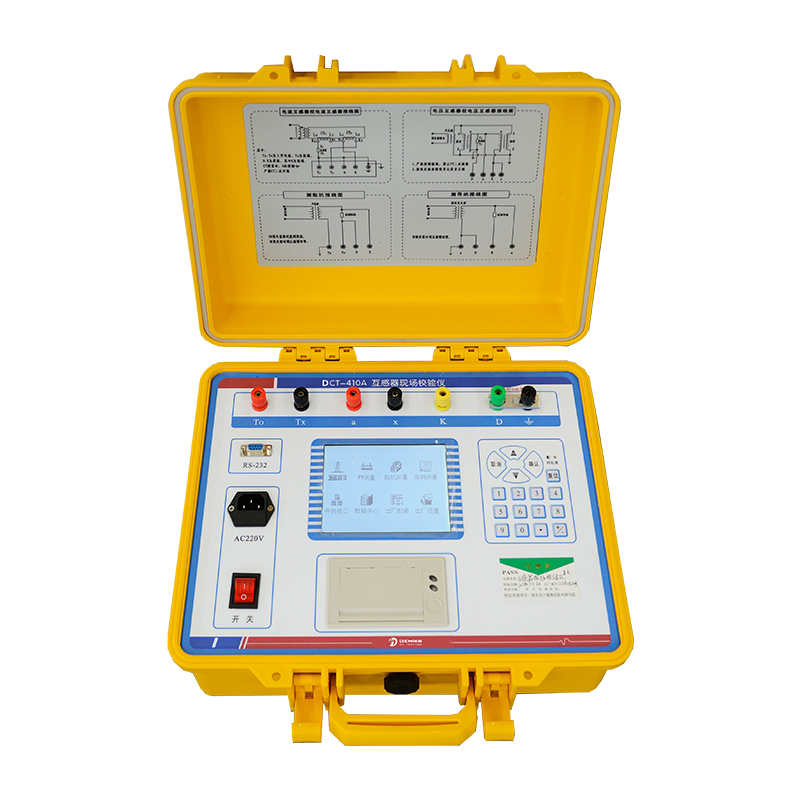

DTC-410A

Technological Sophistication & Precision: Employs DSP-based heterodyne measurement methodology with minimum temperature and frequency influence, supporting various accuracy classes from 0.01 to 10.
Universal Compatibility & Intuitive Interface: Tests current transformers (CTs) of 1A/5A and potential transformers (PTs) up to 220 volts, supports class S transformers, has large LCD, automatic flagging of faults, automatic detection of polarity, interfaces through RS232 to PC.
Broad Safety, Versatile Protection & Meets Established Standards: Provides portable, light weight, isolated differential current protection with AC measurements of admittance and impedance. Functions as a current capacitor and exceeds class 2 standards.
