High Voltage Circuit Breaker Characteristic Analyzer

If you need a trusted brand for a High Voltage Circuit Breaker Characteristic Analyzer, look no further than DEMIKS. Unlike many other suppliers within the country, DEMIKS as one of the top manufacturers and suppliers in China provides high-quality analyzers and detailed characteristics of your circuit breaker. With unparalleled trust worldwide, DEMIKS products are designed to meet the utmost industry requirements.

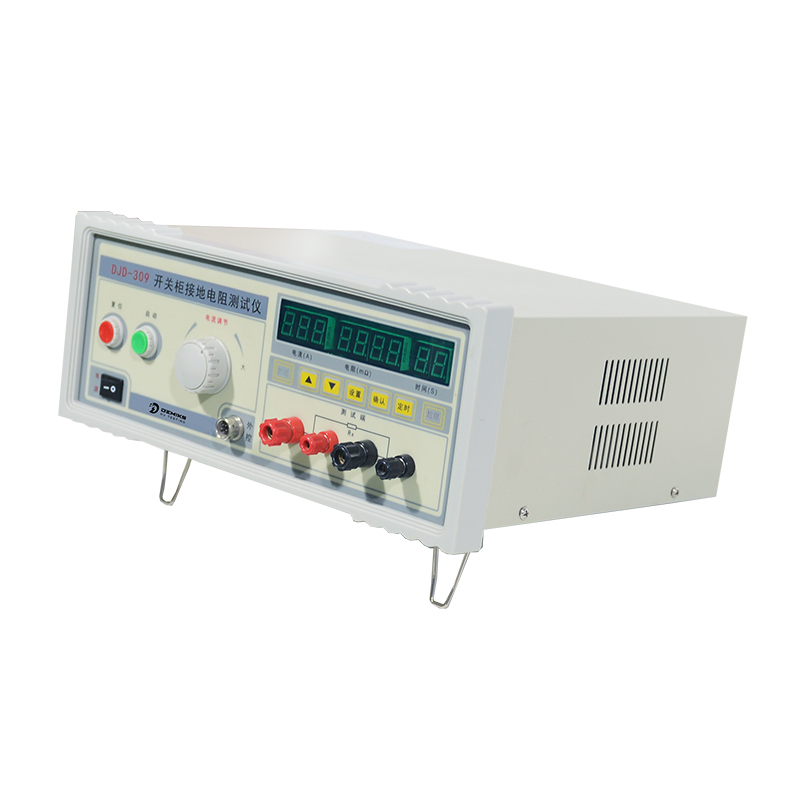

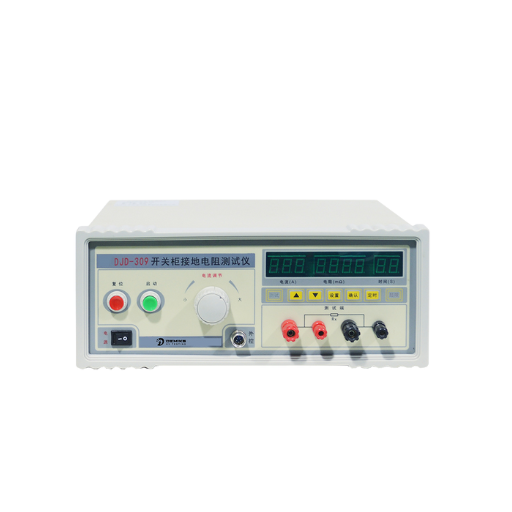

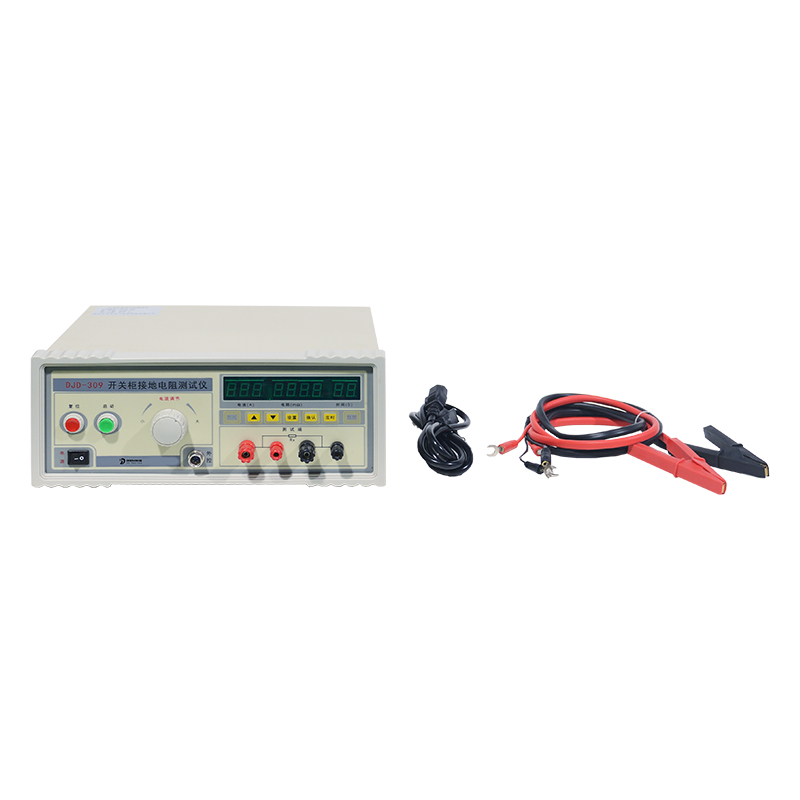

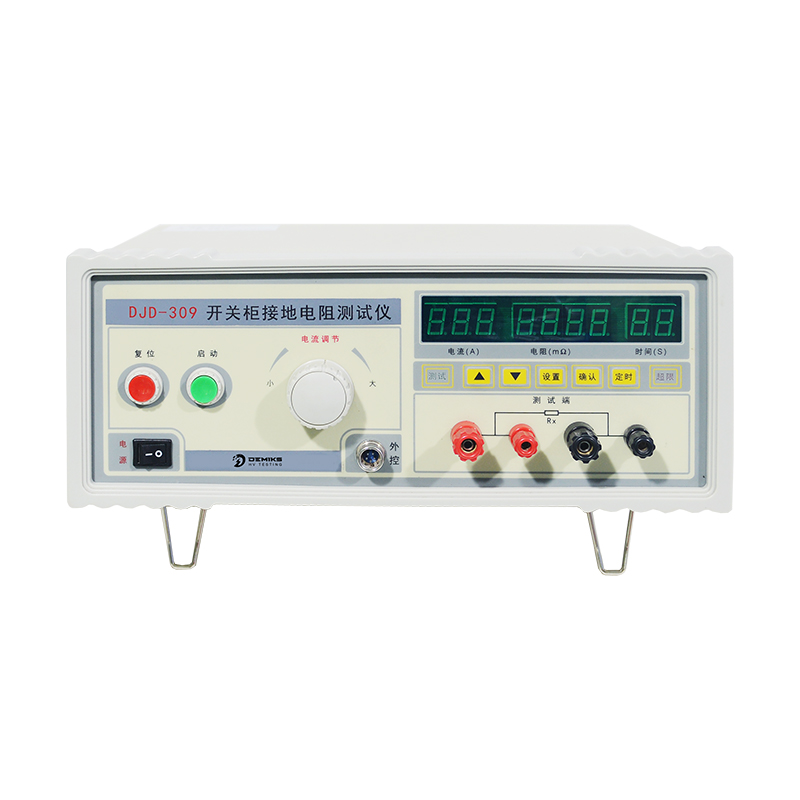

DJD-309 Switchgear Grounding Resistance Tester

Flexibility in Use: The DJD-309 Switchgear Grounding Resistance Tester can be configured for universal safety parameter assessment.
High Test Current Capability: A rigorous safety and resistance testing can be performed with this tester because test current is as high as 30A.
Time-Setting Functionality: Incorporating a timer, the instrument offers the possibility to set a timing value. Activation of the apparatus initiates a countdown, and upon reaching the designated time, the device resets to a base state without further action.

Item	Details
Output Voltage	AC 6V
Output Current	AC 30A (when the load is less than 200mΩ); AC 10A (when the load is greater than 200mΩ)
Test Resistance	20 - 200mΩ: 30A ±5%; 200mΩ - 600mΩ: 10A ±5%
Test Resistance Range	20 - 600mΩ ±5% (±3 digits)
Timing Range	1 - 99 seconds ±5%; Manual control
Operating Voltage	AC 220V±10% 50Hz

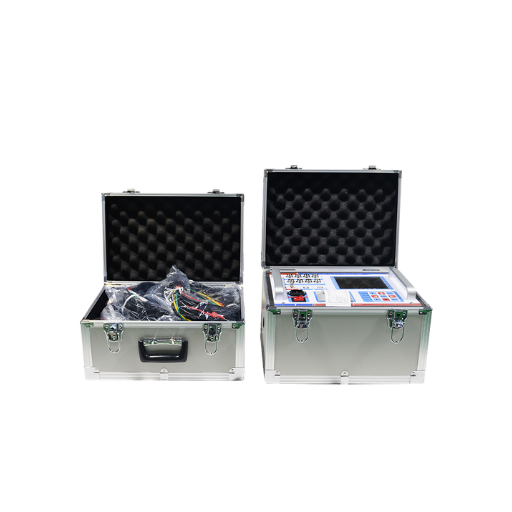

DTC-306

Comprehensive Compatibility：All brands and origins of SF6 switches, GIS systems, vacuum, and oil switches can have their mechanical features tested with absolute precision.
Efficient Data Collection and Storage： Mechanically produced data and waveforms can be contained and timestamped during collection using a real-time clock, stored on-site.
Enhanced Data Management：Detailed reports from tests can be compiled through PC software alongside customizable acceleration and deceleration for switch models during set parameters.
Advanced Testing Capabilities：Applicable for use in high-voltage areas, precise measurements are guaranteed with strong anti-interference provisions.

Category	Parameter Items	Range/Specification	Resolution	Error/Requirement
Operating Environment	Input Power	220V±10% 50Hz±10%	-	-
	Atmospheric Pressure	80 - 106 kPa	-	-
	Temperature	-10 - 40°C	-	-
	Humidity	≤50%RH	-	-
Safety Performance	Insulation Resistance	>2kΩ	-	-
	Dielectric Strength	1.5kV power frequency withstand voltage for 1 minute	-	No flashover or arcing
Basic Parameters	Time (200ns range)	200.00ns	0.01ns	±0.01ns±2 digits
	Time (2000ns range)	2000.0ns	0.1ns	±0.1ns±2 digits
	Time (20000ns range)	20000ns	1ns	±1ns±2 digits
	Speed (0 - 2m/s)	20.00m/s	0.01m/s	±0.1m/s±1 digit
	Speed (>2m/s)	20.00m/s	0.01m/s	±0.2m/s±1 digit
Stroke Parameters	Vacuum Circuit Breaker	50.0nm	0.1nm	Not specified
	SPB Circuit Breaker	300.0nm	1nm	±0.1nm±1 digit
	Oil - Immersed Circuit Breaker	600.0nm	1nm	±0.1nm±1 digit

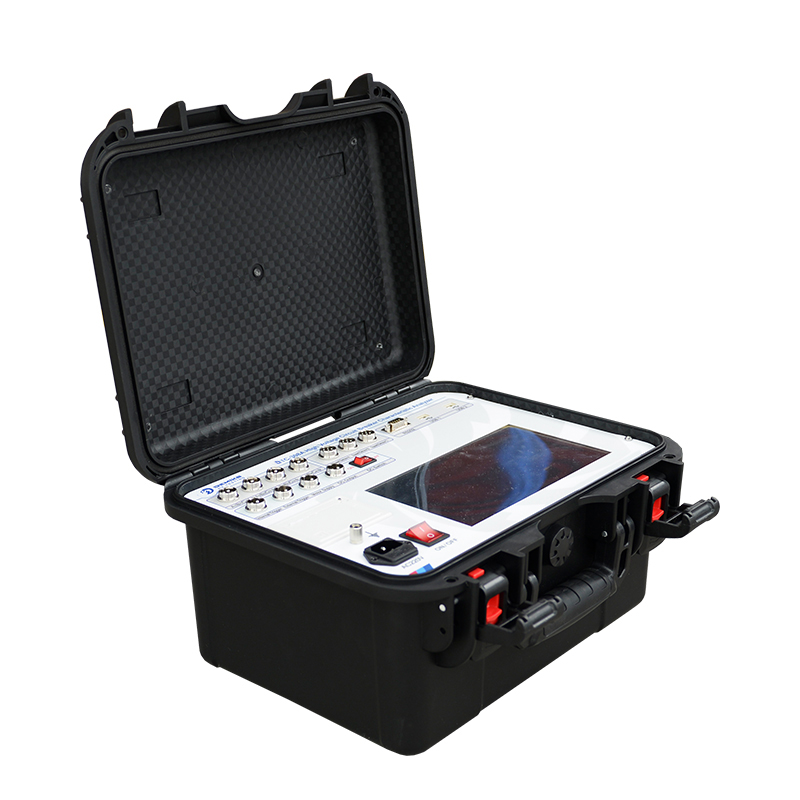

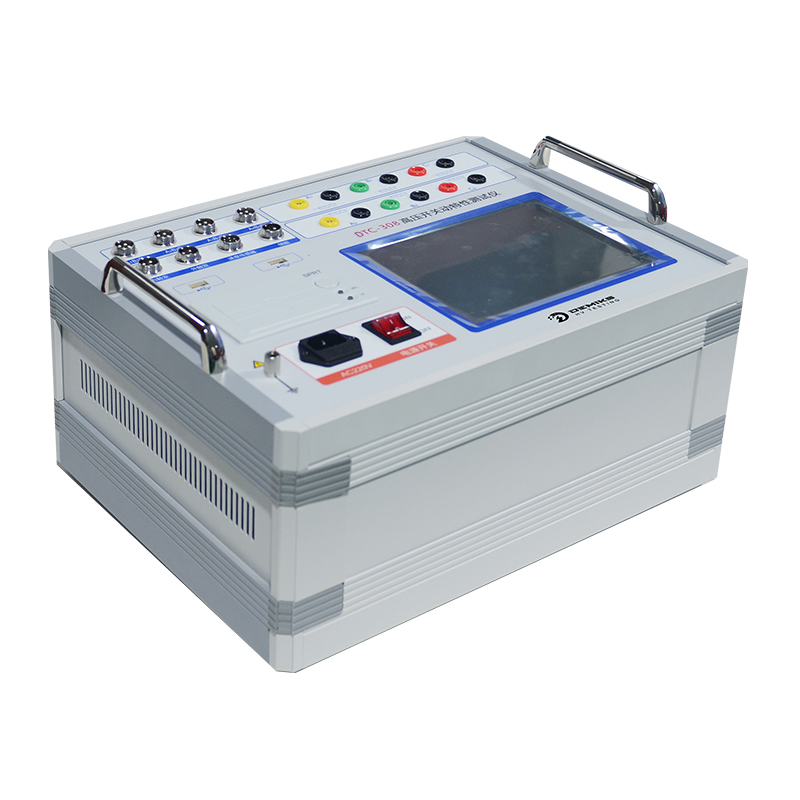

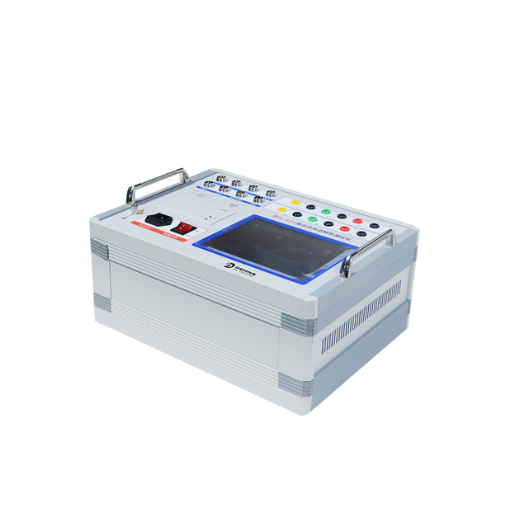

DTC-308

Powerful Embedded System: Features a 9-inch touch screen with fast boot-up, Windows OS, and multi-language support.
Integrated Power Supply: Voltage output of DC6-270V with adjustable 20A current. Also includes low current testing capability.
Comprehensive Data Handling: Storage capacity of 30,000 test groups. Other ports include USB, RS232, and Wi-Fi.
Reliable Performance: Guaranteed anti-interference operation in 500KV substations.

Category	Specific Items	Details
Time Measurement	12 - way Inherent Opening (Closing) Time	-
	Intra - phase Non - synchronism during Opening (Closing)	-
	Difference in Inter - phase Non - synchronism during Opening (Closing)	-
	Bounce Time (Number of Bounces) during Closing (Opening)	-
	Non - synchronism Test Range	0.10ms - 99ms, Resolution: 0.01ms
	Internal Trigger Test Range	0.10ms - 999ms, Resolution: 0.01ms; 1000ms - 9999ms, Resolution: 0.1ms; 10000ms - 200000ms, Resolution: 1ms
	External Trigger Test Range	0.01ms - 200s
	Accuracy within 1000ms	(0.05% ± 1 digit)
Speed Measurement	Instantaneous Opening (Closing) Speed	-
	Average Speed over a Specified Time Period (Stroke Segment or Angle Segment)	-
	Speed Measurement Range	1mm Sensor: 0.01 - 25.00m/s; 0.1mm Sensor: 0.001 - 2.50m/s; 345° Angle Sensor: 0.01 - 25.00m/s; Laser Sensor: 0.01 - 15.00m/s
Stroke Measurement	Moving Contact Stroke (Stroke) (3 - way Stroke Measurement Optional)	-
	Contact Stroke (Opening Distance)	-
	Overtravel	-
	Overshoot Stroke or Rebound Stroke	-
Measurement Range	Linear Sensor	50mm, Measurement Range: 0 - 50mm, Resolution: 0.1mm
	Rotary Sensor	345°, Measurement Range: 0 - 1000mm, Resolution: 0.08°. This sensor has a 15 - degree invalid area. When installed, the effective area of the sensor can be seen on the instrument, and the value is preferably displayed between 160 - 200 degrees.
	Accelerometer Measurement Range	0 - 300mm, Resolution: 0.1mm
Coil Current	Maximum Current	20A, Resolution: 0.01A
Coil Resistance	Measurement Range	0 - 2000Ω, Resolution: 0.01Ω
Instrument Power Supply	-	AC220V ± 10%; 50Hz ± 10%
DC Power Supply Output	-	DC6 - 270V Continuously Adjustable, DC24V ≤ 15A (Short - term), DC220V ≤ 20A (Short - term)
External Trigger Voltage	-	AC/DC10 - 300V, Current ≤ 120A
Isolator Switch Measurement Range	Voltage Output	DC6 - 270V (Adjustable)
	Power Supply Output Time	0.01 - 20s (Configurable)
	Maximum Acquisition Time for Breaker Contact Signals	200s
	Measurable Items	Closing and Opening Times of Breaker Contacts, Three - phase Non - synchronism, Bounce Time and Number of Bounces

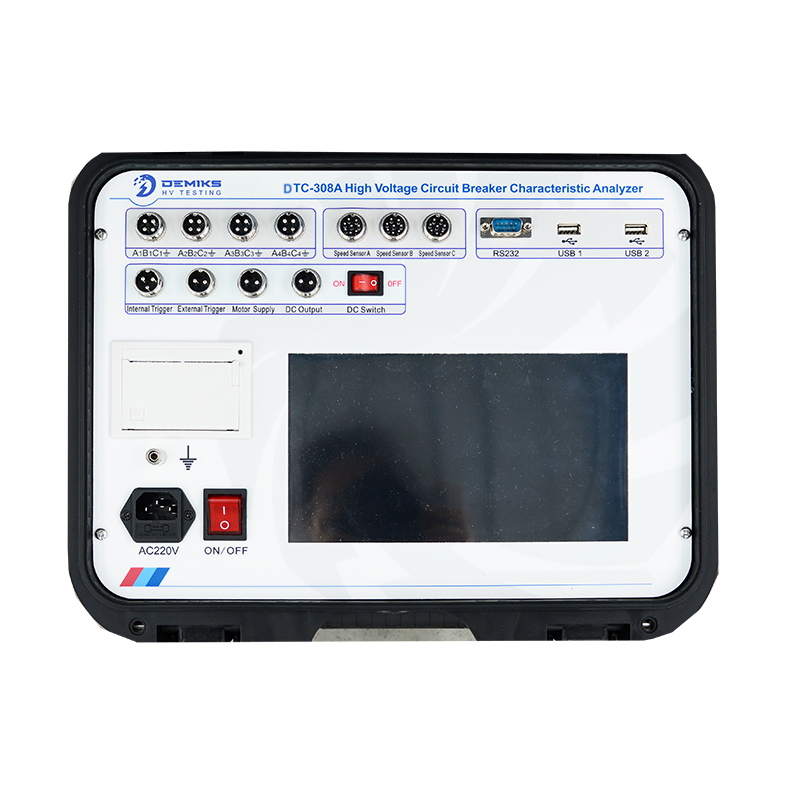

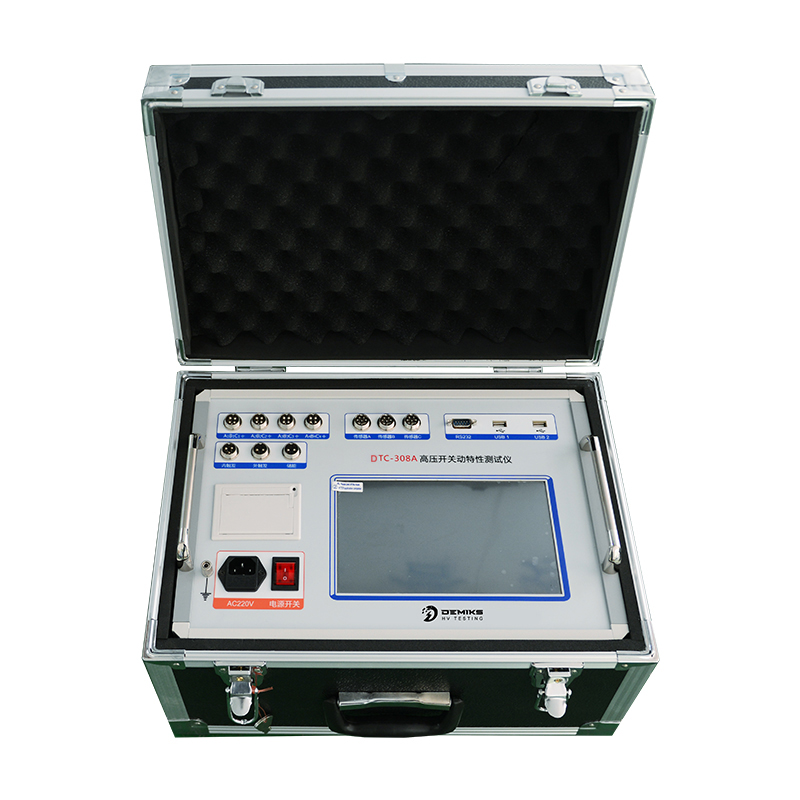

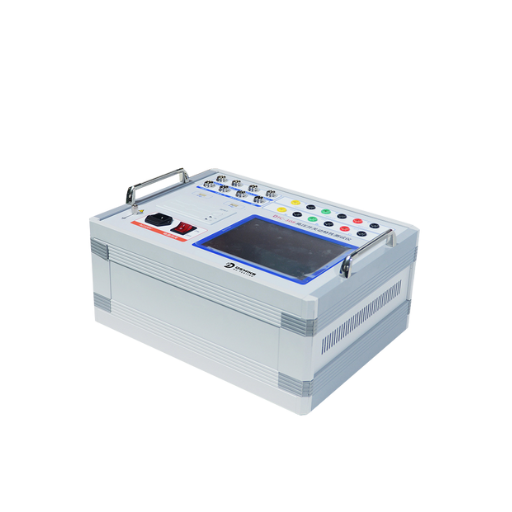

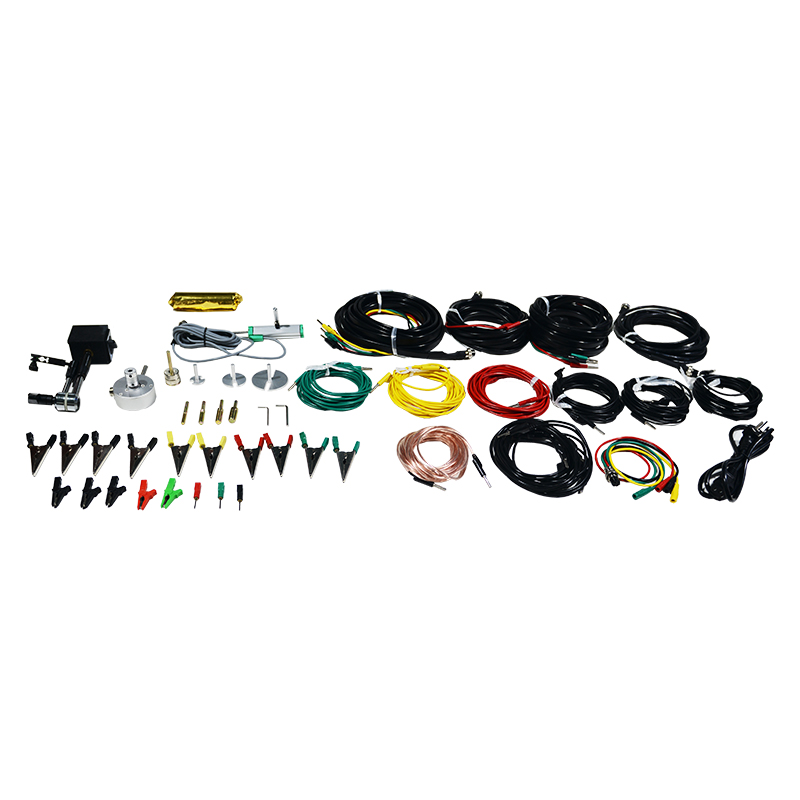

DTC-308A

Integrated Power Supply: Programmable DC6 - 270V, 20A, accommodates for a wider range of testing.

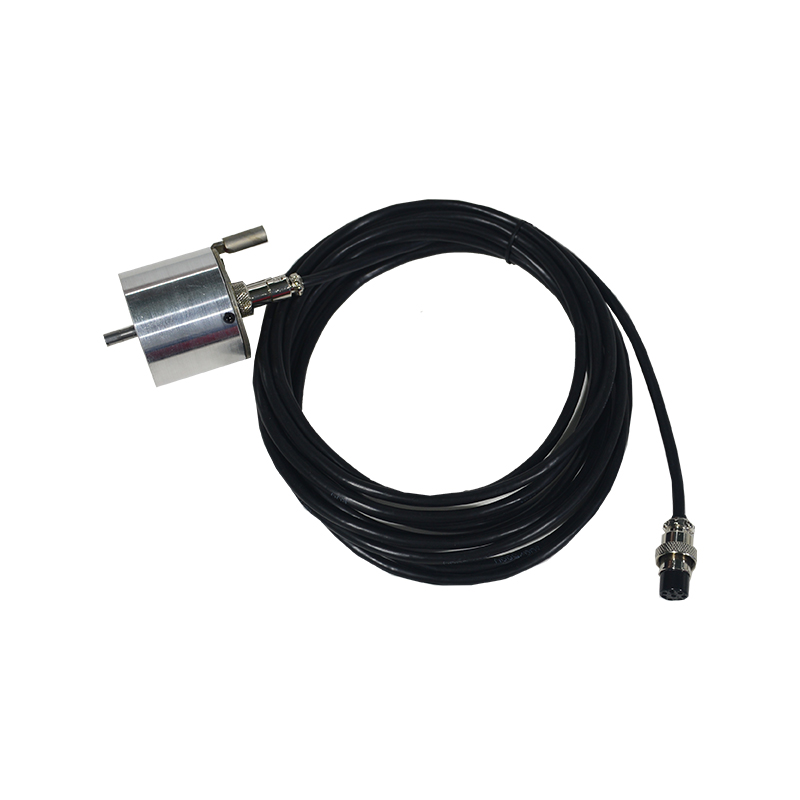

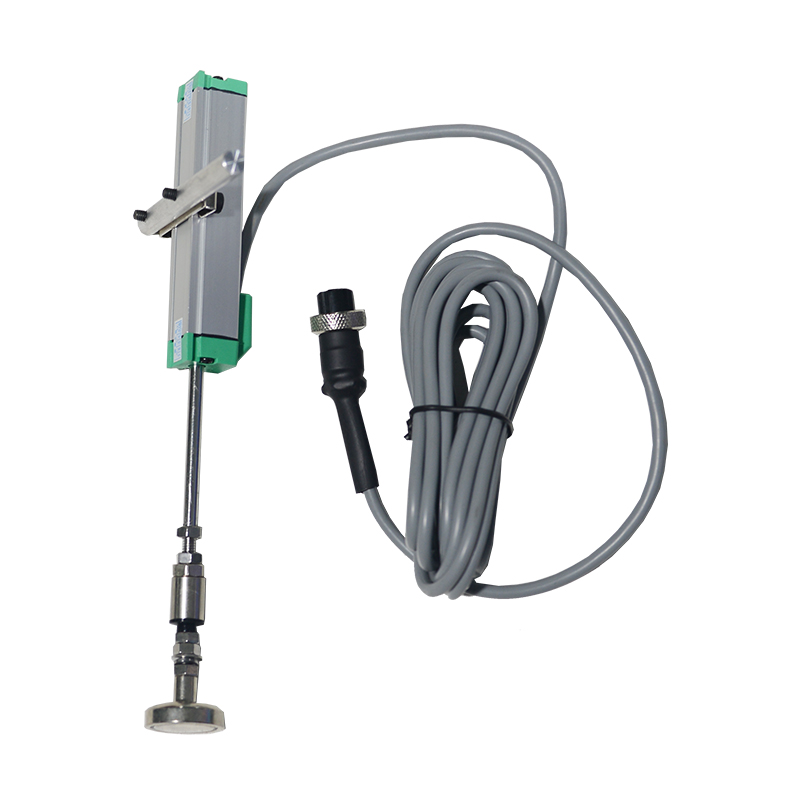

Comprehensive Sensor Suite: Linear, rotation, universal as well as optional laser sensors.
Extensive Compatibility: Compatible with all SF6, GIS, vacuum, and oil switches regardless of the region.
Data Storage & Connectivity: Maintains 30,000 test groups alongside USB, RS232 and optional WiFi.
High-Performance Embedded System: Enables Windows OS operations and fast booting. Also supports tri-lingual functions alongside a 9 inch touch screen.

High-Voltage Circuit Breakers: Understanding HV Circuit Breaker Types

To safeguard contemporary electric networks, high-voltage circuit breakers are critical for halting fault currents like short circuits. They are tailored to operational requirements, conditions of the environment, and criteria of performance. This article examines HV circuit breakers and their types, mechanisms and applications which will be useful for professionals and technicians in the industry to make reasoned decisions for different situations.
