Top Primary Current Injection Set Manufacturers and Suppliers in China

Primary Current Injection Set

Is Primay Current Injection Set something of interest to you? DEMIKS have got you covered. We are a premium manufacturer and supplier of testing devices in China. Each of their products along with Primary Current Injection Sets goes through reliability tests to guarantee mechanical precision and optimal efficiency. Give them a call today!

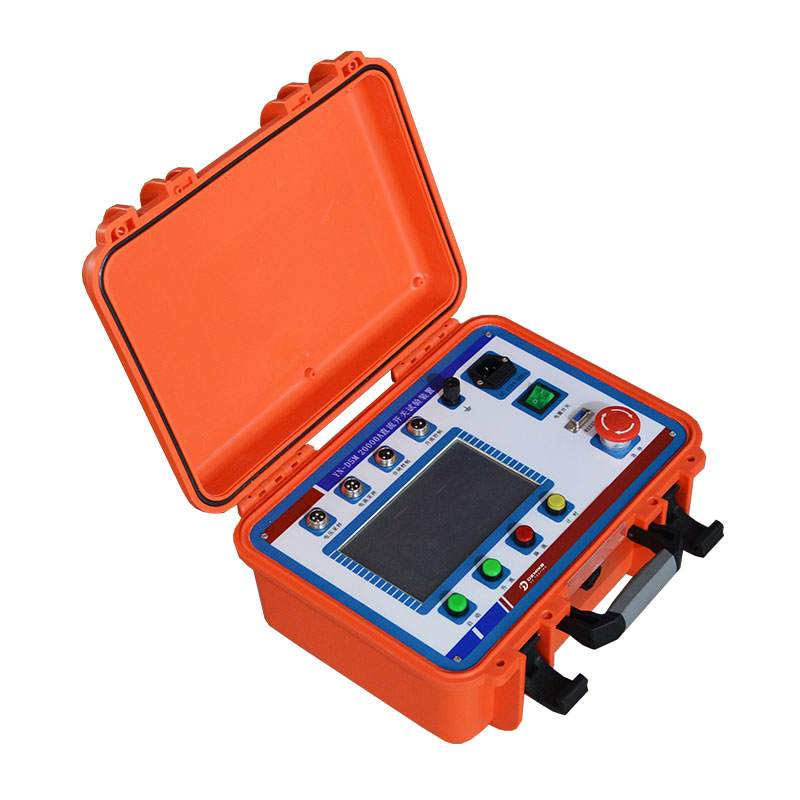

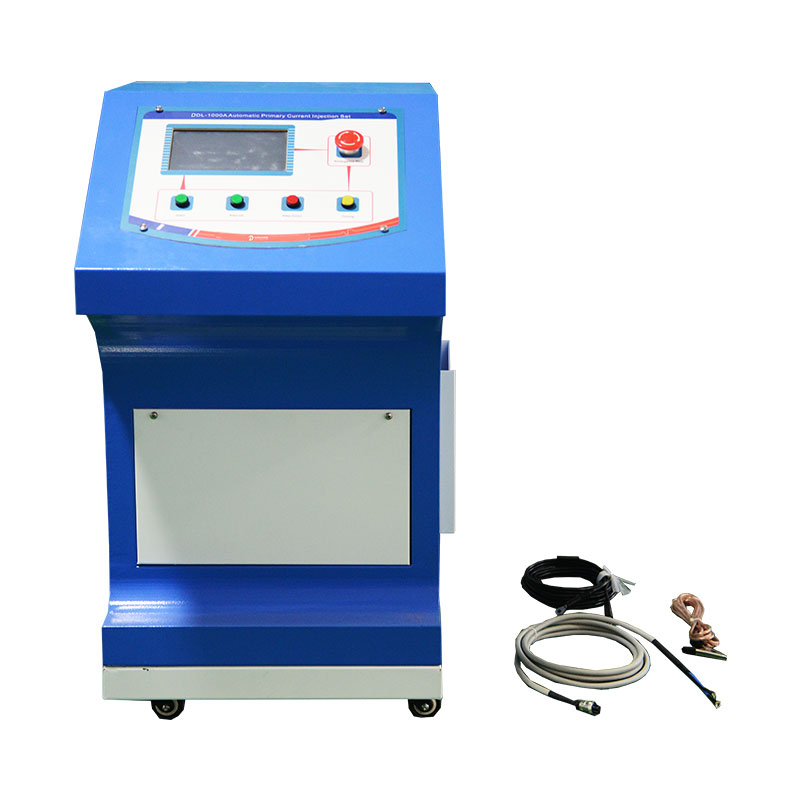

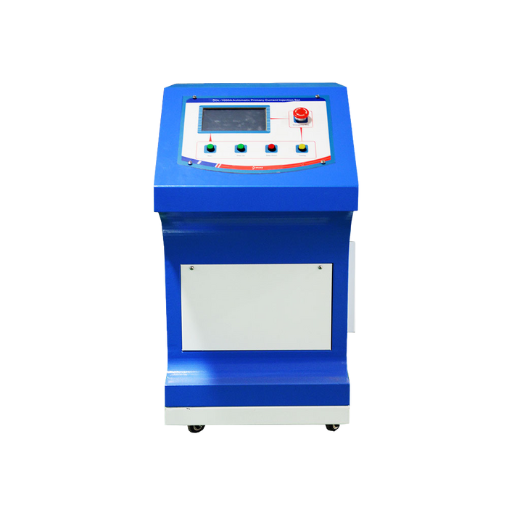

DDL-1000A ( Fully Automatic )

Intelligent Control and Display: Displays data through intelligent control and flexible operation on a large backlit LCD screen showing voltage, current, and time.
Safety and Protection: Over-current protection with grounding detection includes sound and visual error diagnostics that ensures reliability.
Testing Features: High-precision results for sophisticated analysis are guaranteed with flexible step current raise tests, automated timing, and visually clear result presentation.
Compact and Durable Design: Lightweight and small while incorporating interference resistance enhancing their reliability in harsh conditions.

Rated Voltage	AC220V~380V	Output Current	0~30000A	Display Method	7inch true color HD digital screen	Data Storage	60 groups
Capacity	10kVA~500kVA	Voltage Precision	±1.0	Touch Method	Resistive touch, more accurate	Password	Multi-level permission setting
Output Voltage	0~20V	Current Precision	±1.0	Operation Method	Auto, manual	DDL-Z without printer	DDL-Z without printer

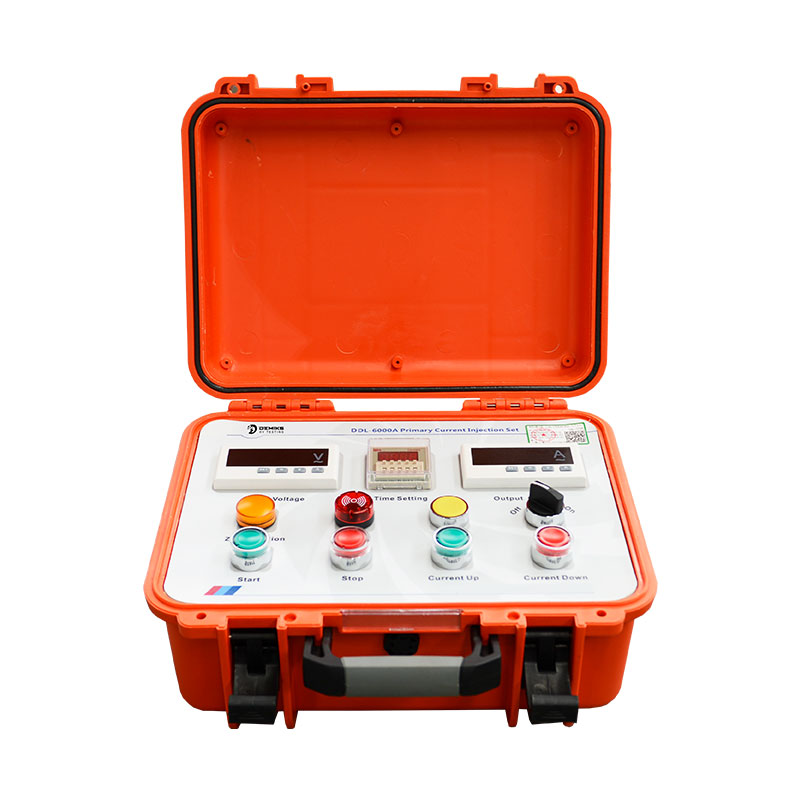

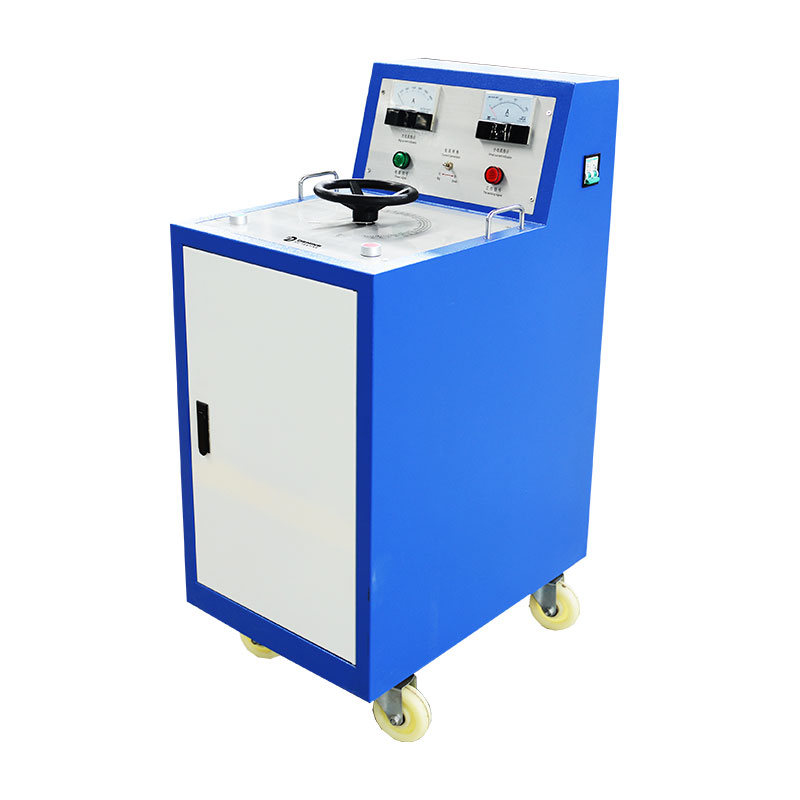

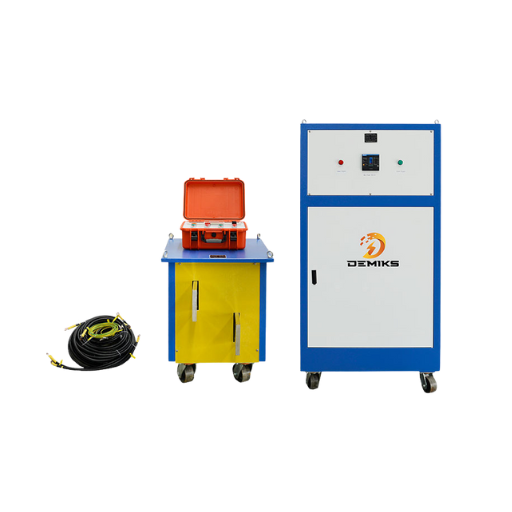

DDL-6000A ( Long-term Operation )

Controls with intelligence: Voltage, current, and time are displayed on the large LCD with backlight, enabling intelligent control.
Testing Flexibility & Degree of Safety: Contains automatic/manual current tests, over-current protection, as well as safety measures such as grounding detection.
Precision and Reliability: Stable performance is ensured by high precision sensors, anti-interference technology, and error diagnostics.
Easy Operation: Setting is easy due to the use of touch panel buttons, while the display provides structured.

DDL-6000A ( Long-term Operation )-1

DDL-6000A ( Long-term Operation )-2

DDL-6000A ( Long-term Operation )-3

DDL-6000A ( Long-term Operation )-4

DDL-6000A ( Long-term Operation )-5

DDL-6000A ( Long-term Operation )-6

Specification	Details
Rated Voltage	AC220V~380V
Output Current	0~30000A
Display Method	7-inch true color HD digital screen
Data Storage	60 groups
Capacity	10kVA~500kVA
Voltage Precision	±1.0
Touch Method	Resistive touch, more accurate
Password	Multi-level permission setting

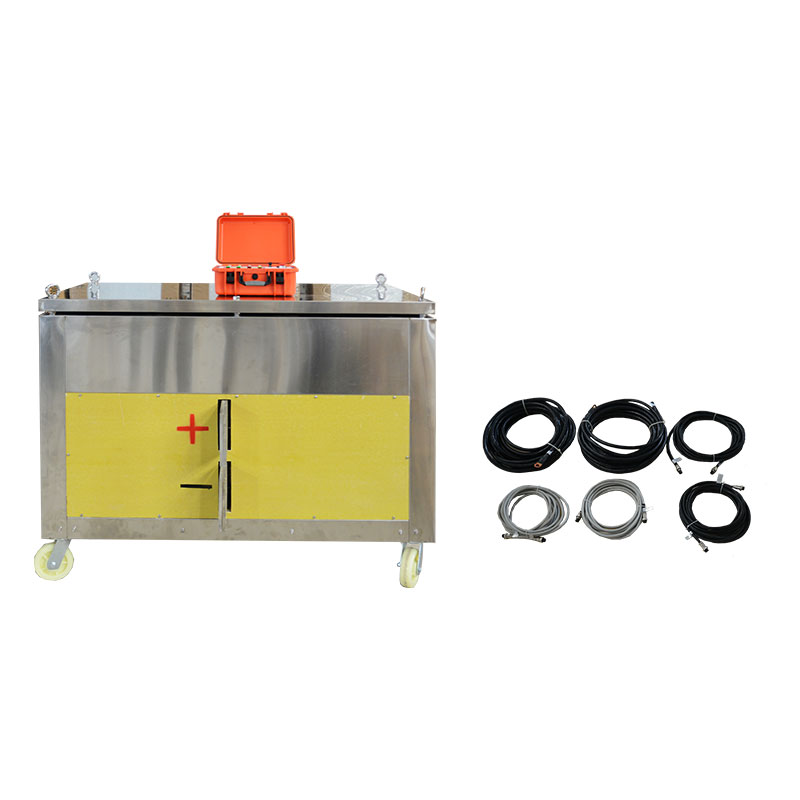

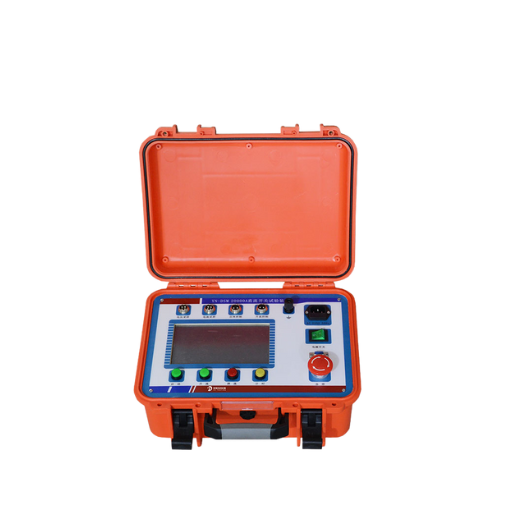

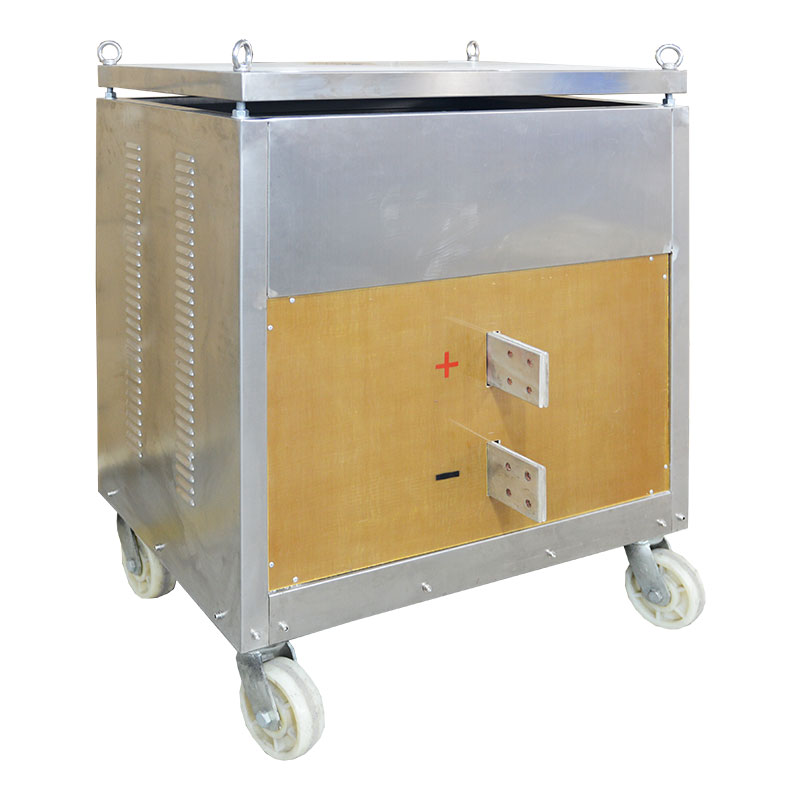

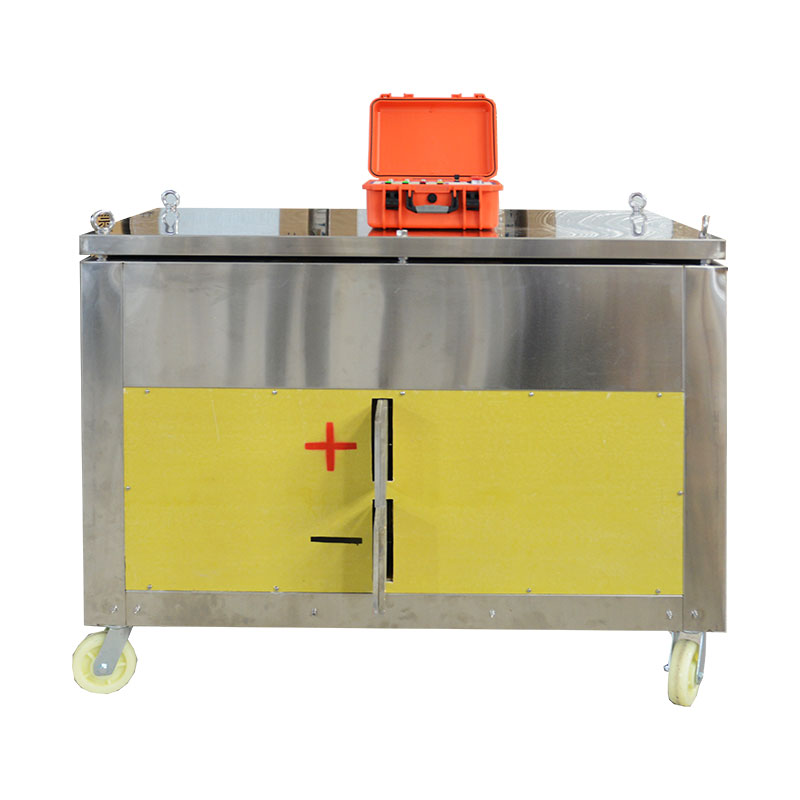

DDL-20000A DC Primary Current Injection Set

Clear Display Interface: The voltage, current, time and other parameters are shown clearly on the large LCD screen with a backlight.
High Precision: The latest sensors and measuring chips guarantee the utmost precision.
Reliable Performance: Utilizes advanced anti-interference technology and automatic error diagnosis combined with strong adaptability.

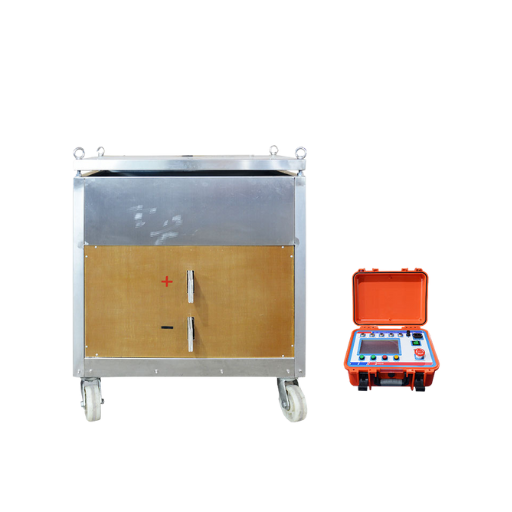

DDL-DC-3000A

Application: Critical in power plants, substations and laboratories for electrical debugging due to small size and easy maintenance, light weight.
Display: Voltage, current, time and settings are displayed on large LCD with backlight.
Control: Flexible/current tests combined with automatic and manual settings controlled by touch panel are executed with intelligent system.
Performance: Achieves efficient testing with customizable settings, real-time displayed data, and high-precision sensors.

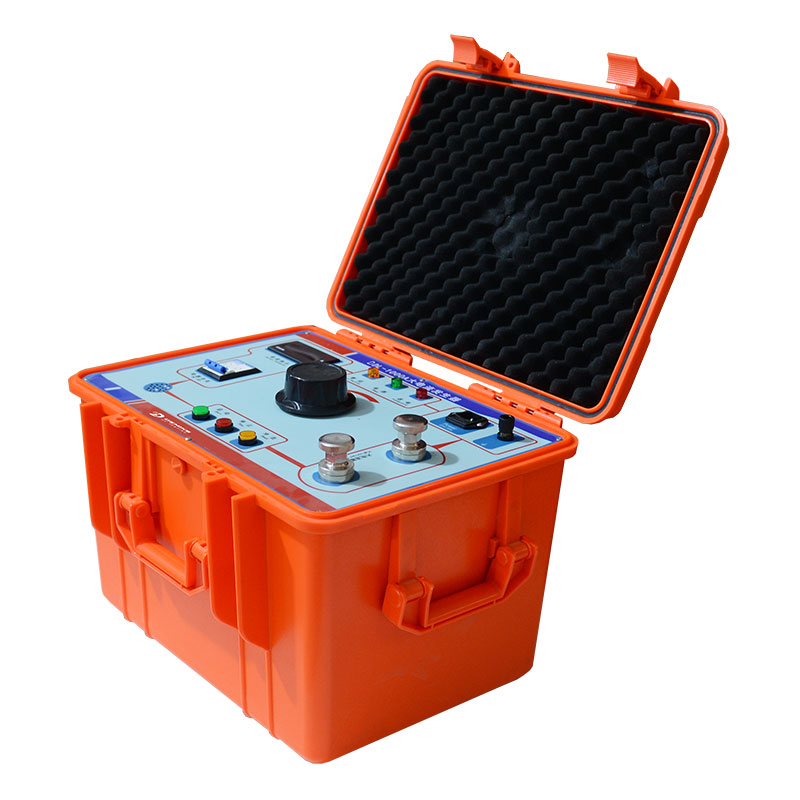

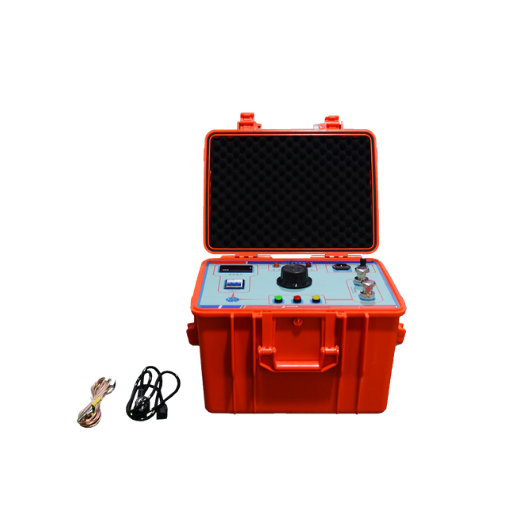

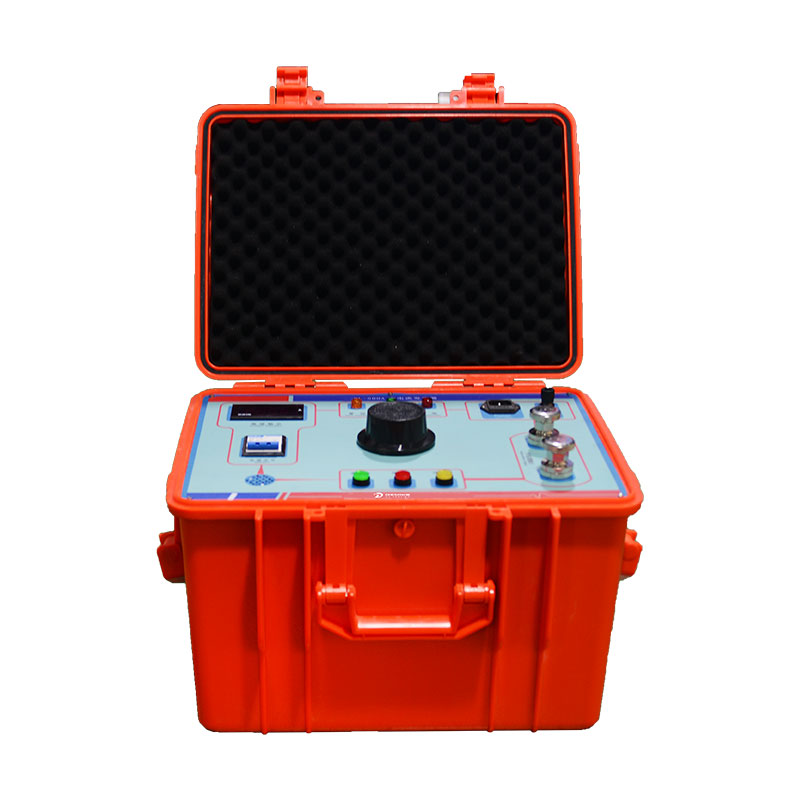

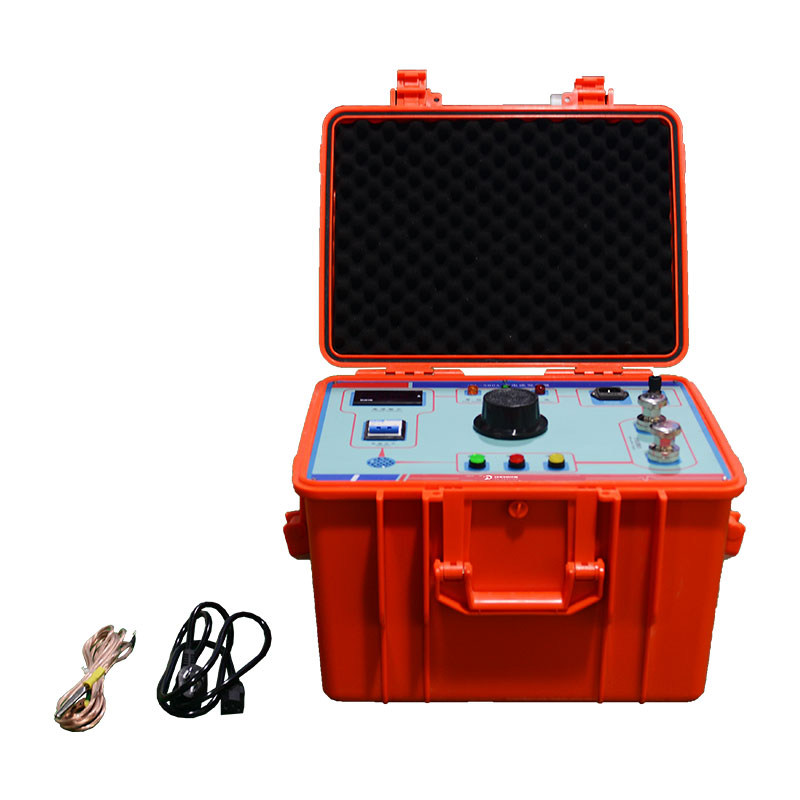

Manual Primary Current Injection Set(Box Type 500A)

Time Settings Adaptation: Time relays enable the setting of specific starting and stopping conditions.
Options For Testing: Provides current step-up testing, both manual and automatic, alongside rapid break impact tests.
Basic and Advanced Features: Protection against over current is included with the addition of alarm and auto reset features.
Communication with Diagnostics: Supports error diagnosis and remote communication along with optional diagnostic interfaces.

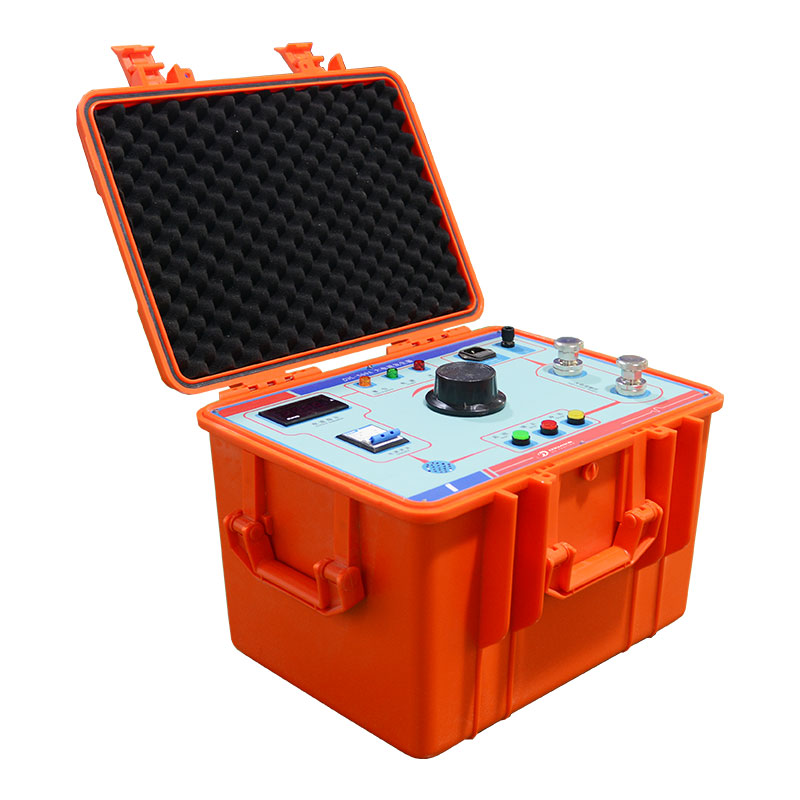

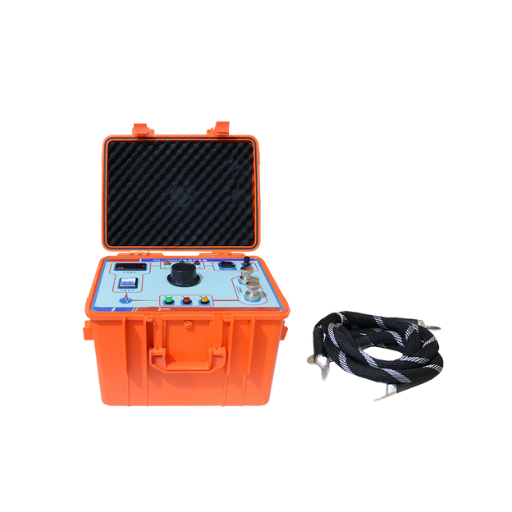

Box Type 1000A

Compact Structure: Easy to handle, maintain, and carry due to reduced weight and size.
Flexible Usage: Automatic, manual, and quick-break tests are all supported.
User Adjustable Settings: Upper limits and current as well as time can be preset as required.
Interlocked Alarms: Remote communication and interlock alarms are available as optional enhancements.

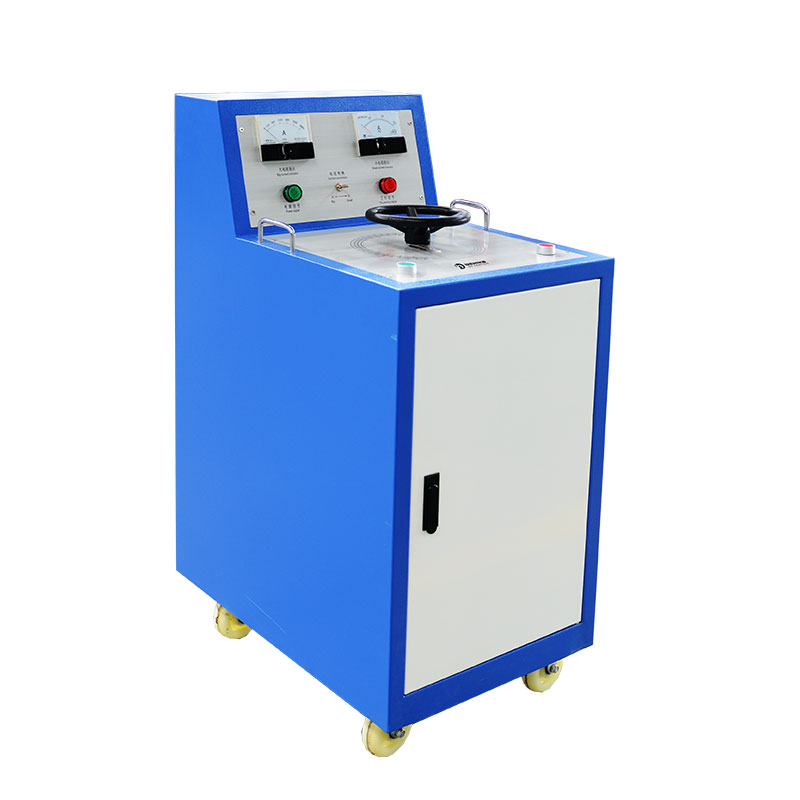

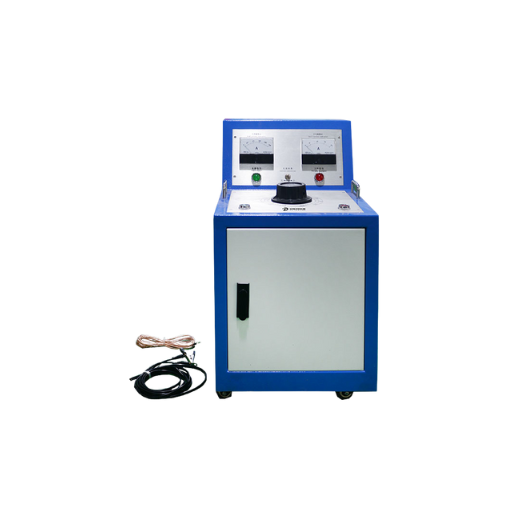

DDL-1000A (Desktop)

Application: Critical to electrical troubleshooting in the power plant, substation, laboratory, and within the manufacturing industry, permitting limited use because of compact size and lightweight construction which also enables easy servicing.
Precision Controls: Permits arbitrary start/stop defined by set conditions, output current, and resistance time. Advanced sensors and control chips allow for ease in the calculations.
Real Time Display: Current and time results are shown clearly to allow the user to monitor progress intuitively.

DDL-1000A (Desktop) -1

DDL-1000A (Desktop) -2

DDL-1000A (Desktop) -3

DDL-1000A (Desktop) -4

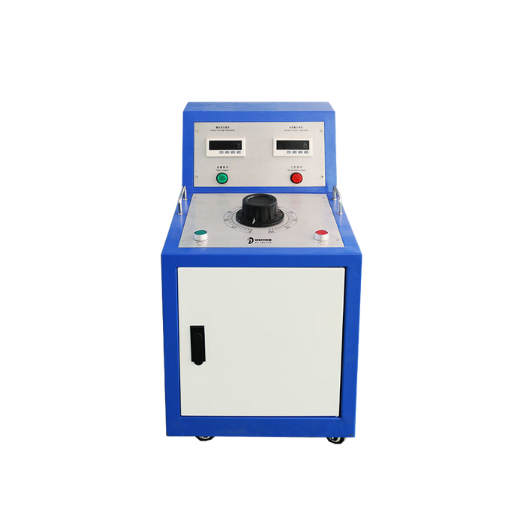

DDL-1500A (Desktop, Digital Display)

Custom Timing: Fully configurable time relay start and stop conditions.
Power Down Reset: Audible and visual limits notify command reset and return to set conditions.
Set limits on current: Automatically returns to set limits on currents with audible and visual alarms.
High Grade: Enhanced collection chips sited fully integrated with accuracy sensors.
Environmentally Adaptable: Performs under tough conditions.

DDL-1500A (Desktop, Digital Display)-1

DDL-1500A (Desktop, Digital Display)-2

DDL-1500A (Desktop, Digital Display)-3

DDL-1500A (Desktop, Digital Display)-4

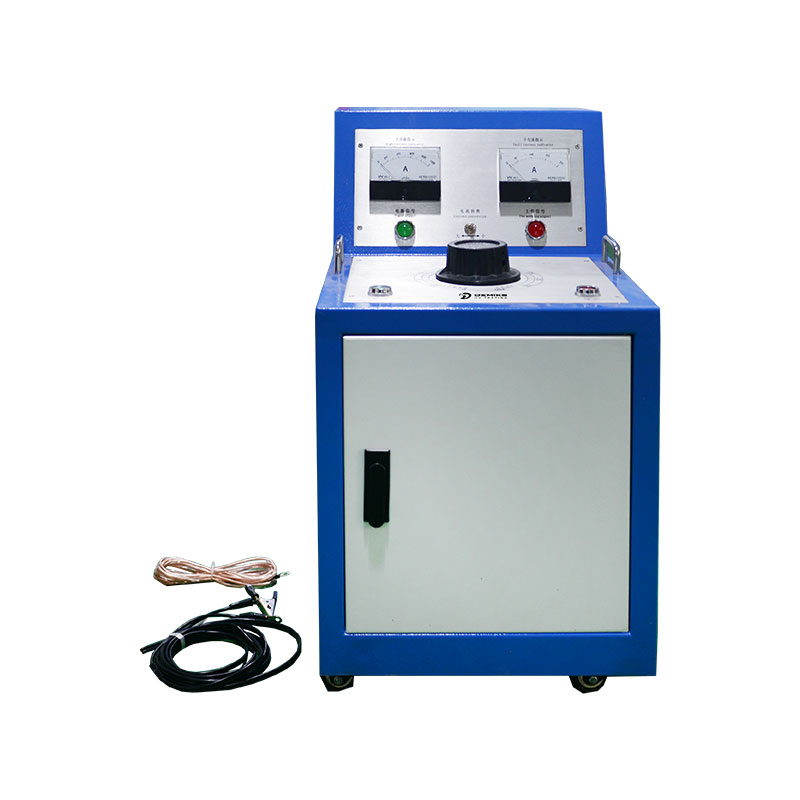

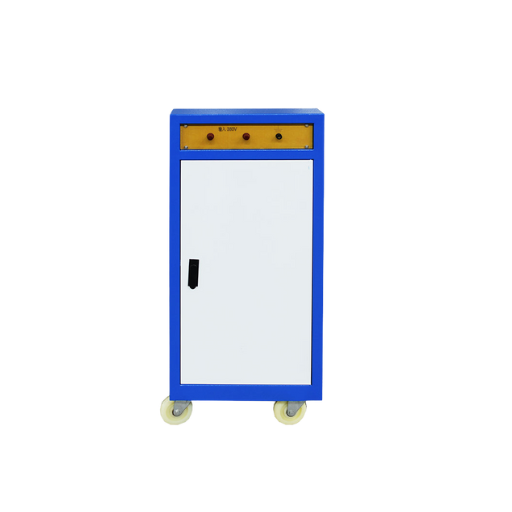

DDL-3000A (Desktop)

Time Relay: Customizable start/stop conditions for efficient system control.
Easy Maintenance: Consistent over sustained periods of use, requiring little maintenance.
Over-Current Protection: Target current, upper limits, and resistance time can be set.
High Accuracy: Employs precision sensors combined with highly advanced chip technology.

DDL-3000A (Desktop)-1

DDL-3000A (Desktop)-2

DDL-3000A (Desktop)-3

DDL-3000A (Desktop)-4

DDL-3000A (Desktop)-5

DDL-3000A (Desktop)-6

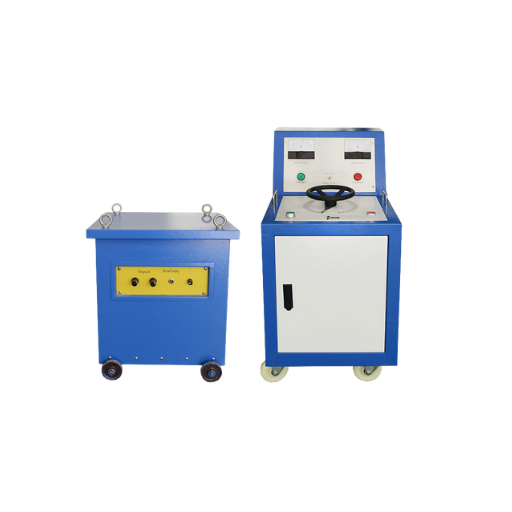

DDL-5000A (Desktop,Separated Without Wires)

High Precision Sensors: Information collected is precise which ensures the results give credible outcomes.
Remote Communication Option: Provides possibility of controlling and watching from a distance.
Grounding Detection: Confirms safeness with grounding and zero return check.
Customizable Time Relay: Allows users to set condition for start/stop of relay.
Anti-Interference Technology: Capability to sustain challenging electro magnetic area.

Understanding the Primary Injection Test: A Comprehensive Guide

Circuit breakers, relays, and transformers are vital electrical equipment which require the rigorous method known as primary injection testing to ensure absolute reliability and saftey. This guide delves into the method’s technical frameworks and applications, exploring best practices while underscoring system efficiency.
