High Voltage Tester

Searching for competitively priced high-voltage testers? DEMIKS is a leading manufacturer and supplier in China that is proud to provide the latest high-voltage testing technology. Their extensive product range guarantees accurate measurements and dependable results, which makes DEMIKS the preferred choice for many professionals. Contact them to learn more about their offerings and how DEMIKS can fulfill your requirements.

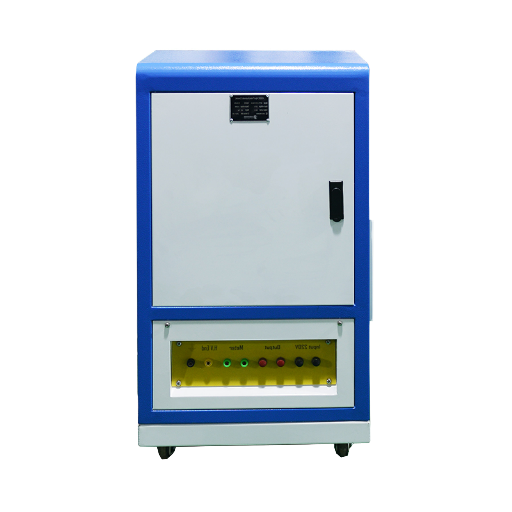

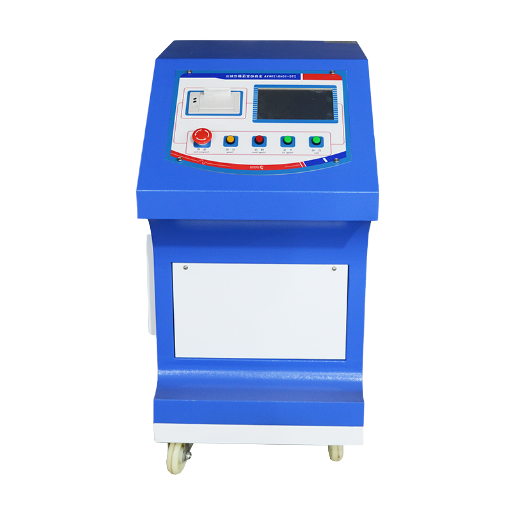

TC-104D-10kVA High Voltage Tester( Intelligent Console)

Objectives and Uses: The TC-104D-10kVA High Voltage Tester is needed auxiliary equipment for light testing transformers, and is extensively used in power supply enterprises, factories, metallurgy, electric power enterprises, and railways.
Main Features: Exceptional performance, safety, and functionality, in addition to streamlined operation, eas maintenance, easy to move, and good looking structure.
Sofisticated Technology: Uses modern microelectronics in its processing, which allows operations to be preset, and fully automated testing is carried out without any manual supervision.
Interface Design: Simplified manipulation of the device is done through an all Chinese interface which streamlines testing operations.

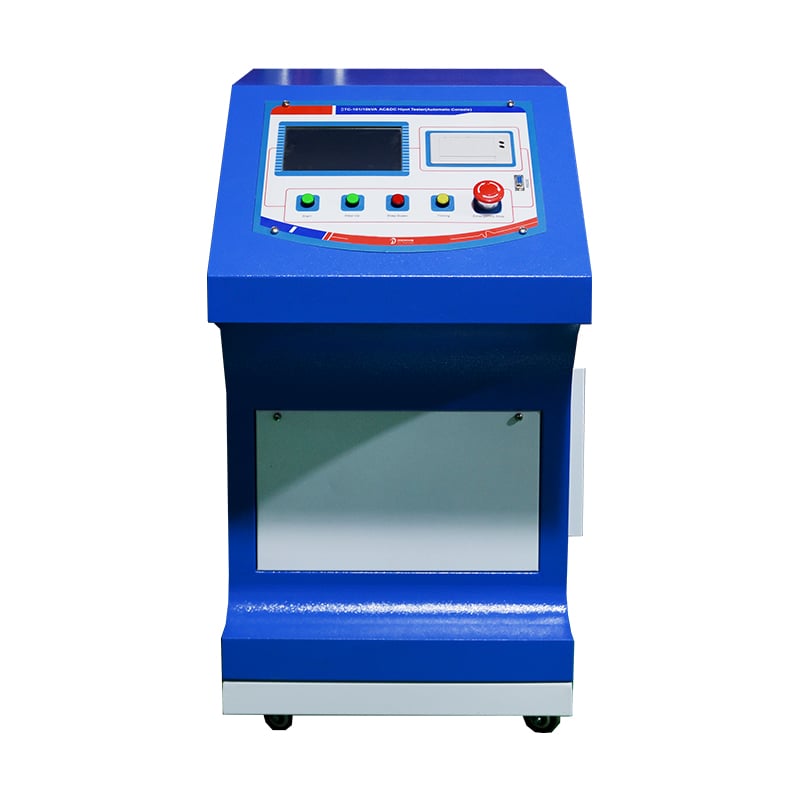

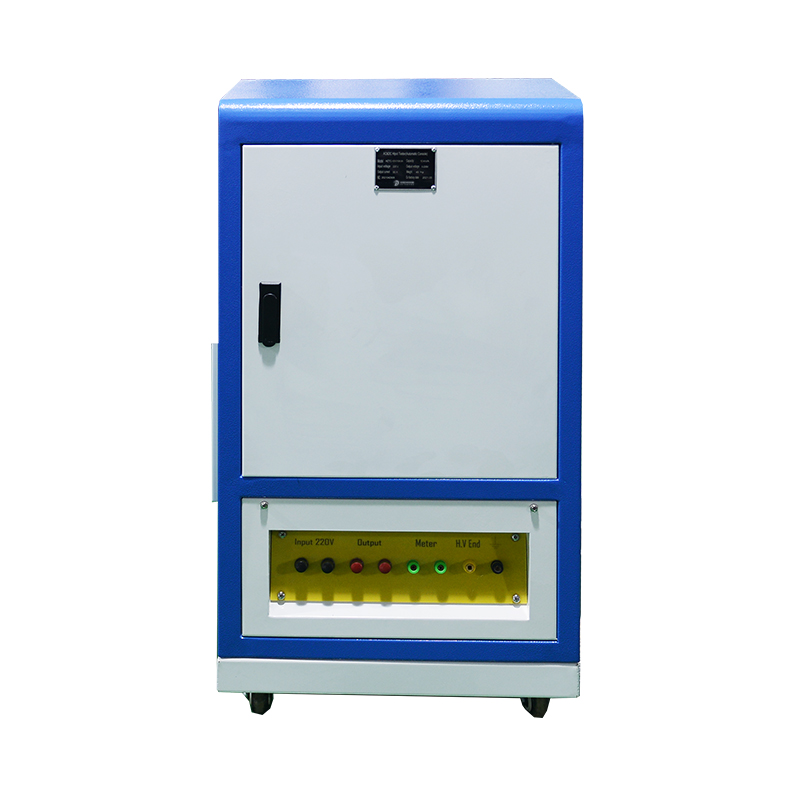

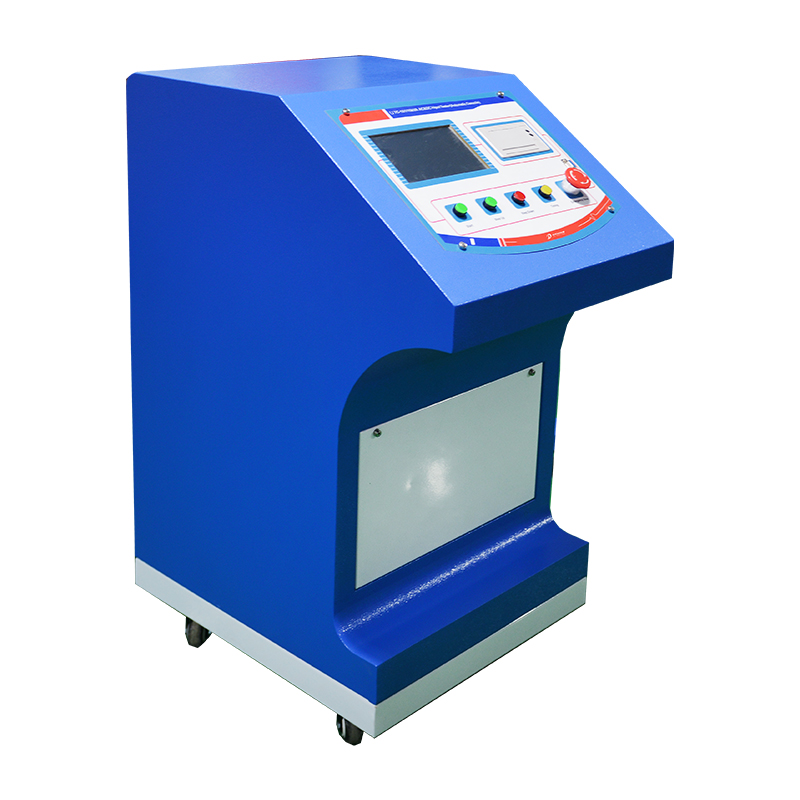

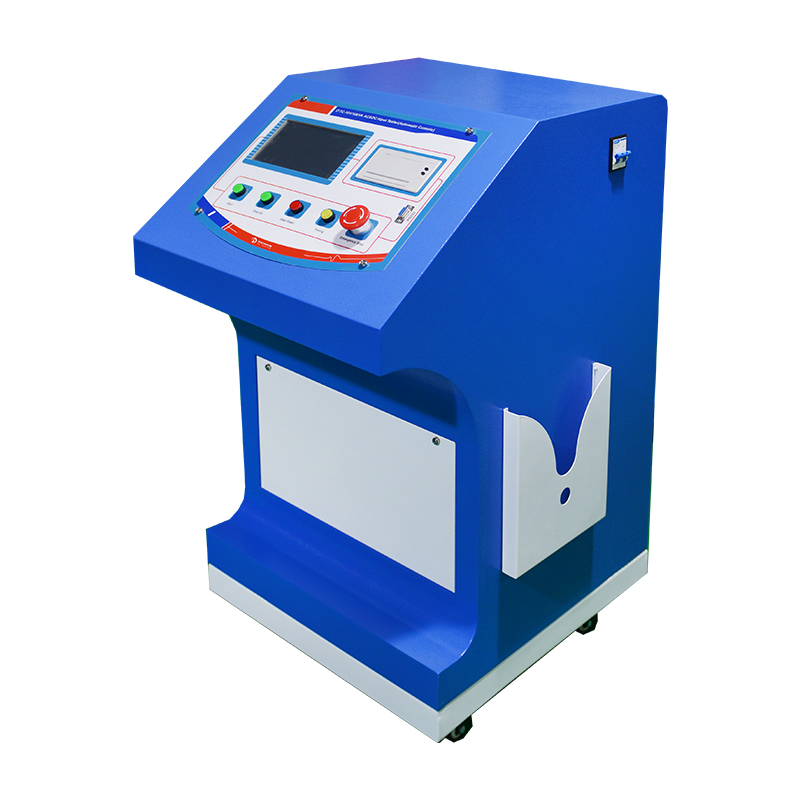

TC-104D-10kVA High Voltage Tester( Intelligent Console) - 1

TC-104D-10kVA High Voltage Tester( Intelligent Console) - 2

TC-104D-10kVA High Voltage Tester( Intelligent Console) - 3

TC-104D-10kVA High Voltage Tester( Intelligent Console) - 4

1	Input voltage		AC 220V±10% 50/60Hz
2	Capacity		10kVA
3	Output voltage		0~250V adjustable
4	Voltage accuracy		±0.5%
5	Current accuracy		±0.5%
6	Display mode		7inch color HD digital screen
7	Touch mode		resistive touch is more accurate
8	Operating mode		auto/manual
9	Data storage		60 groups
10	Password		multilevel purview setting
11	multi-level protection,safer to use
Input voltage protection		Input current protection		HV voltage protection
HV current protection		HV over-voltage protection		HV flash-over protection

TC-104D-10kVA High Voltage Tester( Intelligent Console)

Objectives and Uses: The TC-104D-10kVA High Voltage Tester is needed auxiliary equipment for light testing transformers, and is extensively used in power supply enterprises, factories, metallurgy, electric power enterprises, and railways.
Main Features: Exceptional performance, safety, and functionality, in addition to streamlined operation, eas maintenance, easy to move, and good looking structure.
Sofisticated Technology: Uses modern microelectronics in its processing, which allows operations to be preset, and fully automated testing is carried out without any manual supervision.
Interface Design: Simplified manipulation of the device is done through an all Chinese interface which streamlines testing operations.

1	Input voltage		AC 220V±10% 50Hz
2	Capacity		20kVA
3	Output voltage		0~250V adjustable
4	Voltage accuracy		±0.5%
5	Current accuracy		±0.5%
6	Display mode		7inch color HD digital screen
7	Touch mode		resistive touch is more accurate
8	Operating mode		auto/manual
9	Data storage		60 groups
10	Password		multilevel purview setting
11	multi-level protection,safer to use
Input voltage protection		Input current protection		HV voltage protection
HV current protection		HV over-voltage protection		HV flash-over protection

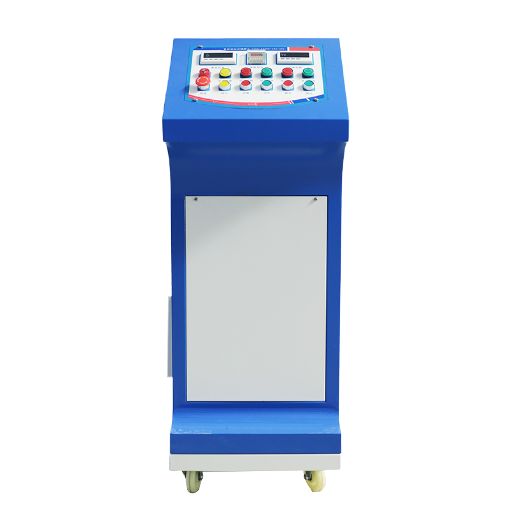

DTC-101-50kVA High Voltage Tester (Manual Console)

General Information on the Product: A light test transformer with a manual console enables effortless servicing. It is highly portable and provides optimum performance, safety, and reliability. Suitable for electric maintenance in power plants, railways, metallurgy, and similar industries.
Most Important Advantages: Manual boost type console with monitoring (current meter, voltage indicator, power/timing indicators) alongside various protection functions including over current protection and zero voltage start.
New Features: A modern time relay with a broader timing range and a new current relay enhance accuracy and safety.
Construction Advantages: Designed to achieve maximum usability, the device is lightweight, compact, and durable.

		power source			output			Referenc e
Model Specifications	Capacity	Phase	（V）	（A）	（V）	（A）	operation	Weight	remark
DTC-10/220	10	1	220	45	0-250	40	Manually	50
DTC-15/380	15	2	380	39	0-430	35	Manually	60
DTC-20/380	20	2	380	53	0-430	47	Manually	65
DTC-25/380	25	2	380	66	0-430	58	Manually	75
DTC-30/380	30	2	380	79	0-430	70	Manually	85
DTC-50/380	50	2	380	132	0-430	116		130
DTC-100/380	100	2	380	263	0-430	233		50
DTC-150/380	150	2	380	395	0-430	349		50	Electric Tune Press Device Outside with
DTC-200/380	200	2	380	526	0-430	465	Manually Electric	50
DTC-250/380	250	2	380	658	0-430	581	Electric	50
DTC-300/380	300	2	380	789	0-430	698	Electric	50
Note: My company to be customized with different specifications and special features of the product.

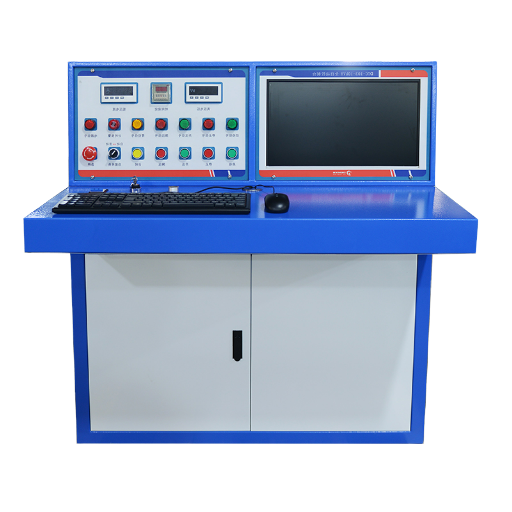

DTC-103(30kVA) Automatic Transformer Control Console

Objective: The DTC-103(30kVA) Automatic Transformer Control Console is intended as main ancillary equipment to light test transformers and is best suited for power supply companies, enterprises, factories and their Maintenance divisions
Unique Characteristics: It provides effortless operation and maintenance alongside exceptional primary performance metrics as well as safety, dependability, extended operational lifetime, ease of transport and minimalist aesthetics.
Sophisticated Technology: It provides sophisticated microelectronics processing enabling robotic execution of pre-defined tasks as well as fully automated testing with a Chinese language menu.
Use Cases: Ideal for maintenance power supply for metallurgy, power plants, railways, and other large industries.

1	Supply voltage	AC 380V
2	Capacity	30KVA
3	Output voltage	0—430V
4	Voltage Accuracy	±1%
5	Current Accuracy	±1%
6	Display Method	19 inch industrial computer
7	Operation Method	Automatic and manual

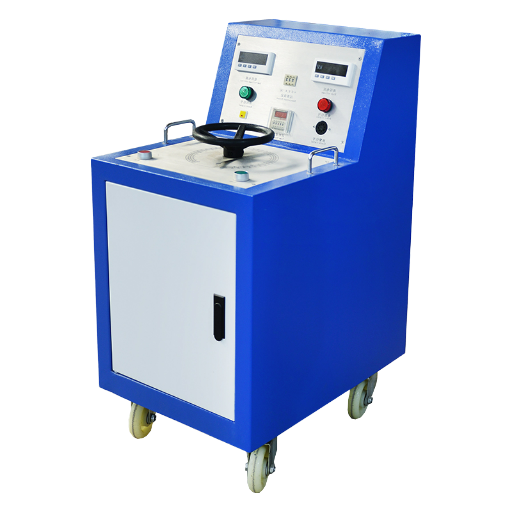

DTC-101-30kVA High Voltage Tester (Manual digital display Console)

Product Overview: Light test transformer featuring a maintenance friendly and safe Manual Digital Display Console with Reliability and Portability. Suitable for electrical maintenance of power plants, railways and metallurgy industries.
Key Features: Manual boost type console with monitoring (indicators for current, voltage, power, timing) and the following protective functions: over-current protection and zero voltage start.
Advanced Components: New time relay with wider timing range and new current relay with improved accuracy and safety strengthened the equipment.
Design Benefits: Convenience and efficiency derive from being compact, light, easy to move, durable and versatile

		power source			output			Referenc e
Model Specifications	Capacity	Phase	（V）	（A）	（V）	（A）	operation	Weight	remark
DTC-10/220	10	1	220	45	0-250	40	Manually	50
DTC-15/380	15	2	380	39	0-430	35	Manually	60
DTC-20/380	20	2	380	53	0-430	47	Manually	65
DTC-25/380	25	2	380	66	0-430	58	Manually	75
DTC-30/380	30	2	380	79	0-430	70	Manually	85
DTC-50/380	50	2	380	132	0-430	116		130
DTC-100/380	100	2	380	263	0-430	233		50
DTC-150/380	150	2	380	395	0-430	349		50	Electric Tune Press Device Outside with
DTC-200/380	200	2	380	526	0-430	465	Manually Electric	50
DTC-250/380	250	2	380	658	0-430	581	Electric	50
DTC-300/380	300	2	380	789	0-430	698	Electric	50
