Current Transformer Burden Box

Trustworthy and precise current transformer burden boxes are now available at DEMIKS. As one of the most prominent manufacturers and suppliers in China, we pride ourselves in maintaining the highest standards of quality across all our products. With painstaking attention to detail, our burden boxes guarantee precise measurement of the performance of current transformers. For all your current transformer burden box requirements, trust DEMIKS. You can reach out to us today for further details.

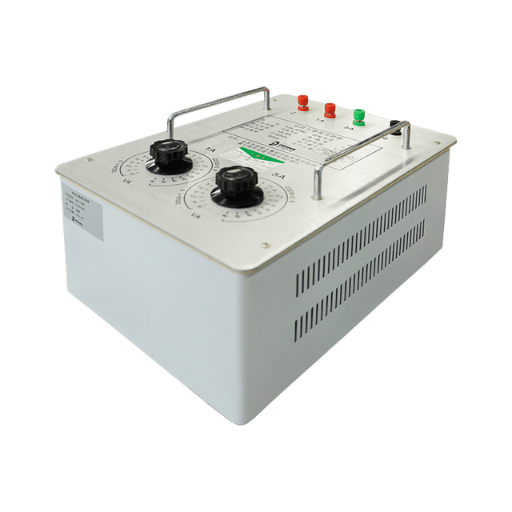

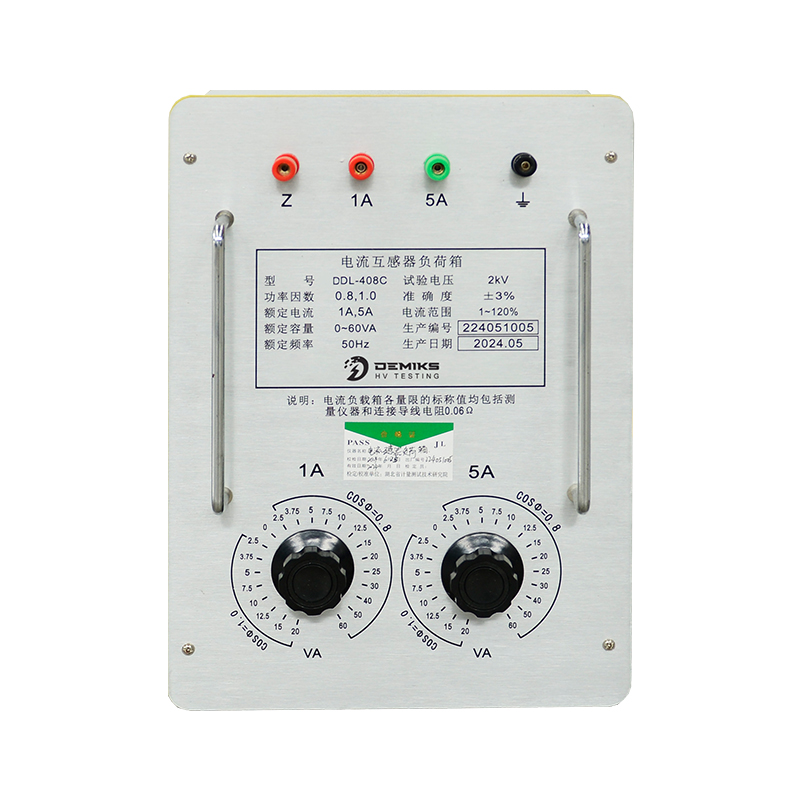

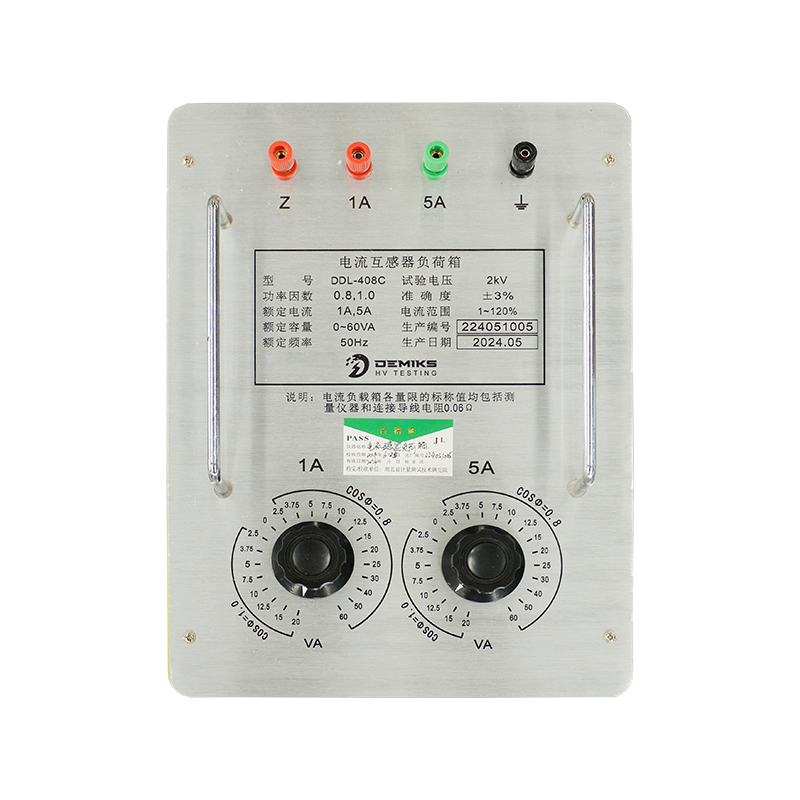

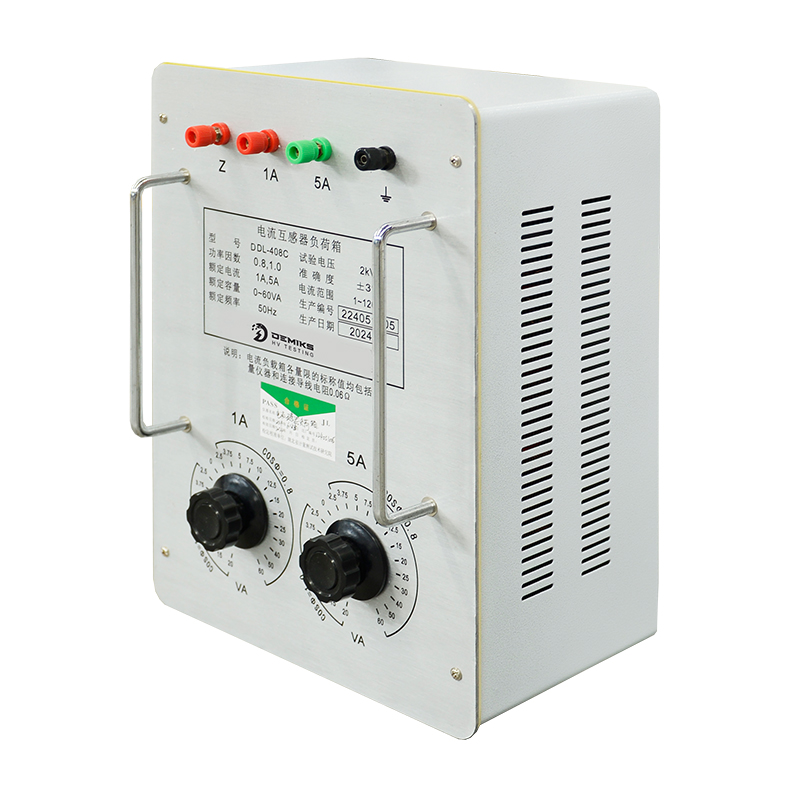

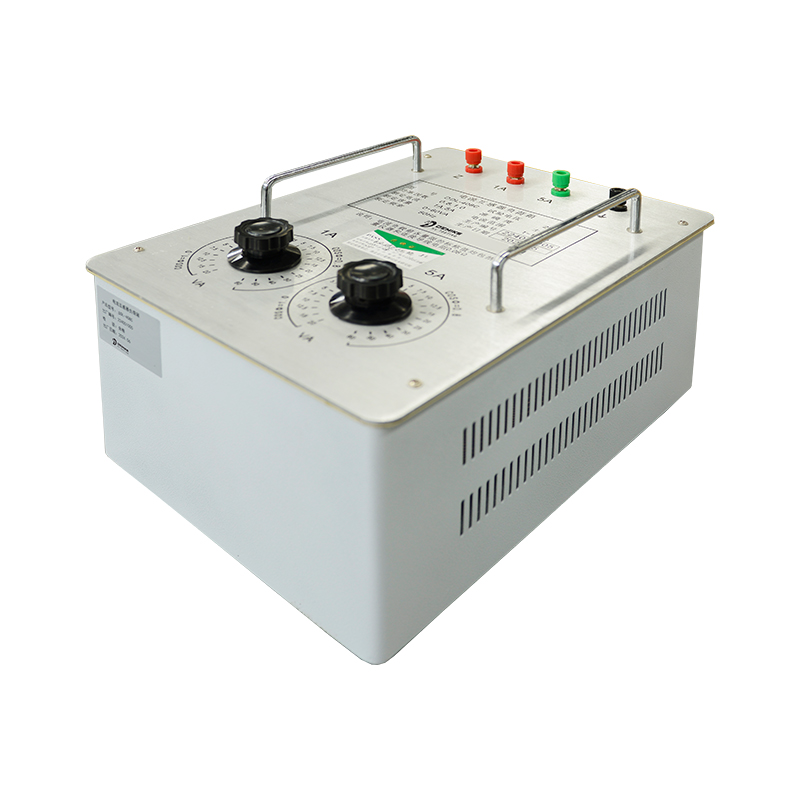

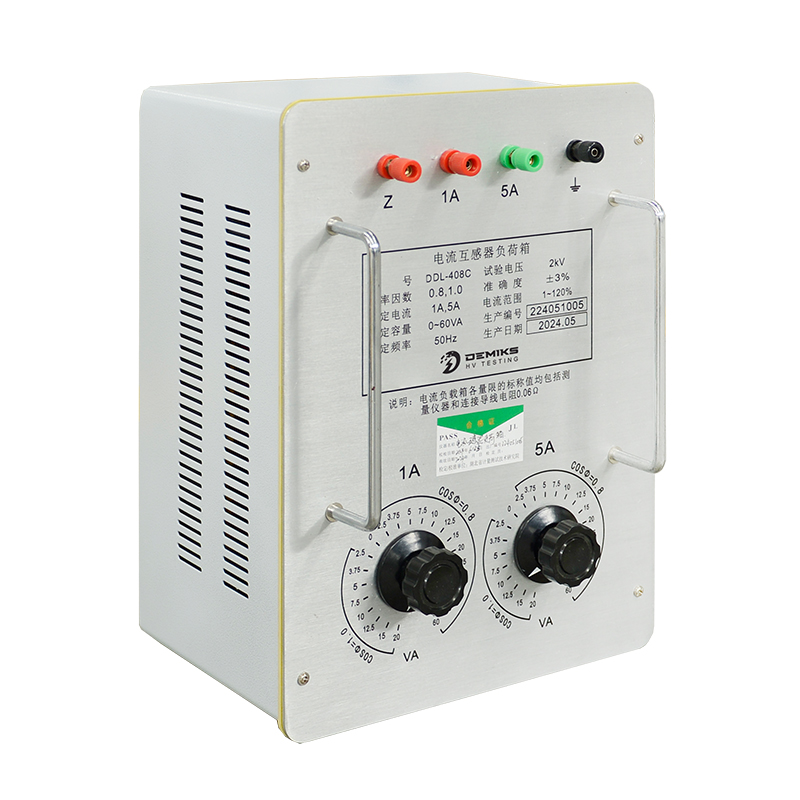

DDL-408C

Objective: The burden box is meant for testing current transformers CTs and voltage transformers VTs to check their ratio and phase errors calibration during different load level conditions.
Highlights: Low weight, aesthetic appearance, and high range of current values.
Use: Used as a fundamental auxiliary instrument for calibrating the transformer systems.

Power Factor	0.8, 1.0 selectable
Rated Current	1A, 5A
Rated Voltage	100V or 100√3 V
Current Range	5% to 120% of rated
Voltage Range	20% to 120% of rated
Rated Capacity - Current:	2.5-60VA
Voltage:	1.25-158.75VA
Accuracy - Current:	±3% ±0.025VA
Voltage:	±3% ±0.1VA
Rated Frequency	50Hz

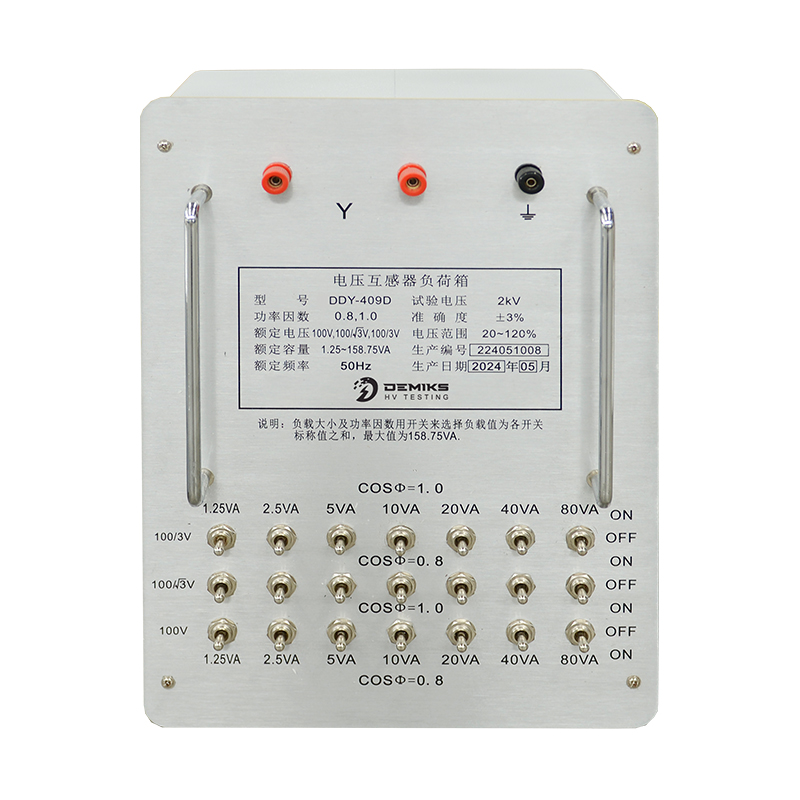

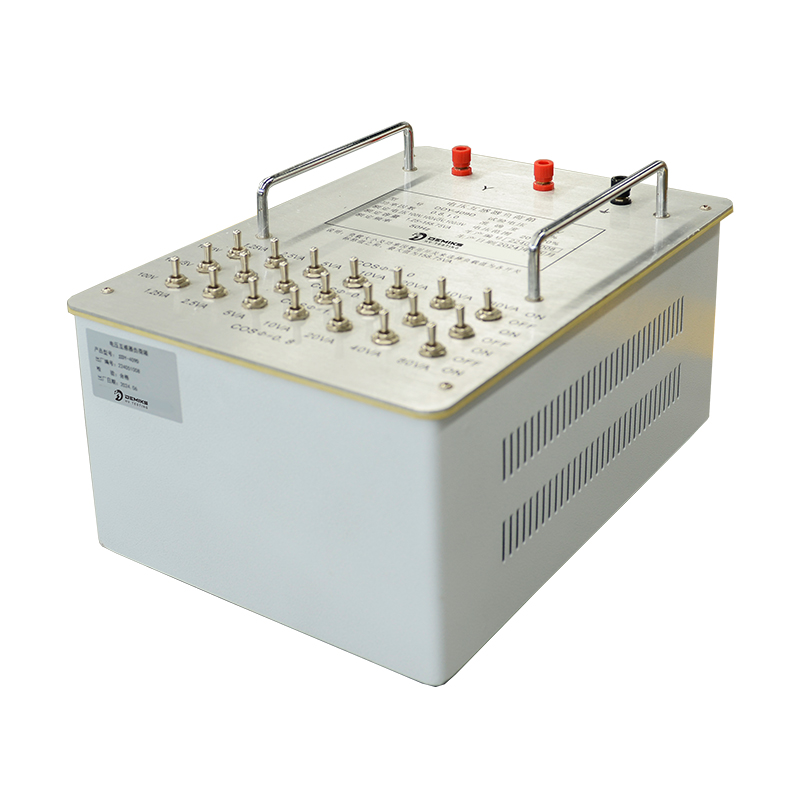

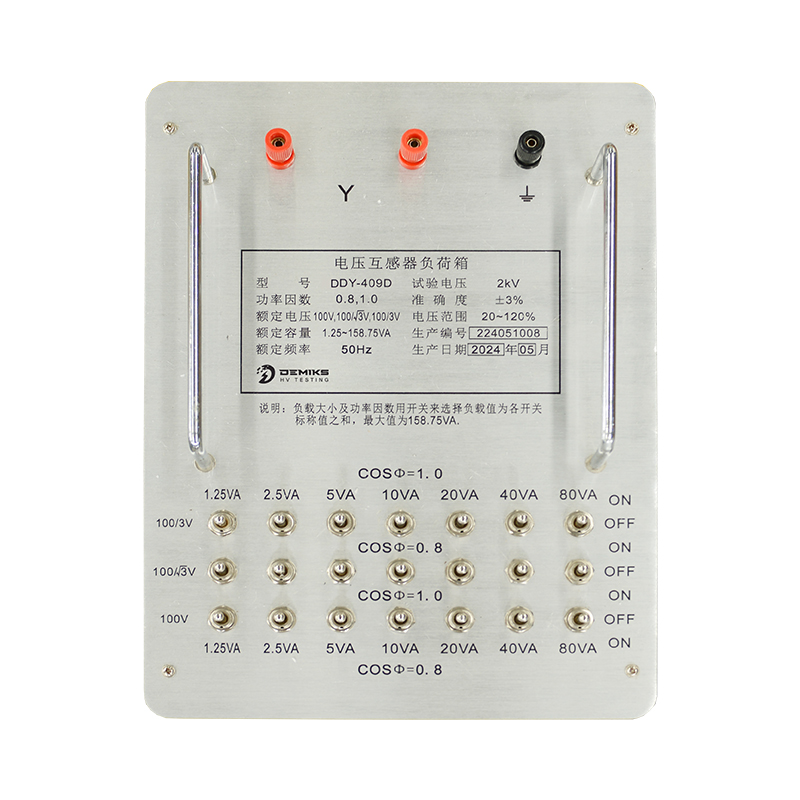

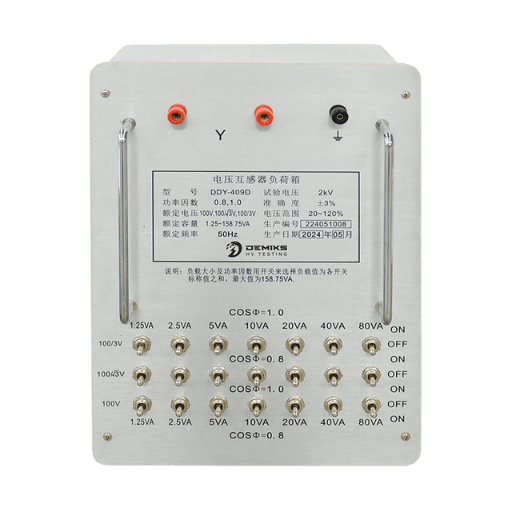

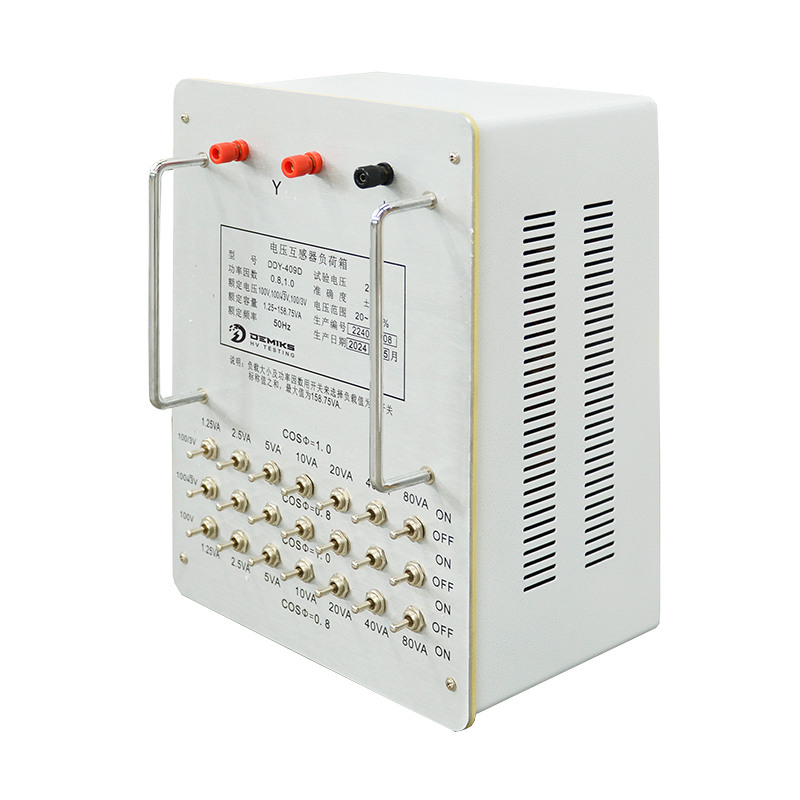

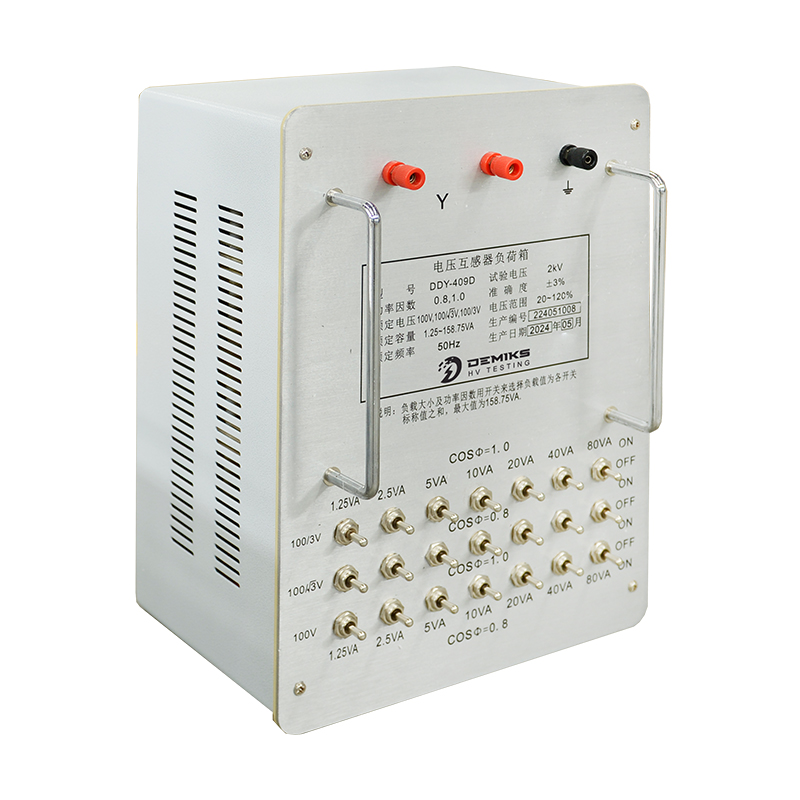

DDY-409D

Revolutionized Testing for Transformers: The DDY-409D Burden Box is best known in the industry for providing accurate performance throughout varying operational conditions during the execution of current transformers (CTs) and voltage transformers (VTs) testing.
A Necessity for Precision of Calibration: Its valuable services are most notable in calibration systems of a transformer in checking with definitive loads to validate ratio and phase errors at various conditions of the selected level of load.
Sophisticated Yet Portable Design: The burden box is beautifully crafted which makes it effortlessly globetrotting without compromising on space or weight making it aesthetically sleek for operational environments.
Wider Scope of Testing: The varying ranges of current flowing through the transformer will allow the user to carry out numerous testing applications without worrying about the versatility.

Parameter	Value
Temperature	15～25℃
Humidity	<80% (at 25℃)
Altitude	<1500m
Power Frequency	50Hz
Current (COS 0.8)	2.5VA～60VA
Current (COS 1.0)	2.5～5VA
Current Range	1%～120%
Voltage Range	20%～120%
Secondary Voltage	1.25VA～158.75VA
Secondary Current	5A
Current Accuracy	±3% ± 0.0025VA
Voltage Accuracy	±3% ± 0.05VA
Power Factor	0.8, 1.0
Size	340×350×175mm³
Experimental Voltage	2kV
Weight	15kg
