Searching for the top wireless high-voltage phase transmitters in the market? It’s high time you checked out DEMIKS. We’re happy to be one of the most reliable suppliers in China. Our cutting-edge technology will surely meet your most complex demands. Our phase transmitters guarantee accurate communication and measurement in any high voltage settings. Take advantage of this market special promotion to modernize your equipment with the best available technology. Call us now to know more about our offerings and your high voltage phase monitoring solutions.
| Feature | Details |
|---|---|
| Functions | Wireless phase/frequency/sequence comparison; Live-line voltage detection; Cabinet applications (ring main/switchgear); Ultra-low voltage capability (from 1V AC) |
| Battery | 3.7V rechargeable Li-ion (USB charging) |
| Runtime | ~10 hours continuous operation |
| Range | ≤200m line-of-sight |
| Display Mode | 3.5" TFT color LCD |
| Measurement | |
| - Voltage Range | AC 1V–550kV |
| - Phase Angle | 0.0°–360.0° (0.1° resolution) |
| - Frequency | 45Hz–75Hz (0.1Hz resolution) |
| Resolution | 0.1°; 0.1Hz |
| Accuracy | Phase angle: ≤±10° (23℃±5℃, under 80% RH); Frequency: ≤±2Hz (23℃±5℃, under 80% RH) |
| Phase Judgment | In-phase: -30°–30°; Out-of-phase: 90°–150° & 210°–270° |
| Voice Prompts | In-phase, Out-of-phase, X-signal normal, Y-signal normal (bilingual options available) |

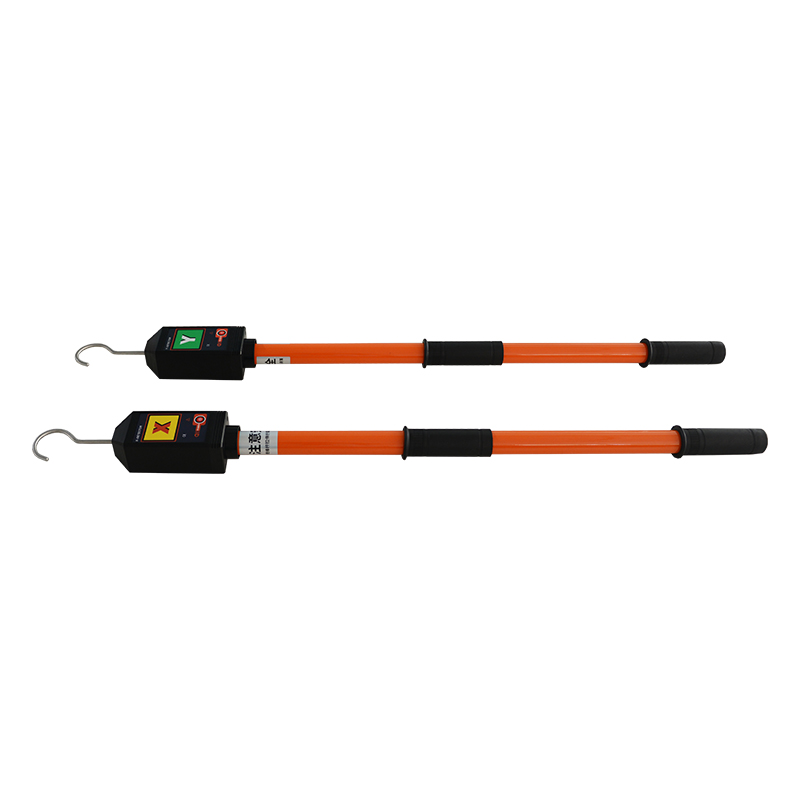

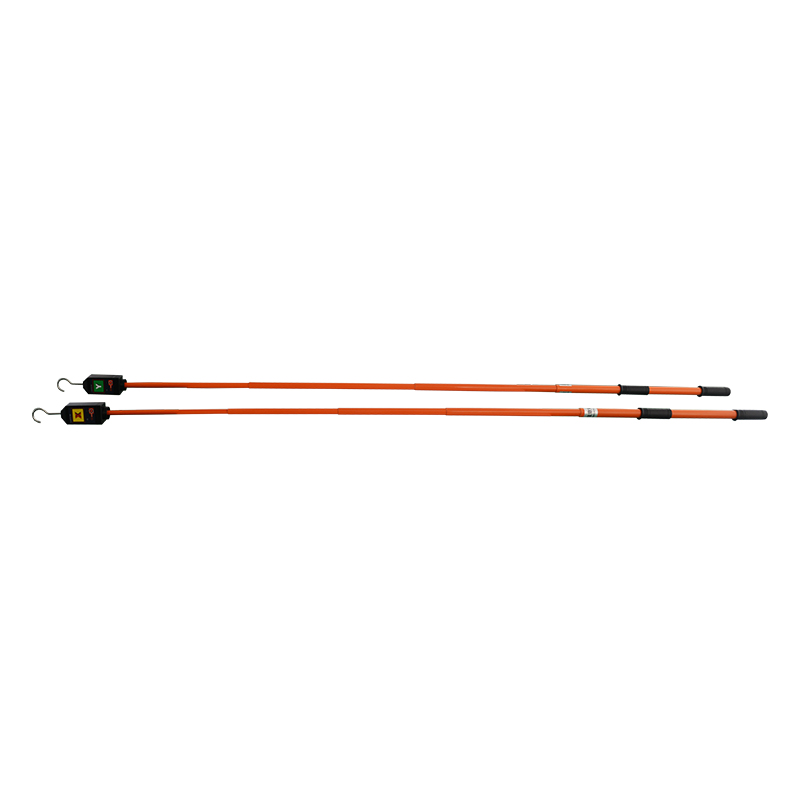

| Insulating Rod | Extended: 3m (standard), 5m (optional); Collapsed: 0.7m |
| Data Logging | 9999 records |
