Box Type Fixed AC Metal Enclosed Switchgear

DEMIKS offers exceptional Box Type Fixed AC Metal Enclosed Switchgear and guarantees trusted and sturdy products for your electrical requirements. As one of the top manufacturers in China, we are compliant with the utmost regulations in the industry for safety and efficiency. Reach out to us for further information!

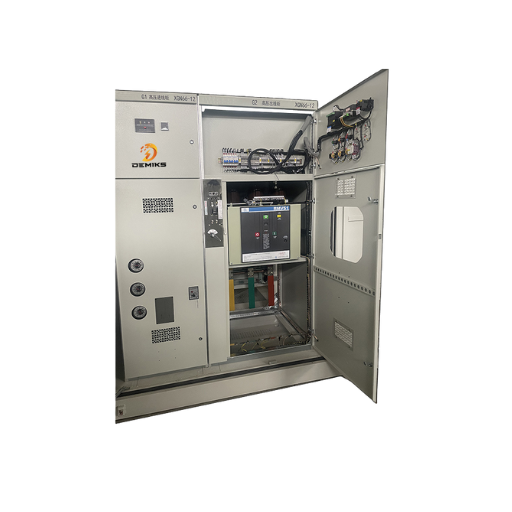

XGN66-12(Z) Box Type Fixed AC Metal Enclosed Switchgear

Application: Use case of 3.6-12KV 50Hz indoor switchgear is for energy distribution, control, protection, and monitoring functions within various facilities.
Compliance with Standards: Fulfills the requirements of GB3906, DL/T404, and IEC60298.
Environmental Endurance: Functions at an operational altitude of -25℃ to +40℃ with restrictions of earthquakes less than 8 on the richter scale.
Safety Aspects: Fulfills the safety IP2X with secondary protections of five prevention interlocking and grounding.
Operability and Maintenance: Compact sixe with an observation window for monitoring ease and simple cable connections.
New Technologies Employed: Contains advanced tech with a VS1 circuit breaker, rotary isolating switches, and JSXGN locking mechanisms.

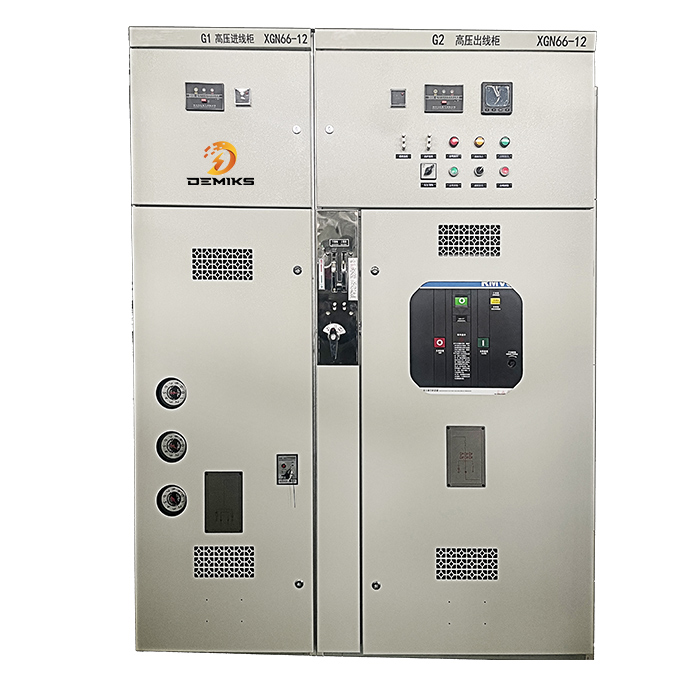

XGN66-12(Z) Box type fixed AC metal-enclosed switchgear-1

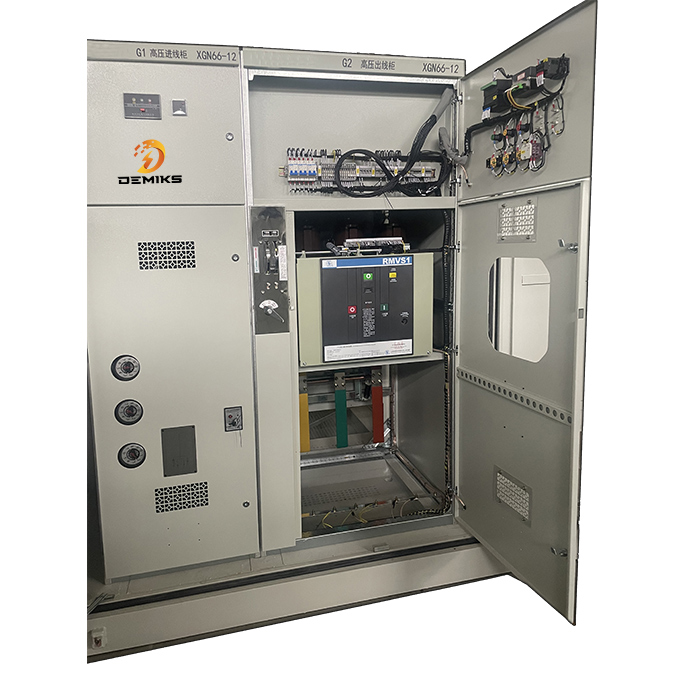

XGN66-12(Z) Box type fixed AC metal-enclosed switchgear-2

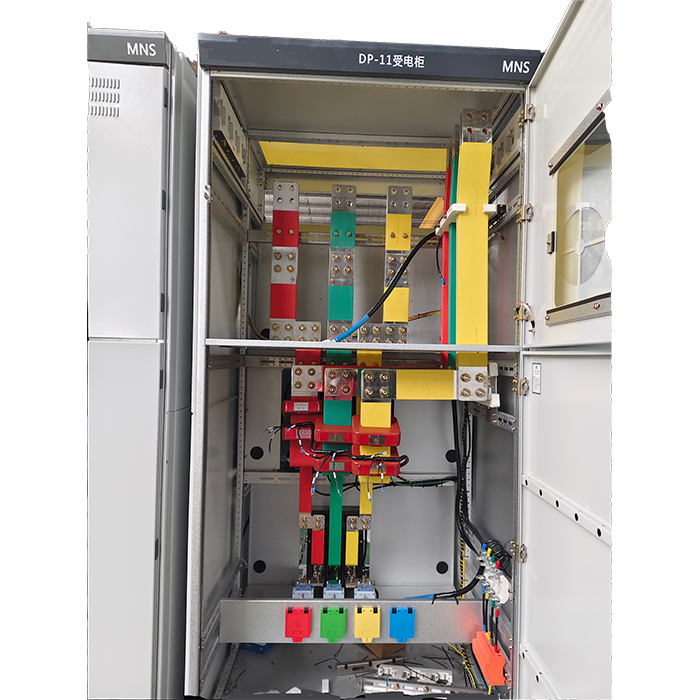

XGN66-12(Z) Box type fixed AC metal-enclosed switchgear-3

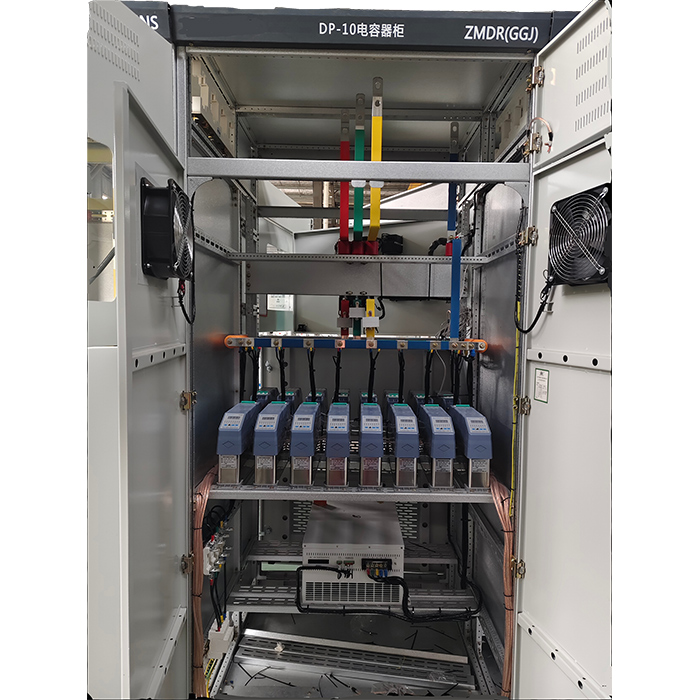

XGN66-12(Z) Box type fixed AC metal-enclosed switchgear-4

Parameter	Specifications
Rated Voltage	3.6kV, 7.2kV, 12kV, 24kV, 40.5kV (according to IEC or GB standards)
Rated Current	- Busbar: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, etc.
	- Circuit Breaker: 630A–3150A (depending on configuration)
Rated Short-Time Withstand Current	20kA/4s, 25kA/4s, 31.5kA/4s, 40kA/4s, etc.
Rated Peak Withstand Current	50kA, 63kA, 80kA, 100kA, etc. (typically 2.5 × thermal stability current)
Rated Frequency	50Hz/60Hz
Insulation Level	- Power Frequency Withstand Voltage: 42kV (12kV), 65kV (40.5kV)
	- Lightning Impulse Withstand Voltage: 75kV (12kV), 125kV (40.5kV)
