Searching for the most reputable manufacturing company in China for distribution boxes? Reach out to DEMIKS/Distribution Box. With us, you will get a reliable and trusted supplier for distribution boxes, as we guarantee the best supply. We cater to both domestic and commercial industries, so you can rest assured that we have what fits best for you. Count on professionals at DEMIKS/Distribution Box for your distribution box requirements. Reach out to us today to get further insights.
Parts: The transparent cover, box, conducting strip, wire guard, and switch pieces comprise a built-in element. A mounting rail, adjustable screws, and conductive bars are included as well.
Characteristics: The appliance height is adjustable, has safe modular 9mm components, and offers quick user disassembly. Operation remains safe.
Use case: Besides domestic settings, this applies within commercial and industrial contexts too. The system controls and protects systems in 220V/380V, 50Hz.
Modifications: Protection from overload, short circuit, overvoltage and leakage is offered by variant PZ30-B which also provides surface or concealed installation.
| Name | Specification | High (mm) | Width (mm) | Deep (mm) |
|---|---|---|---|---|
| PZ30-A | Concealed large cabinet size | |||
| 6# | 200 | 188 | 90 | |
| 8# | 200 | 224 | 90 | |
| 10# | 260 | 260 | 90 | |
| 12# | 260 | 296 | 90 | |
| 15# | 260 | 350 | 90 | |
| 18# | 260 | 404 | 90 | |
| 20# | 260 | 440 | 90 | |
| 24# | 450 | 296 | 90 | |
| 30# | 450 | 350 | 90 | |
| 36# | 450 | 404 | 90 | |

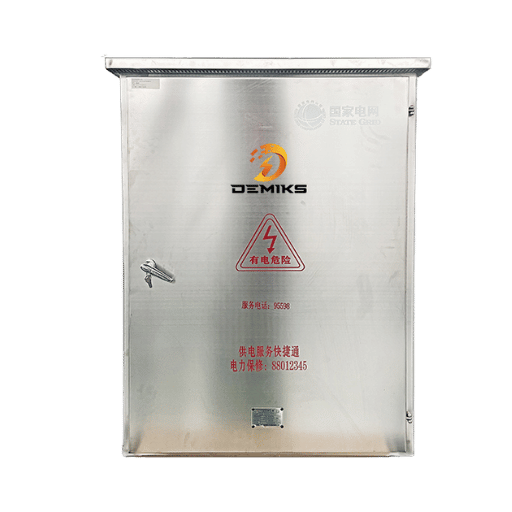

| PZ30-B | Surface mounted large cabinet size | |||
| 6# | 230 | 200 | 90 | |
| 8# | 230 | 240 | 90 | |
| 10# | 280 | 280 | 90 | |
| 12# | 280 | 310 | 90 | |
| 15# | 280 | 370 | 90 | |
| 18# | 280 | 420 | 90 | |
| 20# | 280 | 460 | 90 | |
| 24# | 470 | 310 | 90 | |
| 30# | 470 | 370 | 90 | |
| 36# | 470 | 420 | 90 | |
| 40# | 470 | 460 | 90 | |
| 45# | 630 | 370 | 90 | |
| 54# | 630 | 420 | 90 |
In residential, commercial, and industrial settings, distribution boxes are critical for effective power distribution, controlling circuits, managing overloads, and maintaining system efficiency.
