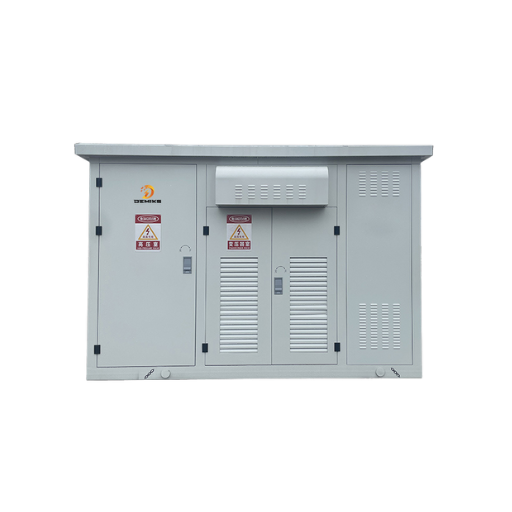

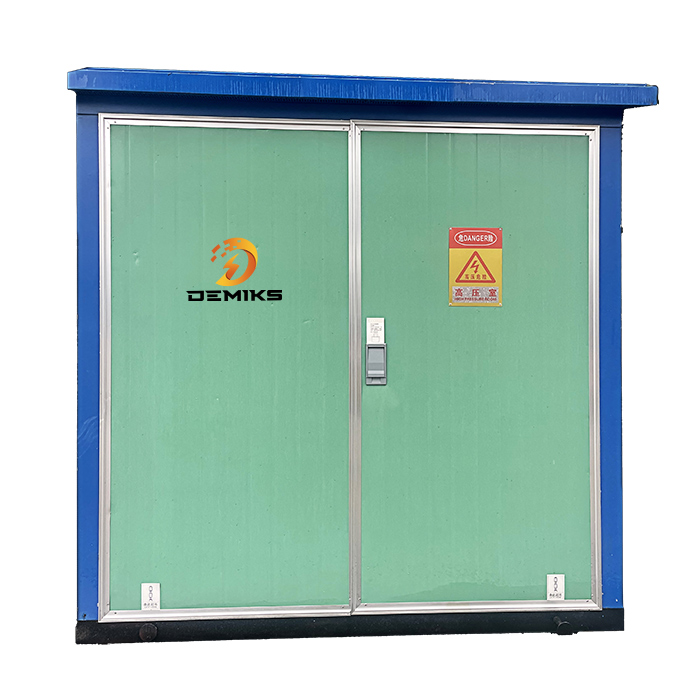

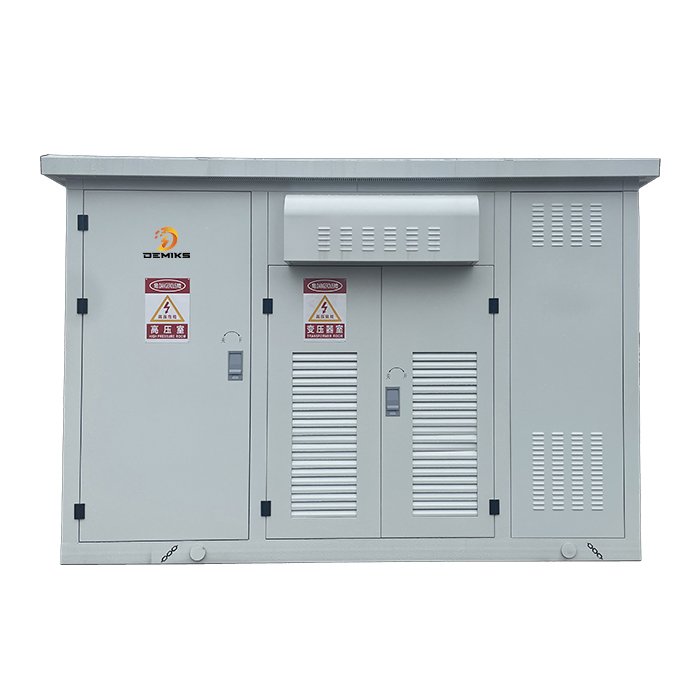

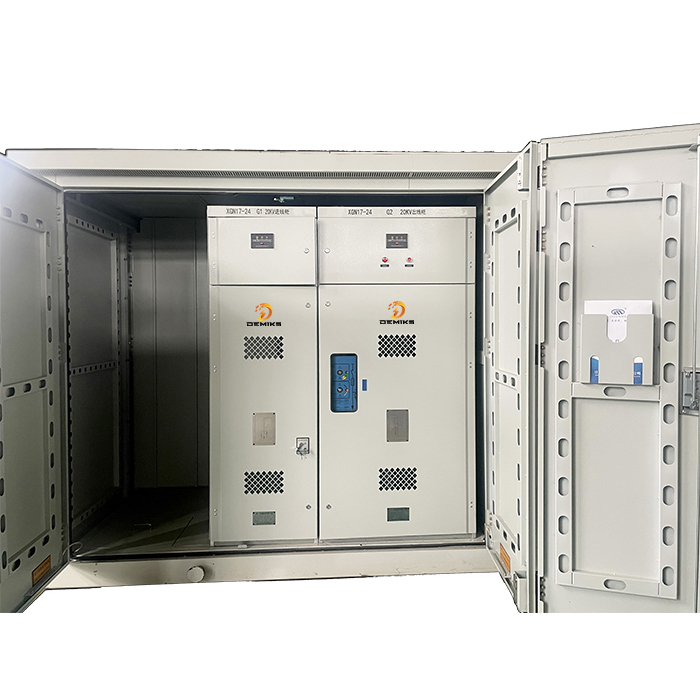

DEMIKS is one of the top manufacturers in China which specializes in producing high and low voltage prefabricated substations. Their experienced personnel guarantees tailored solutions that meet your requirements, ensuring quality and adherence to industry standards. Reach out to us for additional information.
| Project | Unit | FKN12-12Load switch | FZN25-12Vacuum load switch |
|---|---|---|---|
| Rated voltage | kV | 10 | |
| Maximum working voltage | kV | 12 | |
| Rated frequency | Hz | 50 | |
| Rated current | A | 630 | |
| Rated breaking load current | A | 630 | |
| Thermally stable current(effective value) | kA/S | 20/2 | 20/4 |
| Dynamic steady current | kA | 50 | 50 |
| Short circuit closing current (peak) | kA | 50 | 50 |
| Full load breaking times | 次 | 20 | 10000 |
| Mechanical life | 次 | 2000 | 10000 |
| 1min power frequency withstand voltage (interphase and ground) | kV | 42 | 42 |
| Lightning impulse voltage(relative to ground) | kV | 75 | 75 |
