Top Photovoltaic/Wind Power Generation Box Substation Manufacturers and Suppliers in China

Photovoltaic/Wind Power Generation Box Substation

DEMIKS is one of the top manufacturers and suppliers in China and specializes in providing our customers with class A products that fulfill their precise requirements. With us, you will receive the best solution for photovoltaic and wind power generation due to our professional service and technical insights.

Photovoltaic/Wind Power Generation Box Substation

Photovoltaic/Wind Power Generation Box Substation

  • Purpose: Tailored for projects in photovoltaic and wind power generation, compliant with GB17467-2010.

  • Durable Design: Corrosion damage caused by seaside and desert environments is a rare occurrence due to strong anti-corrosion, waterproof, and IP54 shielding.

  • Compact and Efficient: Requires less floor area, provides quick and easy setup, and is pre-assembled at the factory, which minimizes the work and costs needed on-site.

  • Transportable: With quick relocation and minimal preparatory works to the foundational base, expenditures and time are preserved.

  • Safe and Smart: Higher safety margins and continued trustworthy operation made possible by the system’s integrated design and intelligent monitoring.

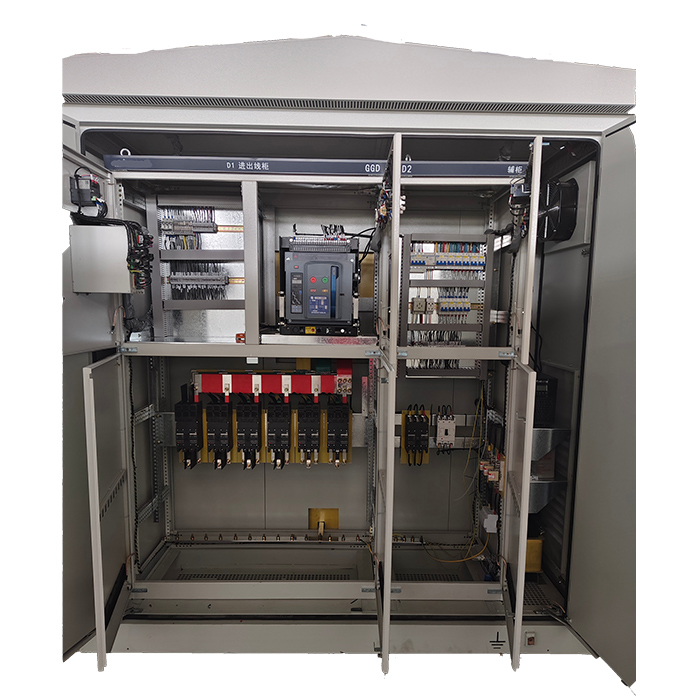

Photovoltaic/Wind Power Generation Box Substation-1

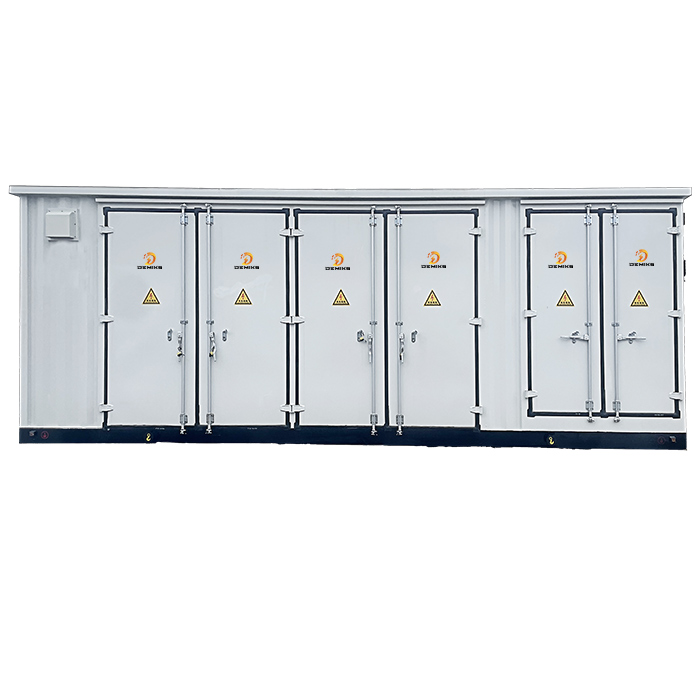

Photovoltaic/Wind Power Generation Box Substation-2

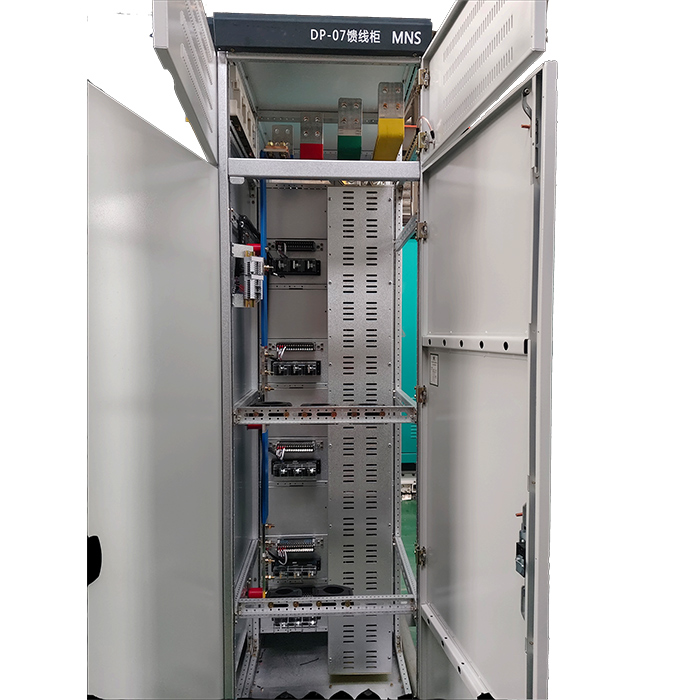

Photovoltaic/Wind Power Generation Box Substation-3

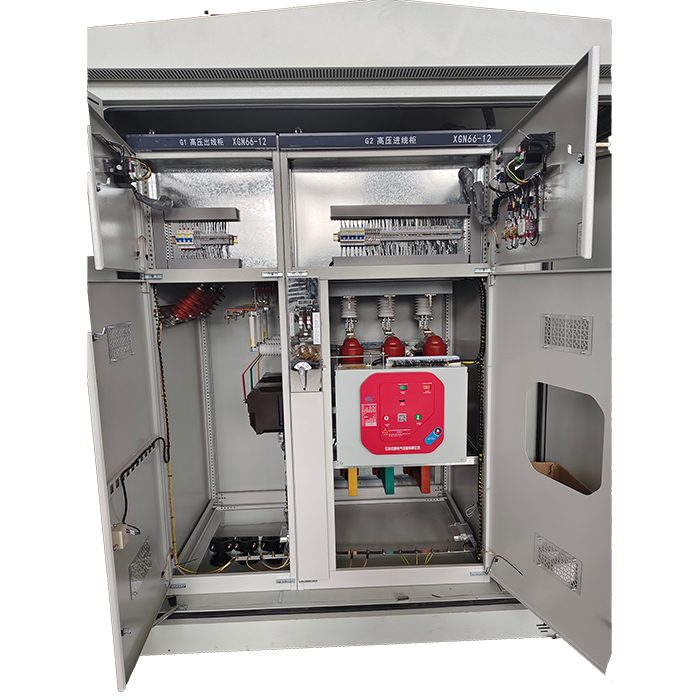

Photovoltaic/Wind Power Generation Box Substation-4
ProjecterSpecificationn
1. Rated Voltage- Low-voltage side: Typically 0.4kV, 0.69kV (PV), 0.69kV/35kV (wind).
- High-voltage side: 10kV, 35kV (common), or higher (e.g., 110kV).
2. Rated Capacity- PV: Commonly 500kVA~2500kVA (configured based on string/array capacity).
- Wind: Usually 1000kVA~5000kVA (matched with unit capacity).
3. Frequency50Hz (domestic) or 60Hz (overseas).
4. Short-Circuit Impedance (UK%)Typically 6%~8%, must match grid short-circuit capacity.
5. Insulation Level- Power-frequency withstand voltage: High-voltage side 35kV/70kV (varies by voltage level).
- Lightning impulse withstand voltage: High-voltage side 75kV/170kV.

Unveiling the Potential of a Photovoltaic Power Station: Harnessing Solar Energy

By utilizing sunshine to produce electricity at scale, solar farms are changing the paradigm of energy infrastructure. This article focuses on the features of solar farms, their effectiveness and contribution into decreasing the carbon footprint, thus underlining the shift towards sustainable energy.
