Top AC&DC Voltage Divider Manufacturers and Suppliers in China

AC&DC Voltage Divider

Searching for dependable AC&DC voltage dividers for your electrical projects? Trust only DEMIKS! Being one of the prominent manufacturers and suppliers in China, we focus on demanding and high quality voltage dividers that are within your technical requirements. Each of our professionals is committed towards providing adequate products that assure precise measurement as well as performance.

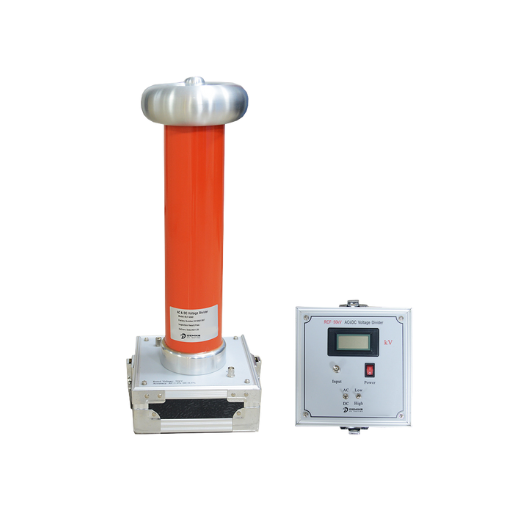

RCF-50kV AC&DC Voltage Divider

High Precision: Guaranteed accuracy with sophisticated parts calibrated to 0.001 kV resolution.
Anti-Interference: Improvement in measurement stability and linearity due to previously applied shielding.
Safe and Reliable: Prevention of discharges and enhancement of safety enabled by sealed enclosure minimizes exposed surfaces.
User-Friendly and Portable: Operates from a lightweight, portable case made of aluminum alloy, broadening its utility. Intuitive and effortless to use.

RCF-50kV AC&DC Voltage Divider-1

RCF-50kV AC&DC Voltage Divider-2

RCF-50kV AC&DC Voltage Divider-3

RCF-50kV AC&DC Voltage Divider-4

RCF-50kV AC&DC Voltage Divider-5

RCF-50kV AC&DC Voltage Divider-6

Voltage divider impedance	600 MΩ
Voltage divider voltage class	AC:0-50kV DC:0-50kV
Display meter range	Low:0-20kV High:0-50kV
AC measuring mode	True RMS measurements
Measurement accuracy	AC:1.0% DC:0.5%
Insulating medium	American Dupont dry dielectric material
Divider ratio	1000:01:00
Connection coaxial cable	3m
Environment temperature	0~40℃
Humidity	≤85%RH

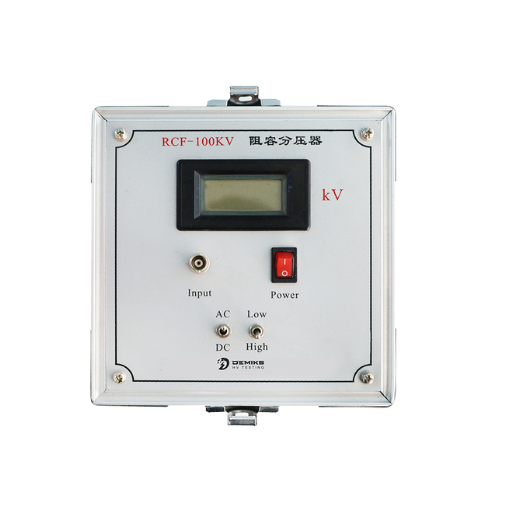

RCF-100kV AC&DC Voltage Divider

High Precision: Separate advanced components guarantee accuracy with stable measurements of 0.001kV.
Anti-Interference: Enhanced stability and discharge protection are provided by shielding technology.
Safe and Reliable: Units feature a compact and sealed structure which minimizes discharge volume.
Simple Operation: Quick and intuitive retrieval of data is facilitated by a dial switch and an LCD display.
Portable Design: Easy transport and assembly is provided by the lightweight aluminum cases.

RCF-100kV AC&DC Voltage Divider-1

RCF-100kV AC&DC Voltage Divider-2

RCF-100kV AC&DC Voltage Divider-3

RCF-100kV AC&DC Voltage Divider-4

Voltage divider impedance	1200 MΩ
Voltage divider voltage class	AC：0-100kV DC：0-100kV
Display meter range	Low：0-20kV High：0-200kV
AC measuring mode	True RMS measurements
Measurement accuracy	AC：1.0% DC：0.5%
Insulating medium	American Dupont dry dielectric material
Divider ratio	1000:01:00
Connection coaxial cable	3m
Environment temperature	0~40℃
Humidity	≤85%RH

RCF-200kV AC&DC Voltage Divider

High Precision: Incorporates sophisticated elements for low-power consumption and high-resolution measurements.
Strong Anti-Interference: Shielding guarantees the measured data is stable and prevents tip discharge.
Safety & Reliability: Design and material selection reduces discharge, thus enhancing operational safety.
Easy To Use: Functions through a switch with an intuitive LCD interface for enhanced user comfort.
Ergonomic Design: Facilitated by a slender geometric shape and an aluminum alloy housing, the device is now easier to carry around.

RCF-200kV AC&DC Voltage Divider-1

RCF-200kV AC&DC Voltage Divider-2

RCF-200kV AC&DC Voltage Divider-3

RCF-200kV AC&DC Voltage Divider-4

RCF-200kV AC&DC Voltage Divider-5

Voltage divider impedance	2400 MΩ
Voltage divider voltage class	AC：0-200kV DC：0-200kV
Display meter range	Low：0-20kV High：0-200kV
AC measuring mode	True RMS measurements
Measurement accuracy	AC：1.5% DC：1.0%
Insulating medium	American Dupont dry dielectric material
Divider ratio	1000:01:00
Connection coaxial cable	4m
Environment temperature	0~40℃
Humidity	≤85%RH
