Product Introduction

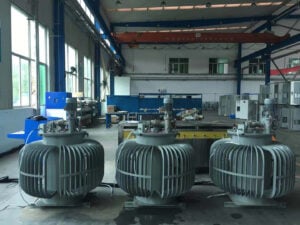

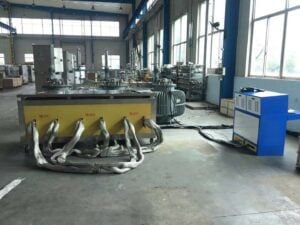

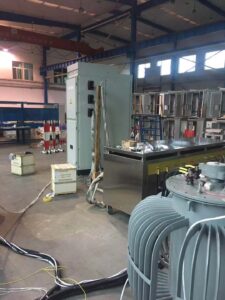

The 6300A Three-Phase Temperature Rise Test System is a high-power high-voltage electrical testing equipment independently developed and manufactured by Shanghai Demiks Power Technology. The complete system consists of three-phase oil-immersed induction voltage regulators, high-current booster (3-phase output A/B/C), intelligent main control cabinet, flexible copper braided high-current leads and multi-point temperature data acquisition unit. It is specially designed for switchgear temperature rise type tests on high-current carrying components such as switchgears, busbars, circuit breakers, disconnectors, contacts and copper bars.
The system can continuously output rated three-phase current up to 6300A with stable current output and high three-phase current balance. It adopts oil-immersed self-cooling induction voltage regulation structure with strong overload capacity and controllable temperature rise under long-time full-load operation. Equipped with intelligent control system, it supports automatic voltage & current stabilization, real-time multi-point temperature collection, curve recording and over-limit protection. It can run steady-state temperature rise test for extended periods and fully comply with domestic and international standards including GB/T, IEC and ANSI for power equipment testing.
Application & Purpose
This 6300A three-phase high current temperature rise test equipment is used to perform long-duration current-carrying temperature rise type tests for medium & high voltage switchgears, complete power distribution assemblies, bus ducts, vacuum circuit breakers, disconnectors, earthing switches, terminal lugs, copper bars and contact assemblies.
- Type Test Verification: Verify the temperature rise of conductive parts (contacts, busbars, terminals) under rated continuous working current of 6300A, check compliance with GB, IEC and ANSI temperature limit requirements, and validate conductive loop design and contact reliability.
- Factory Routine Test: Switch-gear manufacturers and electrical assembly factories use this equipment for sampling inspection of thermal performance under high current before product delivery, to detect hidden risks such as poor contact, insufficient busbar sizing and assembly defects in advance.
- Research & Third-Party Testing Institutes: Power research institutes and quality inspection laboratories use the system for R&D testing of high-voltage distribution equipment, third-party authoritative inspection and new product certification tests.
- Test for Converter Cabinets & High-Current Complete Equipment: Suitable for temperature rise verification of large-capacity AC switchgears matched with DC systems, high-current busbars and metal-enclosed switchgear assemblies.
Product Advantages (Focus for Overseas Buyers)
✅ Independent three-phase current stabilization with low three-phase current unbalance rate, meeting standard requirements for three-phase temperature rise test of high-voltage complete equipment
✅ Capable of continuous full-load long-time operation, meeting standard requirements for steady-state temperature rise test
✅ Oil-immersed voltage regulator with strong overload capacity and simple maintenance, suitable for long-term use in factory test laboratories
✅ Fully automatic control system, unattended test operation, auto-saving of temperature rise curves and test data, test report export available
✅ Modular design for easy disassembly and transportation, customisable current ratings (3000A/4000A/5000A/6300A) on request
✅ Compliant with GB 3906, IEC 62271, ANSI C37.20.2 switch-gear temperature rise test standards, compatible with CE certification
✅ Shanghai DEMIKS Power Technology, original manufacturer, offering on-site commissioning, technical training and after-sales maintenance service
FAQ
Q1：What is 6300A temperature rise test system used for?
A：The 6300A three-phase temperature rise test system injects rated large current into high voltage switch-gear, busbar, circuit breakers and contact assemblies, to measure temperature rise of conductive parts and verify whether the equipment meets IEC & GB standard requirements. It is widely used for type test and routine factory test of power distribution equipment.
Q2：Can this 6300A high current test system run continuously for long time?
A：Yes. Adopting oil-immersed induction voltage regulator and low impedance current booster, the system supports continuous full-load long-time running, which meets the requirement of steady-state temperature rise test.
Q3：Who will need the 6300A switch-gear temperature rise test equipment?
A：High-voltage switch-gear manufacturers, bus duct factories, electrical test institutes, third-party certification laboratories, power research institutes all need this large current temperature rise test set for product type test and quality inspection.
Q4：Can you customize the current rating of temperature rise test system?
A：Shanghai Demiks Power Technology can customize three-phase temperature rise test equipment from 1000A up to 6300A and higher current, according to client test requirements.
