Top AC Hi-pot Transformer Control Box Manufacturers and Suppliers in China

Transformer Control Box

Searching for a dependable manufacturer for AC Hipot testing transformer control boxes? Get in touch with DEMIKS. As one of the top China based manufacturers and suppliers, we take guarantee with our products along with help in engineering. Every step from design to production is handled with utmost care at aerospace standards on all the control boxes. Call us today and see how we can help you with your transformer control box requirements. The best service in the market with the highest quality control.

DXC-104D automatic AC Hi-pot transformer control box

User-Friendly Interface and Technology: Incorporates a high sensitive 7 inch touch display with a full Chinese menu, enabling effortless touch interface navigation; dual calibration controls and electronic disabling locks boost sensitivity and reliability.
Compatible with Wide Application: Enables multiple transformer connections, with an adaptable testing transformer ratio that caters to a range of voltage values; provides automated and manual control modes for all-purpose testing.
Automation and Safety Compliance: Provide safe and efficient advanced timing actuated functions, regulated boost rate, programmable over voltage safeguard with user defined status and alarm indicators.
Long Lasting and Mobile: Maintenace friendly; low weight to strength ratios permits ease of positioning. Ideal to service and maintain power supplies for companies, factories, power plants, railways, and so on.

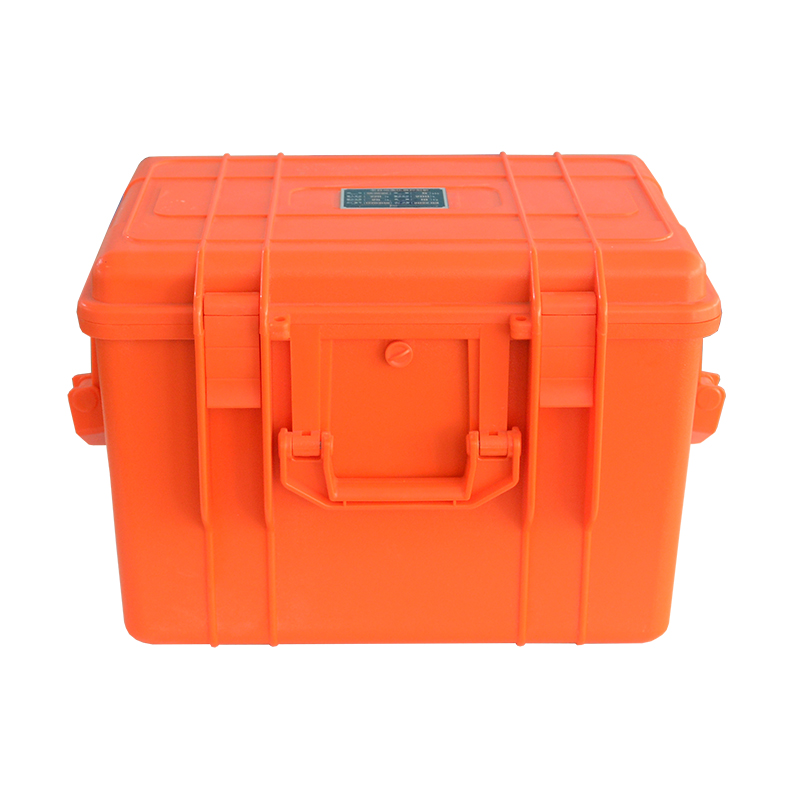

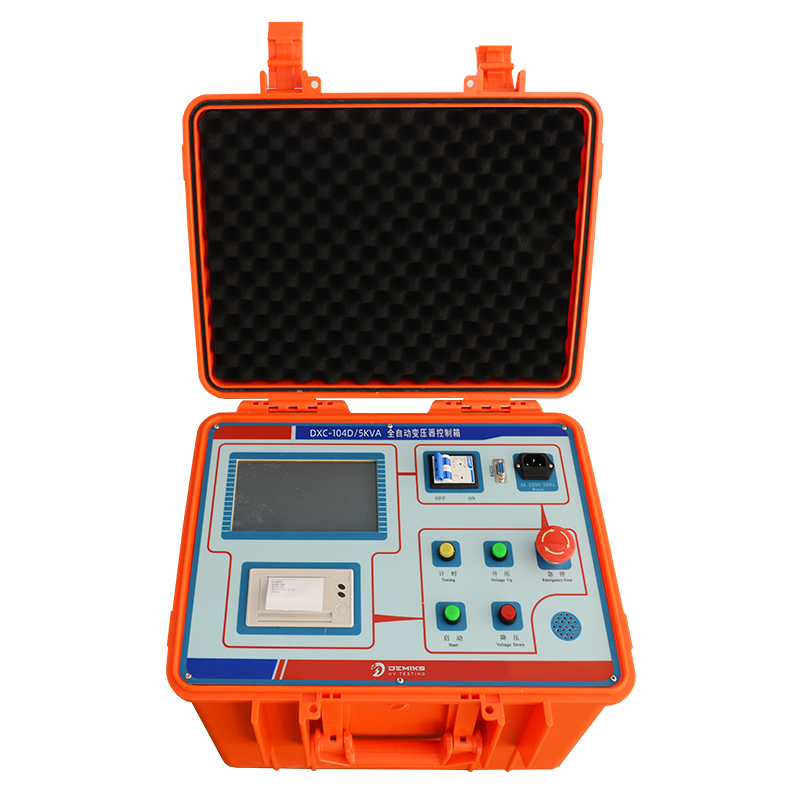

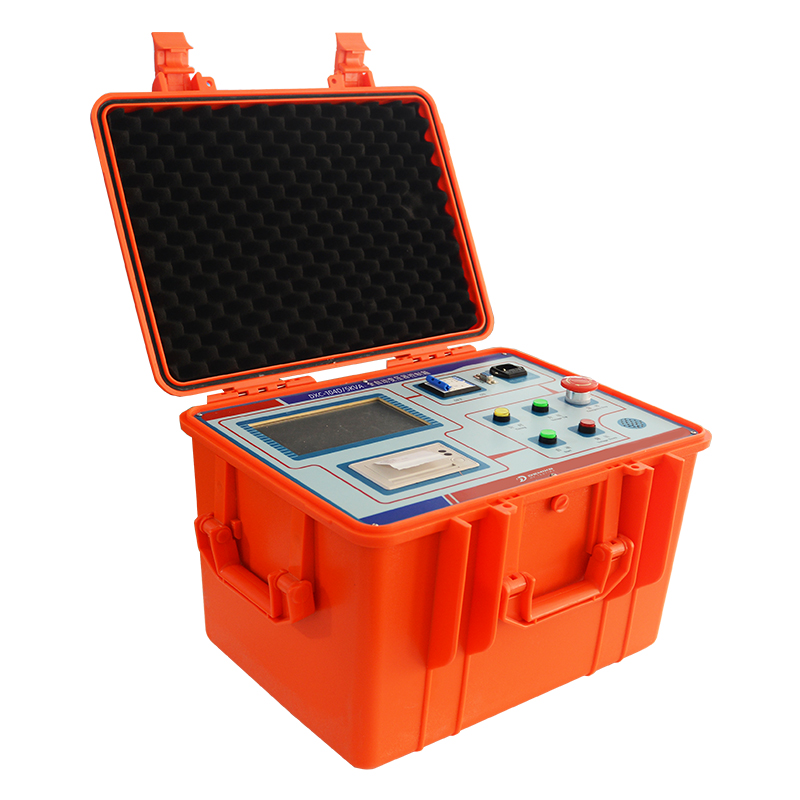

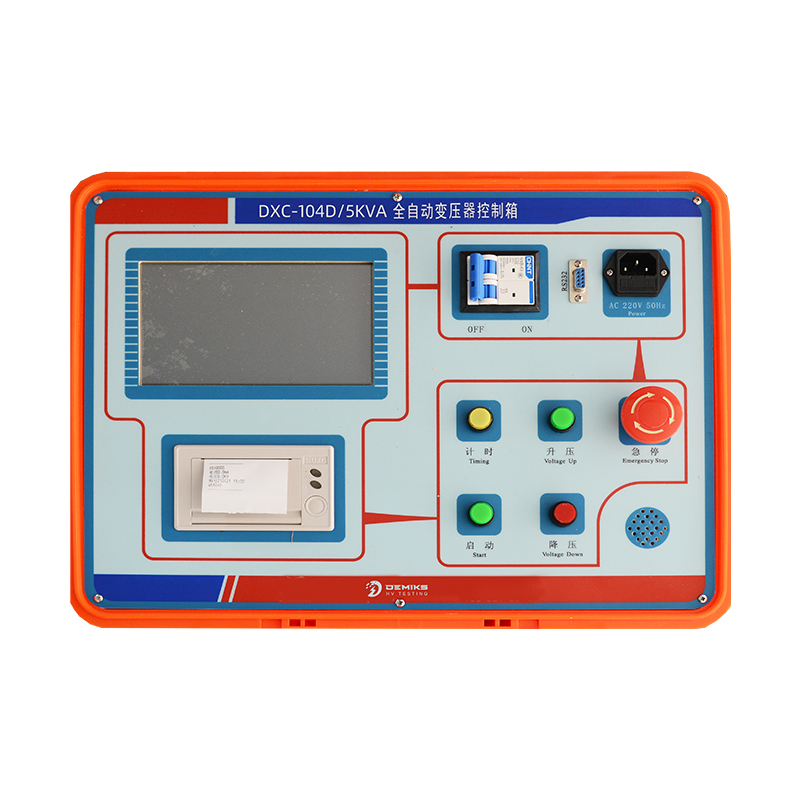

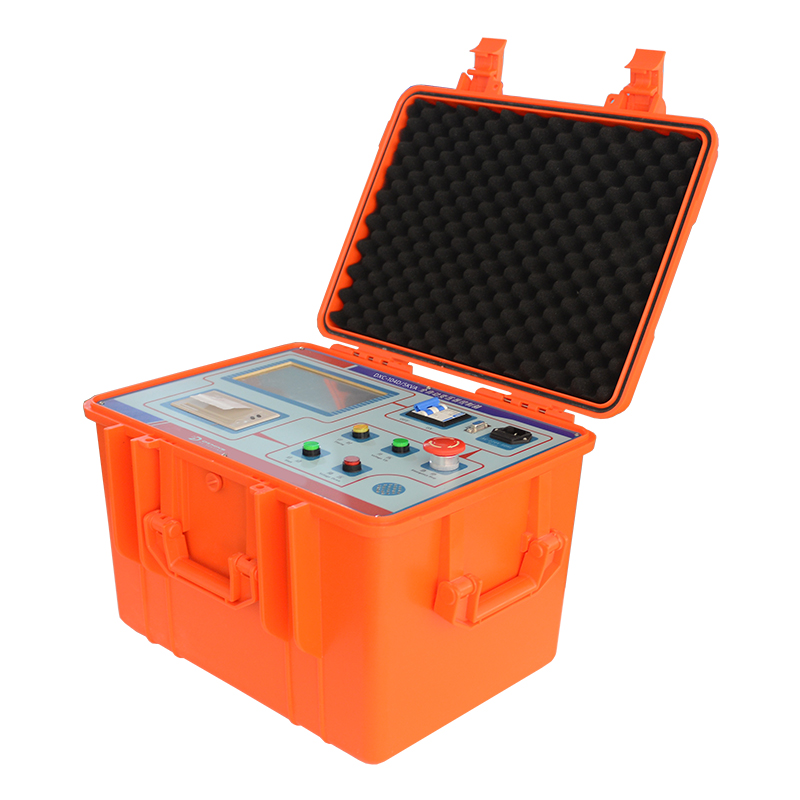

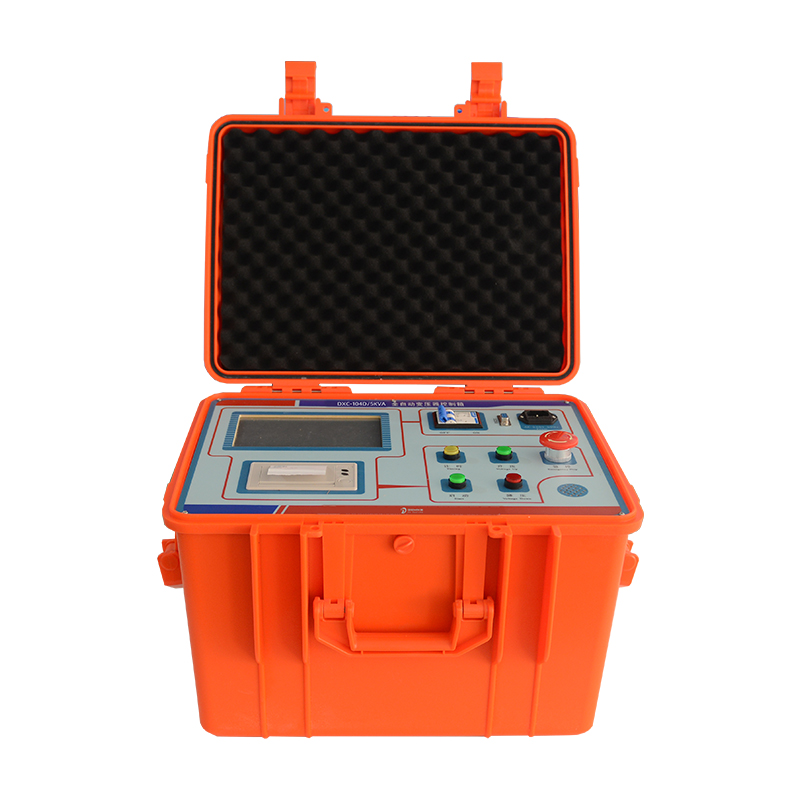

DXC-104D automatic transformer control box -1

DXC-104D automatic transformer control box -2

DXC-104D automatic transformer control box -3

DXC-104D automatic transformer control box -4

DXC-104D automatic transformer control box - 5

DXC-104D automatic transformer control box - 7

1	Power supply voltage		AC 220V
2	Capacity		0-5KVA
3	Output voltage		0—250V
4	Voltage accuracy		±0.5
5	Current accuracy		±0.5
6	Display mode		7-inch true color high-definition digital screen
7	Touch mode		Resistive touch is more accurate
8	Operation mode		Automatic, manual
9	Data storage		60 groups
10	Password		Multi-level permission setting
11	Multi-level protection, safer to use
Input voltage protection		Input current protection		High voltage voltage protection
High voltage current protection		High voltage overvoltage protection		High voltage flashover protection

Note: Our company can customize products with different specifications and special functions according to user requirements.

DXC-101 Power Frequency Withstand Testing Transformer Control Box

Purpose & Application: The DXC-101 Step Down Transformer Control Box provides ease of use and portability in industries for power maintenance like power supply, factories, metallurgy, power plants, and railways.
Key Features: Apart from monitoring functions (current meter, voltage indicator, etc.), safety and reliability is ensured with protection features (overcurrent protection, zero start).
Advanced Components: New time and current relays with wider timing ranges were installed, ensuring increased accuracy and enhanced safety.
Design & Portability: The unit’s lightweight, compact, and robust structure enables easy transport, movement, and maintenance.

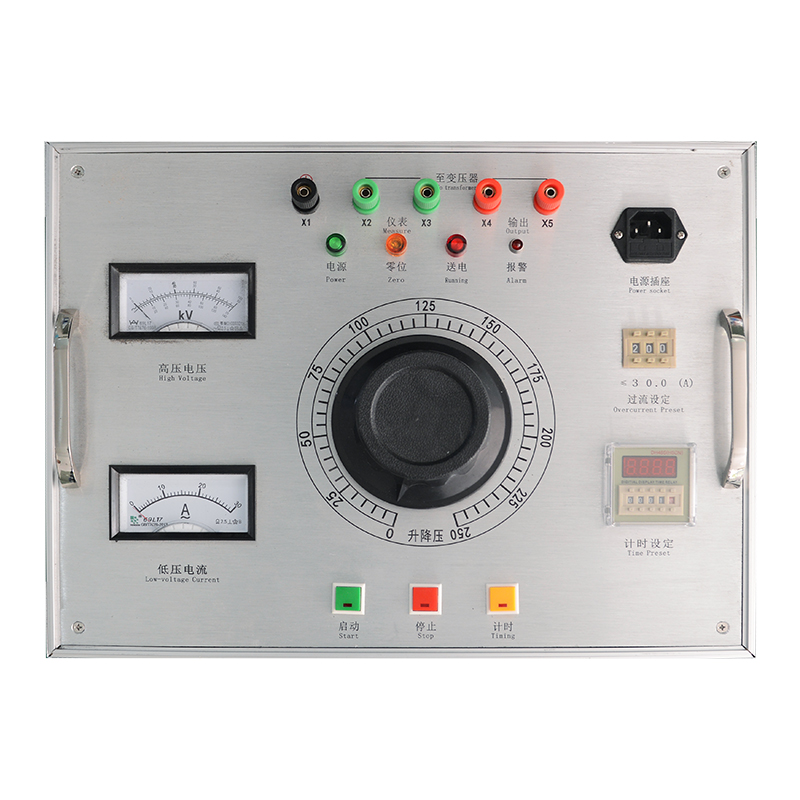

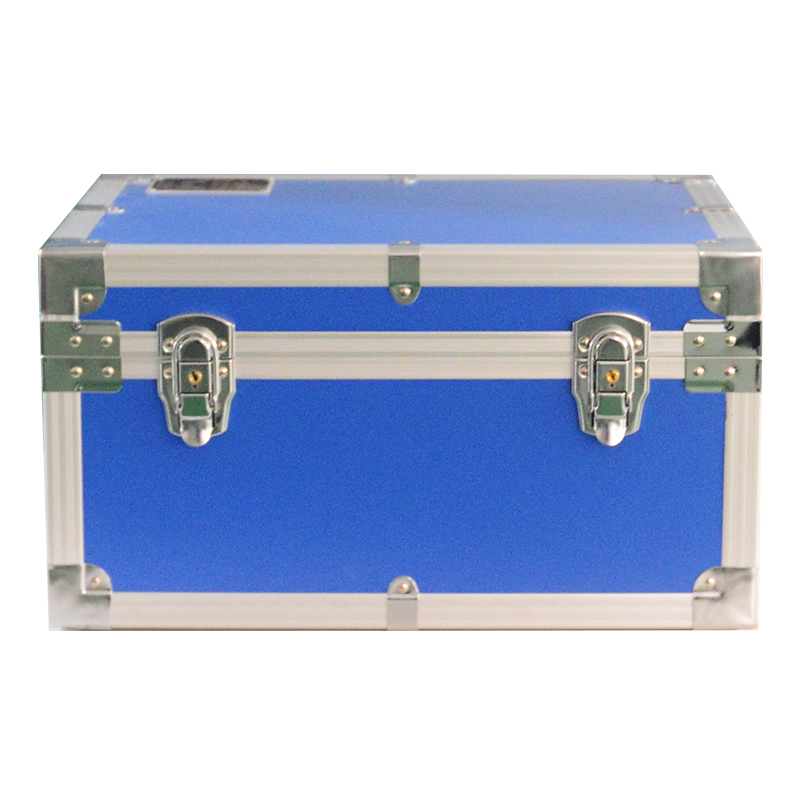

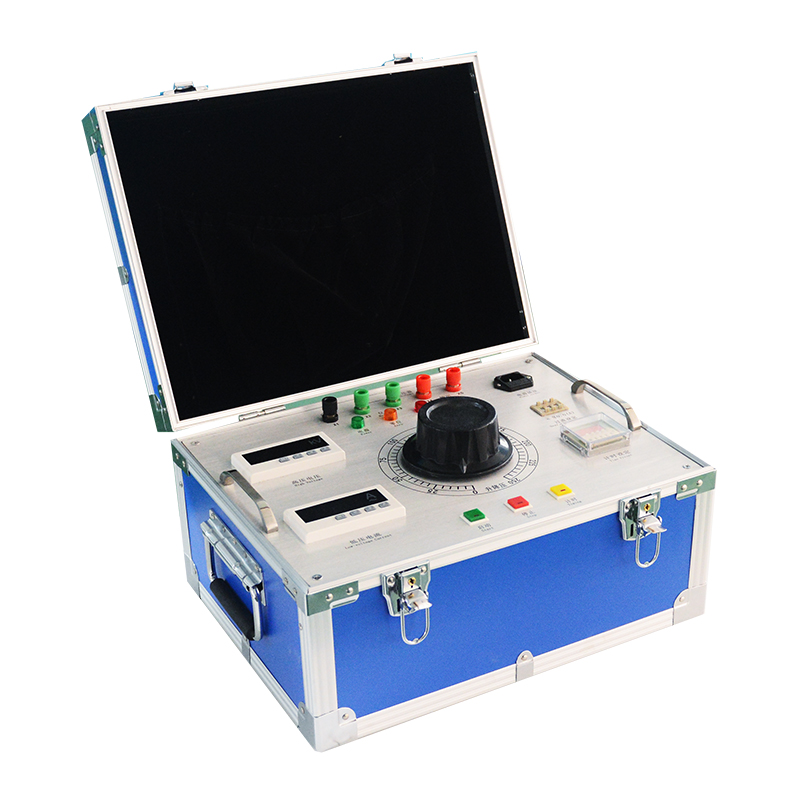

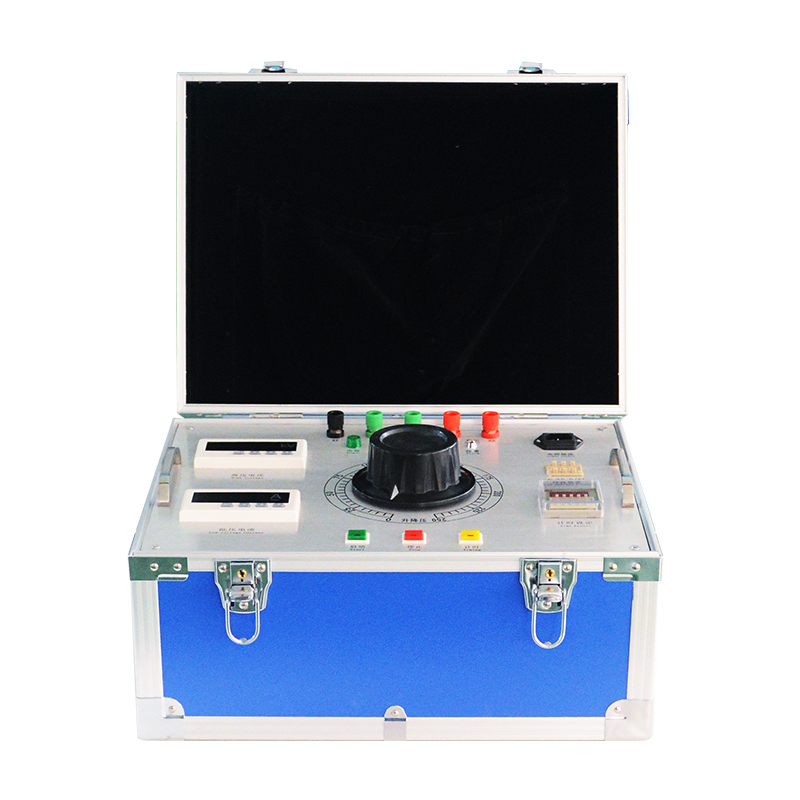

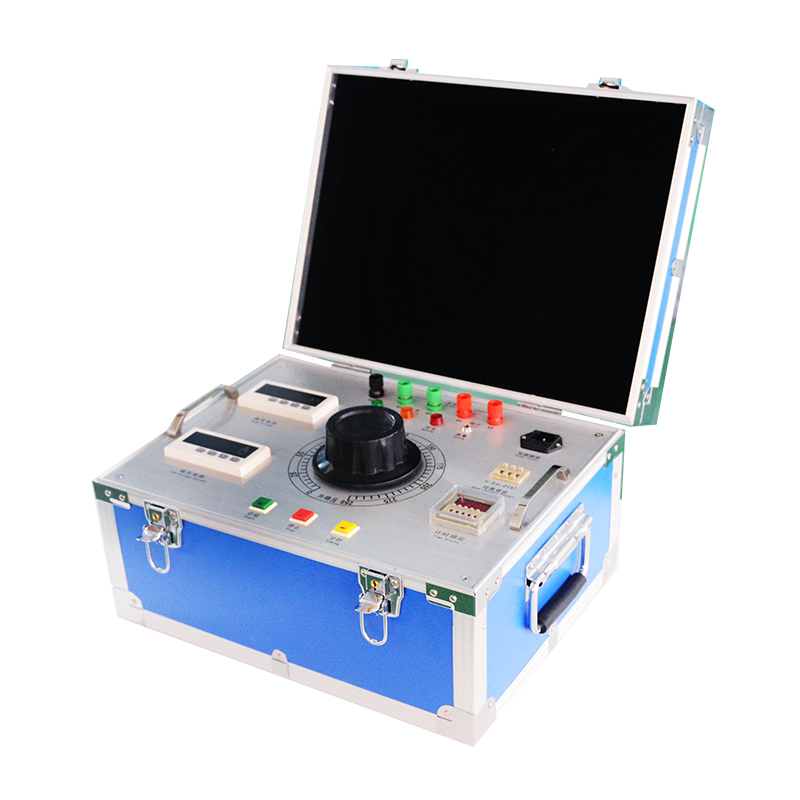

DXC-101 Transformer Control Box - 1

DXC-101 Transformer Control Box - 2

DXC-101 Transformer Control Box - 3

DXC-101 Transformer Control Box - 4

DXC-101 Transformer Control Box - 5

DXC-101 Transformer Control Box - 6

Model	Capacity	power source			Output		Operation
		Phase number	（V）	（A）	（V）	（A）	Method
DXC-5/220	5	1	220	23	0-250	20	Manual
DXC-10/220	10	1	220	45	0-250	40	Manual

The Ultimate Guide to AC Hi-pot Control Transformer: Powering Automation with Precision

Control transformers play a critical role in modern industrial and automation systems, providing stable and precise voltage required for the efficient operation of control circuits.
