Accumulator Cell Intelligent Activator

Are you in search of the most appropriate Accumulator Cell Intelligent Activator for your enterprise? Here at DEMIKS, we have everything you need. All of your battery-related requirements will be taken care of through our advanced technology that guarantees unsurpassed accuracy and effectiveness. Rely on the professionals at DEMIKS, and we will make sure that you get the best products available in the market.

D806A Accumulator Cell Intelligent Activator

Battery Rejuvenation: Straightforward battery activation and repairs through low-voltage, surge-free, high-current technology.
Safe Discharge Capabilities: The PTC resistors are surge-proof and low power. Overcurrent cut-off for safety and long lifespan.
Superior Grade CPU: Efficient performance through the use of dual ARM CPUs provides system stability.
Integrative Alarm Configuration: Discharge and charge alerts, fault detection surpassed by no other.
Abundant Resources: Capable of Data set surpassing Auxiliary holds 16GB memory over 1000 data.
Preprogrammed Facets: Operation templates provide easy activation, configuration, and operation.

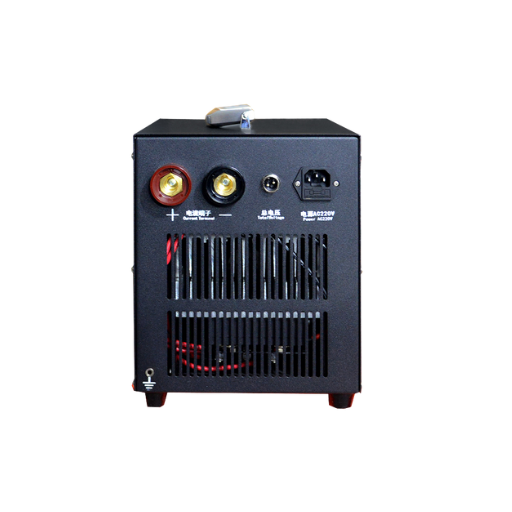

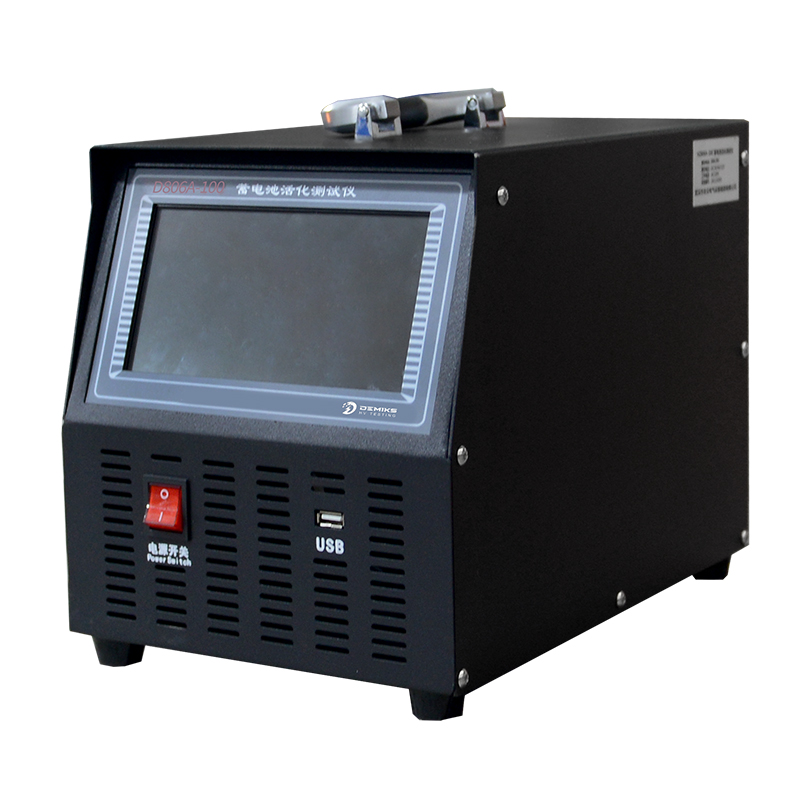

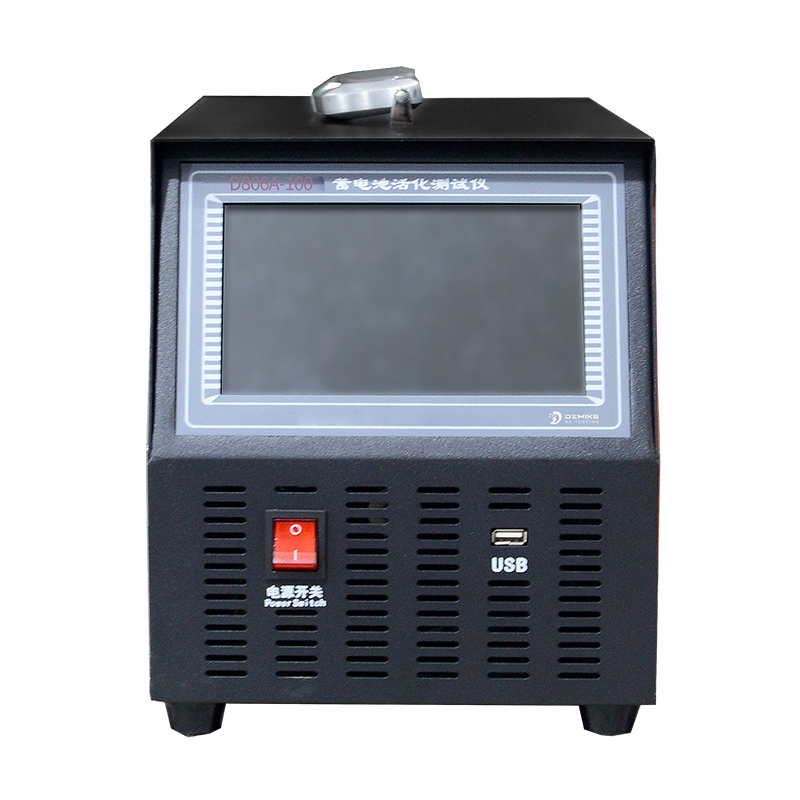

D806A Accumulator Cell Intelligent Activator-1

D806A Accumulator Cell Intelligent Activator-2

D806A Accumulator Cell Intelligent Activator-3

D806A Accumulator Cell Intelligent Activator-4

Category	Specification
Test Functions	Constant current discharge, capacity analysis, constant voltage/current charging, cyclic activation
Model	2V/6V/12V
Charging Voltage Range	DC 1.5V~15V
Charging/Discharge Current Range	2V: 1100A, 6V: 160A, 12V: 1~30A
Display Function	7” LCD touch screen, resolution: 1024x800
Voltage Measurement Range	±0.5%FS+0.01V
Current Measurement Range	±1%FS+0.1A, max measuring range: 100A
Single Cell Voltage Display Accuracy	0.01V
Current Display Accuracy	0.01A
Data Storage Capacity	Built-in: 16Gbit FLASH; External: 16G storage
Data Communication	USB*1
Working Modes	Constant current, constant power, constant voltage, cyclic activation, parallel/slave control
Protection Performance	LCD alert + buzzer alarm
Host Protection	Over temperature, over current, current out of control trigger shutdown
Reverse Connection Protection	Acoustic and optical alarm for polarity connection
Over-Temperature Protection	Stops discharging if temperature exceeds 75℃
Heat-Dissipating Method	Forced air cooling
Temperature	Working: -550℃, Storage: -4070℃
Humidity	Relative humidity: 0~90% (40±2℃)
Altitude	Rated altitude ≤4000 m
Working Power	Voltage: Single-phase three-wire system: 220V AC (–20%+30%), Frequency: 4565Hz
Voltage Withstand Test	Input to housing: 2200V DC 1min; Output to housing: 700V DC 1min
Safety	Meets EN610950, GB/T 31484-2015 battery maintenance technical specifications
Overall Dimension	390215290mm
Weight	13kg
Remark	Includes moisture-proof aluminum alloy rod box; custom voltage/current levels available upon request
