Battery Test Equipment

Test equipment for Battery Management Systems (BMS), including simulators, fault insertion units, and HIL (hardware-in-the-loop) systems, evaluates the BMS by emulating battery cells, exercising command and communication protocols, and verifying safety mechanisms under normal and fault conditions.

Simulates batteries by emulating charge and discharge cycles, which allows accurate testing of devices under different states and conditions of a battery.

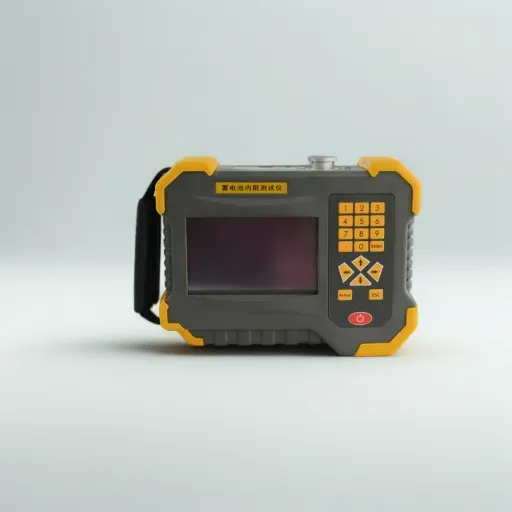

Monitoring metrics such as voltage, capacity, and internal resistance of lithium batteries requires measurement apparatus that tests their health, performance, and safety.

Testing equipment for lead-acid batteries serves to analyze their condition, functionality, and safety by gauging internal resistance, voltage, and capacity, frequently in an in-service setting.

Through the use of multimeters, hydrometers, and load testers, deep cycle battery test equipment evaluates the performance, charge capacity, and overall health of deep cycle batteries, thus ensuring reliable power delivery over the long term.

A battery has seven major parts – positive electrode (cathode), negative electrode (anode), electrolyte, separator, terminals, and the casing with current collectors.

Standards for battery testing, as with IEC 60086, outline criteria of the size, functionality, safety, and environmental factors which need to be considered for the battery to permit cross acceptance as well as standard compliance.

To assess the voltage of your vehicle’s battery, properly set a multimeter to measure direct current voltages. Touch the red probe to the positive terminal and the black probe to the negative terminal. For a fully charged car battery, the reading ought to be approximately 12.6 volts.

To assess your phone’s battery health, access the “Settings” app where you will either see “Battery” or “Battery Health” depending on your device as the next option. There, , you may review the indicated metrics such as maximum capacity and performance analytics.

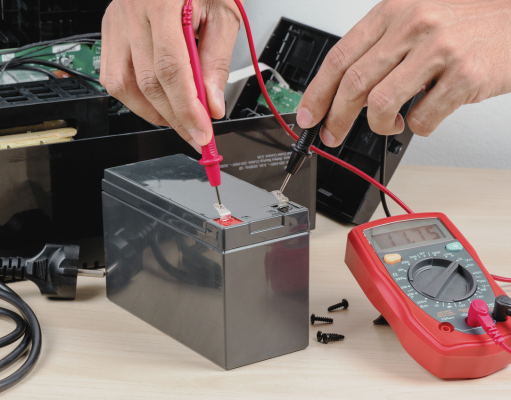

In a multimeter’s testing procedure, set it to test for DC voltage first. Attach the red probe to the positive terminal and black probe to the negative terminal. Check if the reading meets or surpasses the rated voltage of the battery.
