Top Accumulator Charge Tester Manufacturers and Suppliers in China

Accumulator Charge Tester

DEMIKS/Accumulator Charge Tester is widely acclaimed as one of the leaders and suppliers located in China. Our automatic testers have great accuracy, precision, and long-lasting endurance. Our products are tailor-fitted for your needs in automotive, industrial, energy, or any other sector.

D805D-100A 48V

Capacity: Enabled to support 25 collection boxes, meaning that up to 300 batteries can be monitored.
PC Software: Provides data analysis, report generation, and performance curve visualization.
User Interface: Incorporates ARM control, 7 inch HD touchscreen, and bilateral language menus.
Safety Features: Overtemperature, voltage, overcurrent, and reverse alarm protections are provided.
Display: Voltage levels are highlighted and displayed in color in sliding tables/charts.
USB Port: Allows data storage and transfer to a PC for analysis.

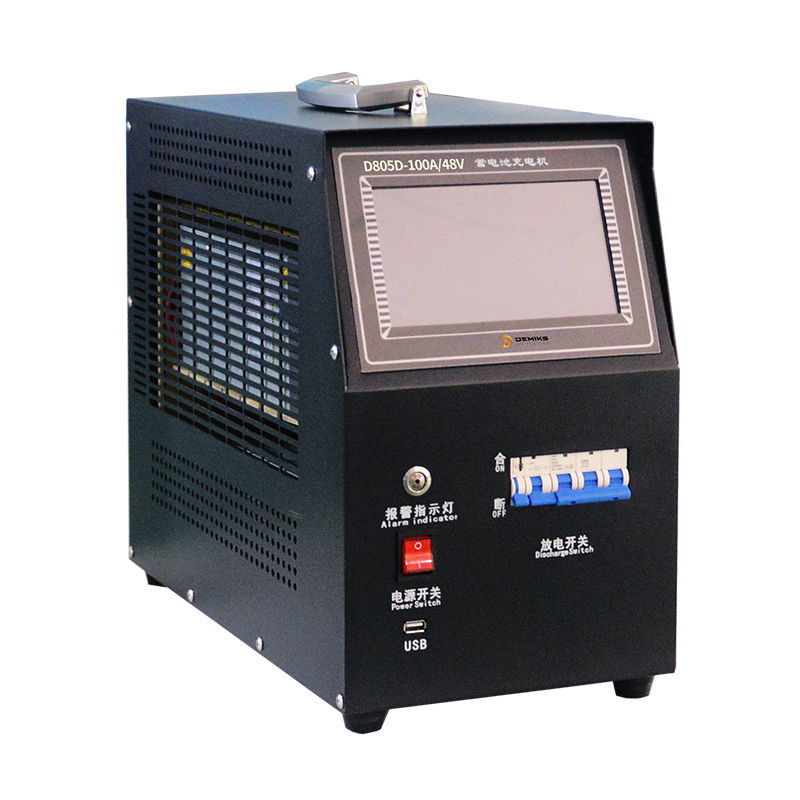

Accumulator Charge Tester-1

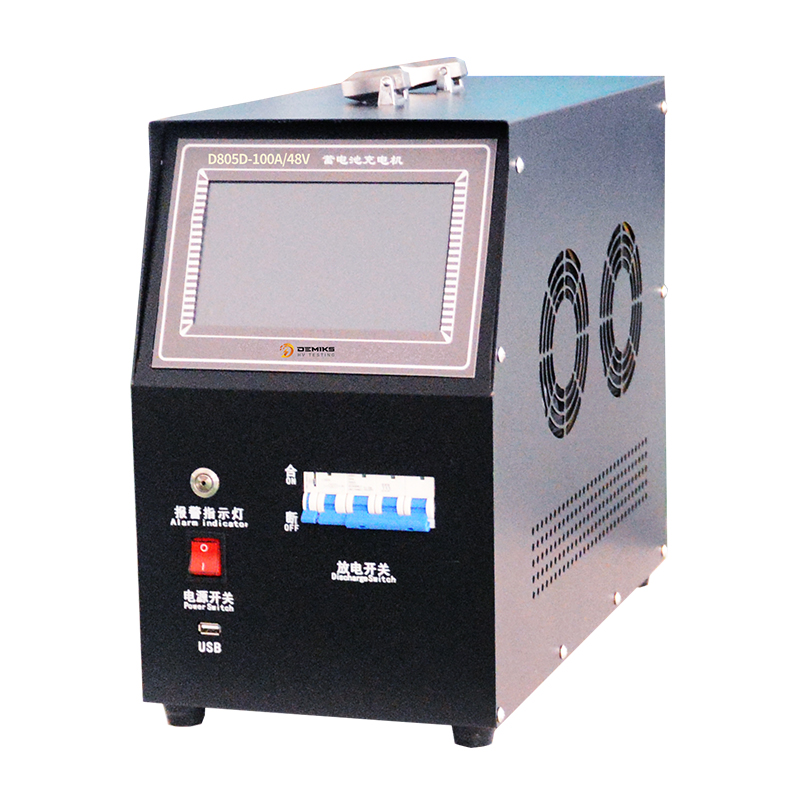

Accumulator Charge Tester-2

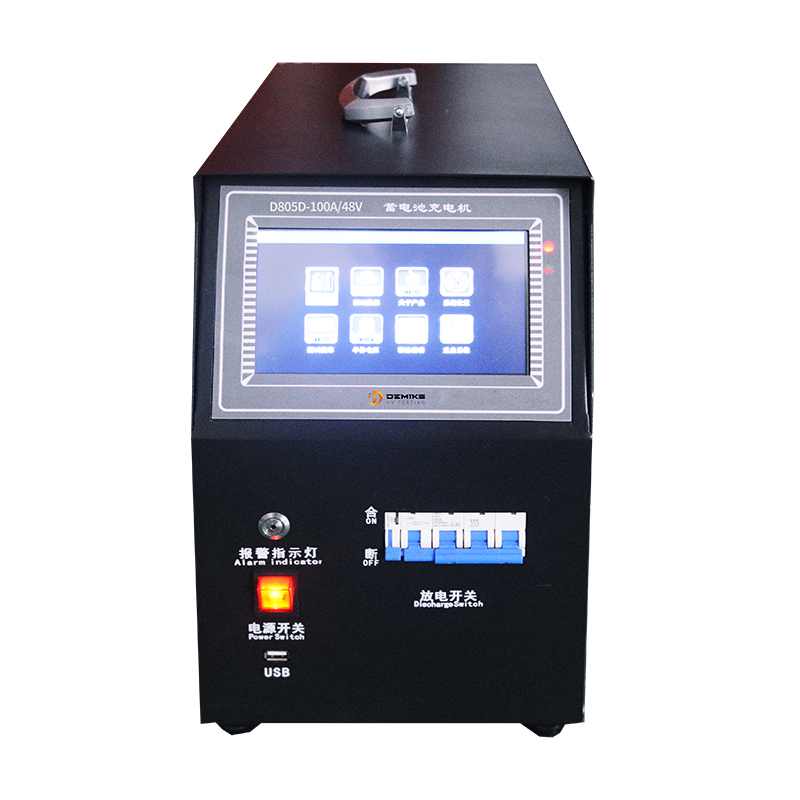

Accumulator Charge Tester-3

Accumulator Charge Tester-4

Accumulator Charge Tester-5

Applicable Battery	DC48V
Charge Voltage	DC42V-60V
Charge Current	100A
Working Mode	Single machine mode, parallel host mode, parallel slave mode, remote controlled mode
Protection Capacity	Battery test voltage over-voltage protection, under-voltage shutdown, over-current protection, reverse protection, 65℃ over-temperature protection, and has LCD warning, buzzer alarm
Single cell voltage acquisition (optional)	The use of multi-band radio frequency wireless module, communication distance up to 100 meters, compatible with 2V/4V/6V/12V single battery voltage monitoring, 1 to 25 groups of radio frequency wireless monitoring module, up to 300 batteries can be monitored, a single wireless monitoring module can monitor 12 single batteries.
Control accuracy	Charging current ≤±1%(FS); Group terminal voltage ≤±0.5%(FS); Single cell voltage: ≤±0.1%(FS)
PC communication	RS485 interface, USB interface, RF radio frequency communication 433M
Data storage capacity	Built-in SD card 16G capacity, transfer to U disk 16G capacity
Working Environment
Dissipate heat	forced air cooling
Temperature	Operating range: -5 ~ 50℃ ,Storage temperature: -40 ~ 70℃
Humidity	Relative humidity 0~90% (40±2℃)
Altitude	Rated at 4000 meters above sea level
Noise	<75dB
Working Power
Voltage	Power supply: single-phase AC220V (-20% ~ +30%), frequency :45 ~ 65Hz;
	Charging power supply: refer to the nameplate parameters or chassis identifier
Voltage withstand test	Input to housing: 2200V DC 1min
	Input to output: 2200V DC 1min
	Output to housing: 700VDC 1min
Safety	Conform to EN610950
Wire Connection
AC input	National standard male socket, suitable for 1 ~ 1.5mm2 cable

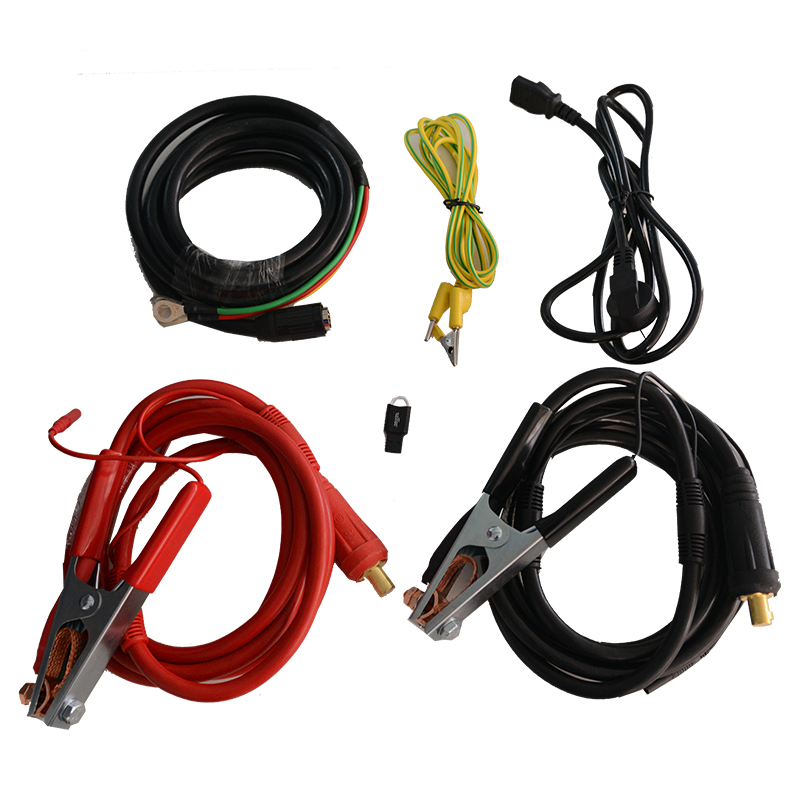

Charging current cable	Cable quick connector (red positive black negative), specific size refer to "Packing list"

Accumulator Charging Kit: How to Charge and Gauge Your Hydraulic Accumulator

This document aims to explain in detail the process for charging and gauging hydraulic accumulators, underscoring safety protocols. Whether addressing pressure faults or performing routine checks, this document will serve as a source of information for all required technical details.
