Top Battery Internal Resistance Tester Manufacturers and Suppliers in China

Battery Internal Resistance Tester

Our Internal Resistance Tester for Batteries are built using advanced sophiscated techniques which enables us to achieve precision on every test. Whatever your battery testing needs are, we at DEMIKS have the solution. For the best value and additional details, reach out to us today.

Accumulator Internal Resistance Tester Applications

User-Friendly Touchscreen Operation: The tester incorporates color resistance touch screen which can be operated through finger or touch pen for ease and convenience.
Comprehensive Battery Testing: It quickly and precisely assesses the main parameters of a battery, such as voltage and internal resistance.
Data Management and Analysis: This instrument has the capability to store, query, delete, and export tested data, and with upper computer software, data can be analyzed, charted, and automatic battery test reports issued.

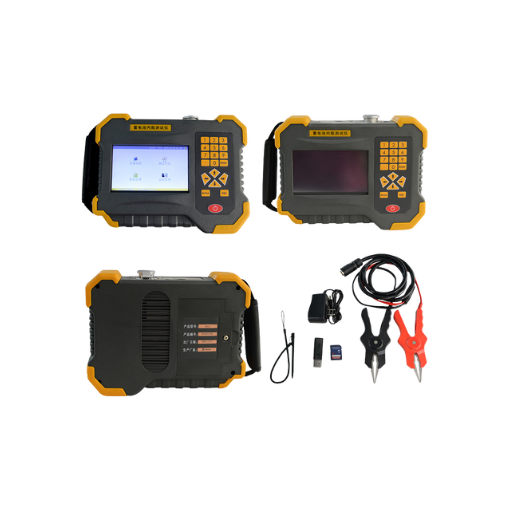

D801 Battery Internal Resistance Tester Features

Dual Operation Modes: Both a button and touchscreen interface for user flexibility.
Oscilloscope Capability: Real-time display of voltage and ripple details (optional).
Long-lasting Power: Prolonged usage is supported by a high-capacity lithium battery.
Test Functions: Good/bad battery analysis and retests can be graphed.
Comprehensive Data Storage: Accessible internal and external memory can save up to 999 test sets which can also be analyzed.
Enhanced Safety Features: Current and voltage cut-off protections ensure system reliability.

Specification	Details
Measurement Range	Internal resistance:0.000mΩ-99.999mΩ
	Voltage: 0.000V - 25V
Minimum Measurement Resolution	Internal resistance:0.001mΩ
	Voltage: 1mV
Measurement Accuracy	Internal resistance:±0.5%rdg 　±6dgt
	Voltage:±0.2%rdg　 ±6dgt
Power Supply	12V, rechargeable lithium-ion battery
Power Consumption	Standby for 8 hours
Memory Capacity	64Mbit Flash + 8G SD card
Display	5-inch color touch screen
Dimension	220 x 170 x 52mm
Weight	1.1Kg

Mastering the Art of Measuring Battery Internal Resistance: Different Methods Explained

Evaluating performance, efficiency, as well as health in various fields like electronics and electric vehicles requires understanding internal resistance of the battery.
