Introduction
Insulated bucket trucks are core special vehicles for live-line working on 10kV and 35kV distribution power networks. Equipped with FRP fiberglass reinforced epoxy insulated booms and insulated buckets, they achieve electrical isolation between operators and the ground, enabling non-power-outage operations such as overhead line emergency repair, lead wire connection, and insulator replacement.
After long-term exposure to sunlight, rain, mechanical collision, oil pollution and humid working environments, insulated components will develop hidden aging, micro-cracks and surface contamination — defects that cannot be identified by visual inspection alone. These invisible hazards easily cause flash-over, insulation breakdown and fatal electric shock accidents during live-line operations.
In accordance with GB/T 37556-2019 and DL/T 877 industry standards, all in-service insulated bucket trucks must undergo annual preventive insulation testing. Professional power frequency withstand voltage tests are mandatory to verify insulation performance and ensure construction safety.
DEMIKS POWER (www.demikspower.com) is a professional manufacturer of high-voltage power testing equipment. We provides integrated power frequency withstand voltage test solutions tailored for insulated bucket trucks, covering full dielectric testing of insulated booms and buckets. Compliant with national and IEC international standards, our testing systems help power enterprises and third-party testing institutions complete standardized bucket truck safety inspections efficiently.
- Core Electrical Safety Test Items for Insulated Bucket Trucks
Bucket truck safety inspection includes visual mechanical inspection and professional electrical dielectric testing. Among them,power frequency withstand voltage test and leakage current test are the decisive indicators for judging insulation qualification, with a standard preventive test cycle of 12 months (6 months for high-frequency harsh working conditions).
1.1 Visual Pre-Inspection
Check insulated booms and buckets for surface cracks, scratches, burn marks, oil contamination, aging discoloration and liner damage. It is worth noting that intact appearance does not represent qualified insulation. Most internal micro-defects can only be detected through high-voltage withstand voltage tests, and visual inspection only serves as preliminary screening.
1.2 Insulated Boom Power Frequency Withstand Voltage Test (Core Item)

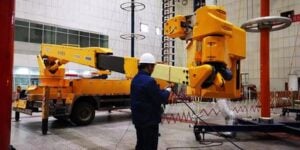

Test objects: upper and lower insulated booms of the bucket truck. Place the boom in a standard test posture with professional test electrodes arranged. Apply standard power frequency AC voltage for 1 minute withstand test. The test result is qualified if no breakdown, flash-over or local overheating occurs, with real-time leakage current monitoring. The preventive test voltage for 10kV bucket trucks is 45kV, and the handover test voltage is 50kV.
1.3 Insulated Bucket Layer & Surface Withstand Voltage Test
– Layer Withstand Voltage Test: Adopt water injection or metal film electrodes to test the insulation strength in the thickness direction of the bucket, verifying the overall dielectric performance of the double-layer insulated structure.
– Surface Creepage Withstand Voltage Test: Test the surface insulation performance with standard electrode spacing and monitor surface leakage current to eliminate flashover risks caused by surface pollution and moisture.
1.4 High-Precision Leakage Current Test
Many insulation aging problems will not cause direct breakdown, but will lead to a significant increase in leakage current, which is a key early warning signal of insulation failure. DEMIKS POWER test systems are equipped with high-voltage side microampere-level leakage current acquisition modules, which can record real-time voltage-current curves, track insulation performance changes, and provide accurate data support for equipment life judgment.
1.5 Insulation Resistance Test
Use a high-voltage megohmmeter to measure the insulation resistance of key components as an auxiliary reference index for comparing insulation performance changes before and after the test.
1.6 Vehicle Integrated Insulation Verification
Simulate the actual working posture of the bucket truck to conduct a comprehensive insulation test on the entire insulating lifting system, eliminating hidden insulation defects at metal connectors and sealing parts.
- Necessity of Regular Dielectric Testing for Insulated Bucket Trucks
2.1 Eliminate Fatal Live-Line Operation Risks
Most bucket truck safety accidents stem from hidden insulation degradation rather than mechanical failure. Invisible micro-cracks, moisture penetration and oil contamination erosion will gradually cause surface flash-over and insulation breakdown under operating voltage, directly endangering the lives of on-site operators. Regular power frequency withstand voltage tests simulate extreme high-voltage operating conditions to expose potential insulation defects in advance and avoid on-site safety accidents.
2.2 Meet Industry Compliance & Mandatory Safety Standards
Insulated bucket trucks belong to special live-line working equipment with mandatory periodic testing requirements specified by power industry safety regulations. Equipment without valid dielectric test reports is prohibited from live-line operations. Regular testing helps enterprises pass safety supervision inspections and avoid compliance risks and safety liability problems.
2.3 Predict Aging & Extend Equipment Service Life
Insulation aging of FRP materials is a gradual cumulative damage process. Through annual withstand voltage and leakage current data comparison, maintenance personnel can accurately judge the aging trend of insulating components, complete targeted maintenance and replacement in advance, and reduce equipment procurement and operation costs.
2.4 Support Factory Handover & Third-Party Inspection
New truck delivery acceptance, rental equipment entry inspection and third-party professional testing all require standardized, traceable high-voltage test data and formal test reports. Complete dielectric testing is an essential link for equipment qualification certification.
- DEMIKS POWER Power Frequency Withstand Voltage Test System: Professional Solution for Bucket Truck Testing
DEMIKS POWER high voltage power frequency withstand voltage test equipment (www.demikspower.com) is specially developed for high-voltage insulation testing of power tools and live-line working equipment. It perfectly adapts to field mobile testing and laboratory fixed testing scenarios, fully complying with IEC60060-1 and domestic power industry standards.
3.1 Full-Automatic Intelligent Control & Multi-Protection System
The equipment supports smooth zero-start voltage regulation with manual and automatic dual modes. It is equipped with over-voltage, over-current and flash-over instantaneous protection functions. Once insulation breakdown or flash-over occurs, the system cuts off the output instantly to protect testing personnel and test samples, ensuring safe and stable operation in complex field environments.
3.2 High-Precision Leakage Current Acquisition
Adopting high-voltage side direct measurement technology, it effectively eliminates corona interference in low-side measurement, realizes microamp-level accurate monitoring of leakage current, and solves the industry pain point of difficult accurate detection of bucket truck surface creepage current.
3.3 Wide Compatibility for Full-Item Testing
Matched with professional insulated boom test electrodes and bucket water injection test tooling, one set of equipment can complete all test items including boom withstand voltage, bucket layer insulation and surface insulation testing. It also supports the testing of insulating rods, insulating gloves and other power safety tools, greatly improving equipment utilization.
3.4 Standardized Automatic Report Generation
After the test is completed, the system automatically generates professional test reports with complete data such as test time, voltage value and leakage current. Reports support PDF export and printing, which is convenient for enterprise filing, safety supervision inspection and third-party certification.
3.5 Industrial-Grade Quality for Global Applications
The test transformer adopts partial-discharge-free design with stable voltage output and low waveform distortion. Our equipment is widely used in domestic power grid projects and exported to Southeast Asia, Central Asia, Africa and other overseas markets, supporting English operation documents and global after-sales service.
Model Selection Suggestion: The 100kV power frequency withstand voltage test set is the standard model for 10kV insulated bucket truck testing. For 35kV high-grade bucket trucks, DEMIKS POWER provides customized high-voltage testing solutions according to actual working conditions.
- Conclusion
The core safety of insulated bucket trucks lies in insulation performance, not mechanical integrity. Regular power frequency withstand voltage tests and leakage current detection are not formal procedural work, but the key safety barrier to prevent insulation breakdown and protect the life of live-line operators.
For power grid operation and maintenance teams, live-line working enterprises and third-party power testing institutions, DEMIKS POWER provides one-stop professional dielectric testing solutions for insulated bucket trucks. Reliable testing equipment and standardized technical support help you eliminate hidden safety hazards and meet industry compliance requirements.
Visit our official website www.demikspower.com for detailed equipment parameters and customized testing solutions.
FAQs for the bucket truck AC Hipot withstand test
Q1: How often should a bucket truck undergo dielectric testing?
A: According to GB/T 37556-2019 and DL/T 976 standards, the preventive power frequency withstand voltage test cycle is 12 months. For bucket trucks used frequently in harsh environments, the test cycle is recommended to be shortened to 6 months. Newly purchased equipment must pass handover dielectric testing before put into operation.
Q2: Can visual inspection replace professional withstand voltage testing?
A: No. Visual inspection can only check surface damage, while internal micro-cracks, material aging and hidden moisture of FRP insulating structures cannot be identified by eyes. Only high-voltage power frequency withstand voltage tests can simulate actual operating overvoltage conditions and detect potential insulation failures.
Q3: Why is leakage current test important for bucket truck testing?
A: Insulation aging usually causes increased leakage current before breakdown and flashover occur. Monitoring real-time leakage current changes can effectively judge early insulation performance degradation and predict potential failure risks in advance.
Q4: What equipment is used for insulated bucket truck dielectric testing?
A: Professional power frequency AC withstand voltage test sets with smooth voltage regulation, flashover protection and high-precision leakage current acquisition functions are required. DEMIKS POWER high voltage test system fully covers all standard test items for insulated bucket truck booms and buckets.
